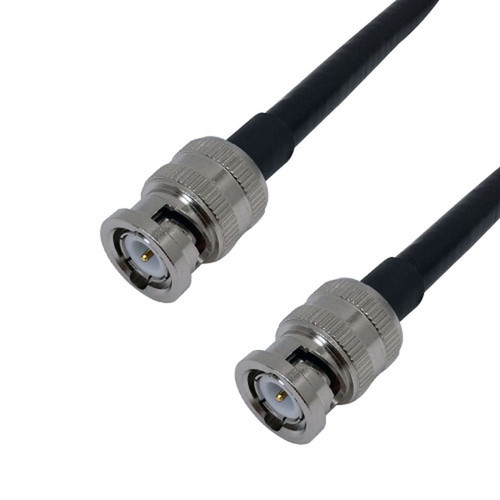

Belden 4694R 12G HD-SDI RG6 BNC Male to BNC Male Cable - 3ft
Belden 4694R 12G HD-SDI RG6 BNC Male to BNC Male Cable - 3ft
Belden 4694R 12G HD-SDI RG6 BNC Male to BNC Male Cable - 3ft
Belden 4694R 12G HD-SDI RG6 BNC Male to BNC Male Cable - 3ft

Belden HD-SDI BNC Male To Cable For High Definition Video Applications FN-SDI-B12G-03

SKU: FN-SDI-B12G-03
(No reviews) Write a Review
MSRP: $28.95
$28.95
$25.95
Save: $3.00 (10.36%)
Warranty Information: Covered by Manufacturer
Condition: New
Width: 5.00 (cm)
Height: 0.25 (cm)
Depth: 4.00 (cm)
Availability: Stock in Canada - Purolator or UPS
Adding to cart… The item has been added
Logo cards
B2B Pricing

Business volume discounts

IT Experts

Technical guidance

IT Configuration

Preparation & staging

Canada Stock

QC · ON · AB · BC

Product Features

Description

Overview

This HD-SDI 12GHz RG6/U precision serial digital video coaxial cable consists of 12GHz BNC male connectors on both ends. It is typically used to connect professional HDTV video equipment such as DSLR cameras and monitors.

Shielded Cable Construction

This is a constructed shielded 75 ohm 12GHz RG6/U solid 18AWG cable.
The cable jacket is riser rated (CMR/FT4) and it is a dual shielded cable (100% foil and 95% braid).

Maximum Resolution and High Quality Signal

The cable is 12GHz and can offer a maximum resolution of 4K Ultra HD; it optimizes connectivity and maintains a clear signal integrity.

Application

Specifications

Physical Characteristics
Color Black
Cable Diameter 6.9mm
Connector Plating Nickel
Contact Plating Gold
Cable Type RG6/U 75 Ohm 12GHz
Cable Shielding 100% Aluminum Foil + 95% Tinned Copper Braid
Wire Gauge 18AWG Solid
Jacket Material PVC
Insulation Material Gas-Injected FHDPE - Foam High Density Polyethylene
Fire Rating CMR/FT4
Operating Temperature -30°C to +75°C
Maximum Pulling Tension 69 lbs
Minimum Bend Radius 2.75 inches
UV Resistance Yes
Performance
Maximum Resolution 4K UHD
Supports SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Nominal Impedance 75 Ohms
Return Loss
(Frequency -> Minimum Return)		 5 MHz - 1600 MHz -> 23db
1600 MHz - 4500 MHz -> 21dB
4500 MHz - 120000 MHz -> 15dB
Connector(s)
Connector A 1 - BNC 12GHz Male
Connector B 1 - BNC 12GHz Male
Certification
c(UL)us Yes - Bulk Cable
Environmental
RoHS Yes
Packaging Information
Package Quantity 1 - Cable
Warranty Information
Warranty Limited Lifetime
