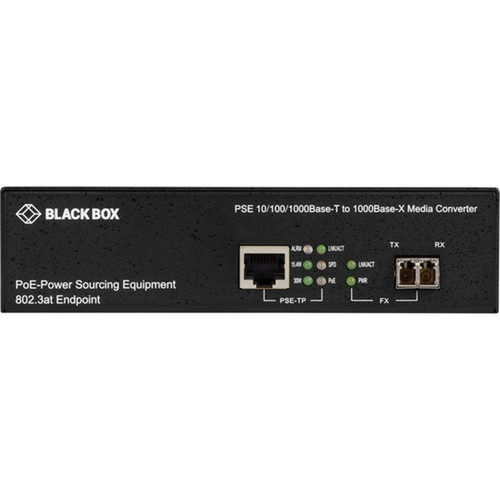

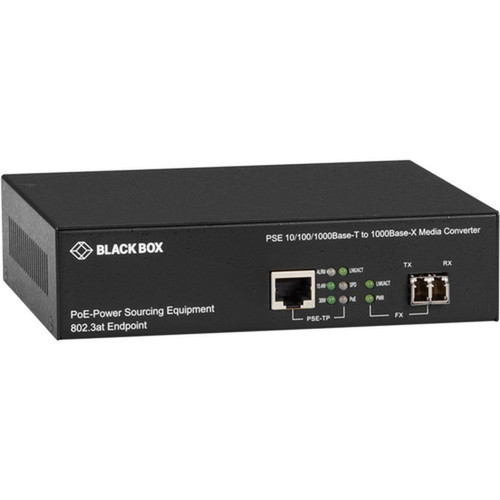

Black Box LPS500A-MM-LC-R3 Gigabit PoE PSE Media Converter - 10/100/1000Base-T to 1000Base-SX - 1x PoE RJ-45 - 1x Duplex LC Fiber - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Gigabit Ethernet speeds, supporting both 10/100/1000Base-T on the copper side and 1000Base-SX on the fiber side. The duplex LC fiber port ensures full-duplex communication, while the PoE PSE port complies with IEEE 802.3af/at standards for power delivery.
The device consumes 65 W from an AC power source, with environmental compliance including RoHS and WEEE directives. Its compact, wall-mountable design minimizes space requirements, and the 2-year warranty provides reliable support for network infrastructure deployments.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of PoE (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter integrates PoE power sourcing with media conversion, reducing the need for separate power injectors and simplifying cable runs. The wall-mountable form factor allows for tidy installations in telecom closets or industrial settings.
Extended Reach
Converts twisted pair to fiber for distances up to 0.55 km, overcoming copper limitations.
- Multi-mode fiber support
- 850 nm wavelength
- Full-duplex LC connector
PoE Integration
Includes a PoE PSE port to power connected devices, streamlining deployments.
- IEEE 802.3af/at compliant
- Reduces extra power equipment
- Ideal for IP cameras or APs
Deployment / Use Cases
Deploy this media converter to extend network segments beyond the 100-meter limit of twisted pair cabling. It is ideal for connecting buildings in a campus, linking industrial equipment in noisy environments, or integrating fiber backbones into existing copper networks.
Use cases include extending network coverage to remote security cameras with PoE, bridging fiber between floors in a building, or connecting network switches in data centers where fiber is required for distance or EMI protection. The wall-mount option keeps installations organized and secure.
Campus Network Extension
Connect buildings with fiber for longer distances and better signal integrity.
Industrial Networking
Use fiber to avoid electromagnetic interference in manufacturing or utility settings.
Physical Profile
The converter has a compact footprint measuring 6.20 inches wide, 5.20 inches deep, and 1.60 inches high, with a weight of 1.30 pounds. Its wall-mountable design includes mounting holes for secure installation, helping to manage cables and conserve rack or shelf space. The sturdy construction ensures durability in various environmental conditions.
- Width
- 6.20" (157.48 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 1.60" (40.64 mm)
- Weight
- 1.30 lb (589.67 g)
- Length
- 850 nm
Highlights
- Converts 10/100/1000Base-T twisted pair to 1000Base-SX fiber optic signals
- Includes 1 PoE PSE RJ-45 port for powering connected devices
- Features 1 duplex LC fiber port for multi-mode fiber at 850 nm wavelength
- Supports distances up to 0.55 km (0.34 mile) for extended network reach
- Wall-mountable form factor for organized installation
- Gigabit Ethernet technology for high-speed data transfer
- AC power source with 65 W consumption
- Compliant with RoHS and WEEE environmental standards
- 2-year limited warranty for reliable performance
- Compact dimensions: 6.20" W x 5.20" D x 1.60" H
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LPS500A-MM-LC-R3 |
| Brand Name | Black Box |
| Product Name | 10/100/1000B-T PoE PSE To 1000B-X Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | AC |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.60" (40.64 mm) |
| Width | 6.20" (157.48 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What does this media converter do?
This converter bridges copper and fiber network segments by converting 10/100/1000Base-T twisted pair Ethernet signals to 1000Base-SX fiber optic signals. It allows you to extend network distances beyond the 100-meter limit of copper cabling while maintaining Gigabit speeds and adding noise immunity through fiber.
What type of PoE does the RJ-45 port support?
The RJ-45 port is a PoE PSE (Power Sourcing Equipment) port, meaning it can deliver power to connected devices like IP cameras or wireless access points. It complies with IEEE 802.3af/at standards, providing up to 30W per port, which simplifies deployments by eliminating the need for separate power injectors.
What fiber type and distance does it support?
It supports multi-mode fiber with an 850 nm wavelength, using a duplex LC connector. The maximum supported distance is 0.55 kilometers (0.34 miles), making it suitable for campus or industrial applications where longer runs are required beyond typical copper limits.
How is this converter powered and installed?
The converter uses an AC power source with a consumption of 65 watts. It features a wall-mountable form factor, allowing for secure installation in telecom closets, server rooms, or industrial settings. Mounting holes are included for easy attachment, helping to organize cables and save space.
What are the key specifications for network compatibility?
It supports Gigabit Ethernet with network technologies of 10/100/1000Base-T on the copper side and 1000Base-SX on the fiber side. The media types include twisted pair and optical fiber, ensuring compatibility with standard Ethernet equipment and fiber infrastructure for seamless integration.
What warranty and compliance standards apply?
This product comes with a 2-year limited warranty, providing reliability for network deployments. It is environmentally compliant with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE), and it is manufactured in Taiwan, meeting industry standards for safety and sustainability.
