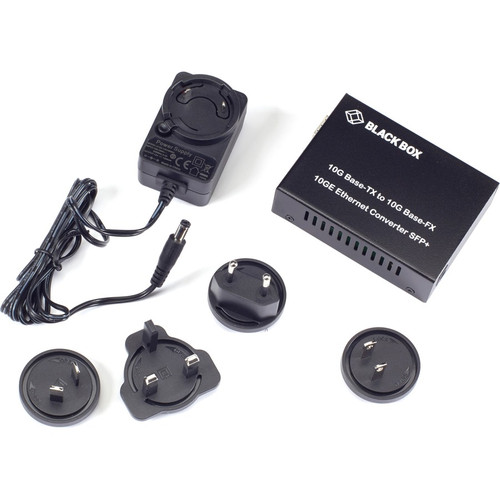

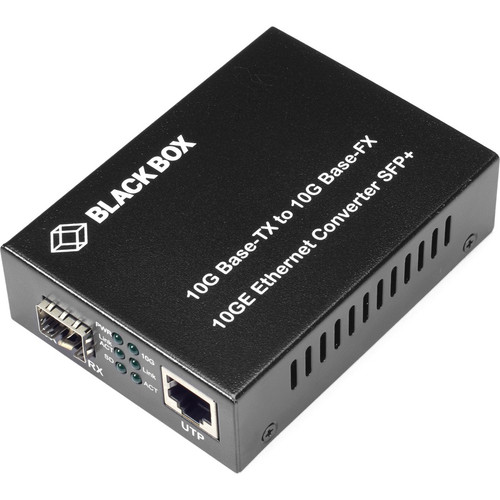

Black Box LGC220A 10GBASE-TX to 10GBASE-FX Media Converter - 1 x RJ-45 to Single/Multi-mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Pure Networking 10-Gigabit (10-Gbps) Media Converter
- 12-V DC Power Supply
- Power Cord
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Single-mode,Multi-mode
Maximum Distance Supported: 0.10 km (0.06 Mile)
Fiber Optic Cable Core/Cladding Specification: 50/125 µm,62.5/125 µm,8.3/125 µm,9/125 µm,10/125 µm
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-T,10GBase-FX
Power Source: AC Adapter
Power Consumption: 12 W
Plug/Connector Type: Barrel
Form Factor: Standalone
Height: 1" (25.40 mm)
Width: 3.70" (93.98 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 11.20 oz (317.51 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Limited Warranty: 3 Year
- Smoothly converts 10GBASE-T to 10GBASE-R
- Designed with a 10GBASE Ethernet PHY chip that easily connects two types of segments
- 12V DC power supply
- RJ45 port type and a SFP slot
- Standards include 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-X, 2500BASE-X, 5GBASE-R and 10GBASE-R
- Standalone media converter (not to be used with chassis)
- Works as a mode converter, not a rate converter.
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC220A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Pure Networking |
| Product Name | 10GBASE-TX to 10GBASE-FX Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode,Multi-mode |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm,8.3/125 µm,9/125 µm,10/125 µm |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-FX |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 12 W |
| Plug/Connector Type | Barrel |
| Physical Characteristics | |
| Form Factor | Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.70" (68.58 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
