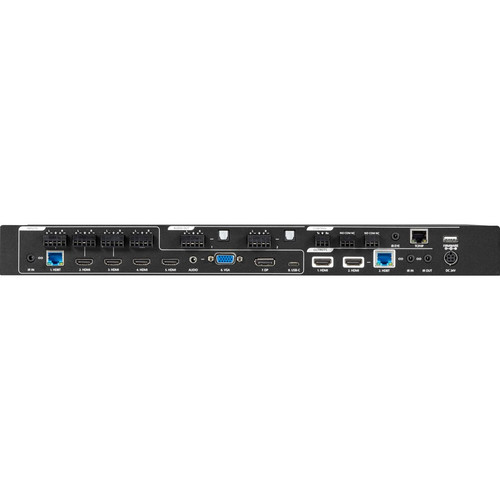

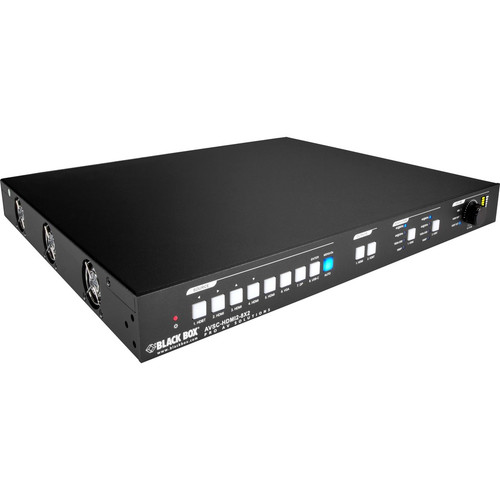

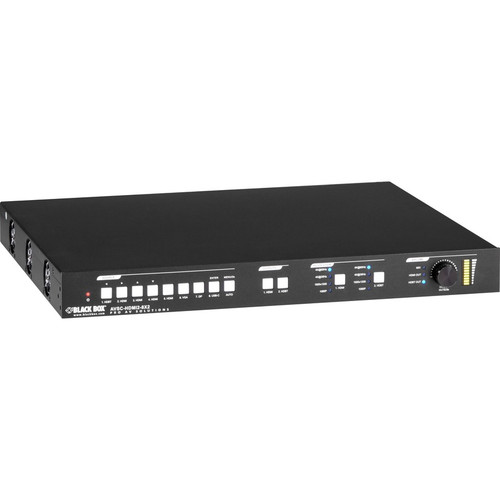

Black Box AVSC-HDMI2-8X2 8 x 2 Video Matrix Switcher - 18G Seamless Switching - HDMI 2.0 - 4K - Twisted Pair - 8 Inputs - 2 HDMI Outputs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AVSC-HDMI2-8X2 delivers high-bandwidth video switching with support for 4K resolution at 60 Hz, 1080p, and 1920 x 1200p. Its 18G switching engine ensures seamless transitions between sources without interrupting the video stream. The matrix supports automatic switching, which detects active sources and routes signals accordingly.
Video processing includes down-scaling and up-scaling capabilities, allowing you to match output resolution to display capabilities. For extended reach, the unit uses twisted pair cabling (CATx) with visually lossless compression, transmitting 4K signals up to 131 feet (40 meters) and 1080p up to 229 feet (70 meters).
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This video matrix switcher simplifies complex AV setups by consolidating multiple source signals into a centralized switching solution. Its robust feature set ensures reliable performance in demanding commercial and institutional applications.
Extended Distance over CATx
Leverage existing twisted pair infrastructure to transmit high-definition video over long distances without signal degradation, reducing cable costs and installation complexity.
- 4K up to 131 feet (40 meters)
- 1080p up to 229 feet (70 meters)
- 24V PoC support on CATx ports
Flexible Input Compatibility
Connect a wide range of source devices with HDMI, VGA, and DisplayPort inputs, accommodating both modern and legacy equipment in the same system.
- 4 HDMI inputs
- 1 VGA input
- 1 DisplayPort input
Professional Control Options
Manage switching operations via the included IR remote, IR receiver, or terminal blocks for integration with third-party control systems.
- IR remote included
- IR receiver for extended control
- Terminal blocks for dry contact closure
Deployment / Use Cases
The AVSC-HDMI2-8X2 is ideal for environments requiring dynamic source switching and signal distribution to multiple displays. Its rack-mount design and comprehensive connectivity make it a practical choice for integrated AV systems.
In corporate boardrooms, this matrix switcher allows presenters to switch between laptops, document cameras, and video conferencing systems without manual cable swapping. For digital signage networks, it enables centralized control of content across two displays, with the ability to scale resolution for optimal viewing.
Meeting Room AV
Consolidate multiple presentation sources and route them to primary and secondary displays with seamless switching, enhancing collaboration and presentation fluidity.
Control Room Monitoring
Distribute critical video feeds from various inputs to two monitoring displays, ensuring operators have access to essential visual data without interruption.
Physical Profile
Designed for standard 19-inch rack installation, this matrix switcher features a compact 1U height profile. Its dimensions of 17.10" width, 14" depth, and 1.70" height ensure compatibility with most rack enclosures. The unit weighs approximately 2.99 kg and includes mounting ears, screws, and plastic cushions for secure, vibration-resistant mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 17.10" (434.34 mm), 14" (355.60 mm), 2.99 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.10" (434.34 mm)
- Depth
- 14" (355.60 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.99 kg
What's in the Box
The package includes all necessary components for immediate deployment and integration.
Highlights
- 8x2 video matrix switcher with 18G seamless switching
- HDMI 2.0 and HDCP 2.2 compliant for 4K @ 60 Hz support
- Twisted pair (CATx) connectivity with 24V PoC
- Extended transmission up to 229 feet at 1080p
- Mix of HDMI, VGA, and DisplayPort inputs
- Rack-mountable 1U form factor
- Includes IR remote and receiver for flexible control
- 2-year limited warranty and RoHS/WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVSC-HDMI2-8X2 |
| Brand Name | Black Box |
| Product Model | AVSC-HDMI2-8X2 |
| Product Name | 8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0 |
| Packaged Quantity | 1 |
| Product Condition | New |
| Product Type | Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 4K |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| DisplayPort | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 3 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 2 |
| Number of VGA Inputs | 1 |
| Number of DisplayPort Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 229.66 ft (70000 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 14" (355.60 mm) |
| Weight (Approximate) | 2.99 kg |
| Miscellaneous | |
| Package Contents | 8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0 2 x Mounting Ears With (6) Screws 4 x Plastic Cushions 1 x IR Remote 1 x IR Receiver 3 x 3-pin Terminal Blocks 7 x 5-pin Terminal Blocks 1 x Power Adapter (24 VDC, 6 A) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many devices can I connect to this switcher?
This matrix switcher supports up to eight input devices, with specific ports including four HDMI inputs, one VGA input, and one DisplayPort input. It routes signals to two independent HDMI outputs, allowing flexible distribution to multiple displays.
What type of cabling is required for extended distance transmission?
For long-distance video transmission, the switcher uses twisted pair cabling (CATx), such as CAT5e, CAT6, or higher. It supports 24V Power over CATx (PoC), delivering 4K video up to 131 feet and 1080p up to 229 feet with visually lossless compression.
Is this matrix switcher rack-mountable?
Yes, the AVSC-HDMI2-8X2 is designed for standard 19-inch rack installation with a 1U height profile. The package includes mounting ears, screws, and plastic cushions for secure mounting in rack enclosures, making it suitable for professional AV installations.
What control options are available for switching between sources?
You can control the matrix switcher using the included IR remote, IR receiver for extended range, or terminal blocks for integration with third-party control systems. It also supports automatic switching, which detects active sources and routes signals without manual intervention.
Does this product come with a warranty?
The Black Box AVSC-HDMI2-8X2 includes a 2-year limited warranty. It is also compliant with environmental standards such as RoHS and WEEE, ensuring responsible manufacturing and disposal practices.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
