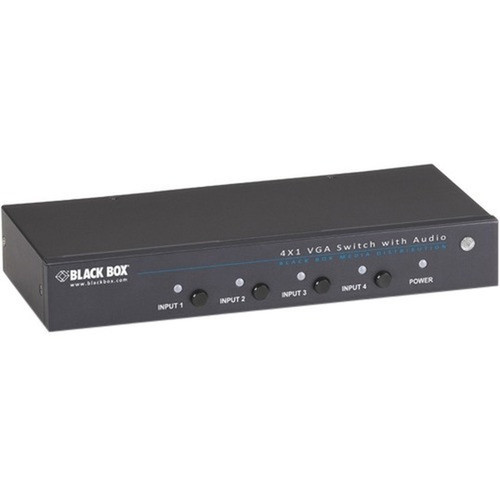

Black Box AVSW-VGA4X1A 4 x 1 VGA Switch with Serial and Audio - 1920 x 1440 Resolution - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This VGA switch employs cable-based connectivity technology, featuring four VGA inputs and one VGA output to handle video signals from sources like computers, media players, or cameras to a single display device. The serial control interface enables integration with control systems using standard DB9 connections, with an included adapter for 1.7mm barrel connectors to simplify setup.
The switch supports a maximum video resolution of 1920x1440, accommodating both standard and high-definition VGA sources. Its rack-mountable form factor with dimensions of 1.30" H x 8.60" W x 3.90" D allows for neat installation in AV racks, while the approximate weight of 680.4 grams ensures lightweight yet durable construction.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AVSW-VGA4X1A simplifies AV setups by centralizing control of multiple VGA sources, reducing cable clutter and manual intervention. Its serial control capability allows for seamless integration with automation systems, enabling scheduled switching or remote operation via control panels or software.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Resolution Support, Rack-Ready Design.
High-Resolution Support
Delivers up to 1920x1440 resolution, ensuring sharp video quality for presentations and displays using VGA interfaces.
- Compatible with projectors and monitors
- Maintains signal integrity across switching
Rack-Ready Design
Includes rackmount ears and screws for secure installation in standard AV racks, optimizing space in equipment rooms.
- Low-profile 1.30" height
- Rubber feet for desktop use optional
Deployment / Use Cases
Ideal for environments where multiple VGA sources need to be routed to a single display, such as conference rooms, classrooms, retail signage, or control centers. The switch's serial control feature supports automated switching scenarios, like rotating content across digital signs or selecting inputs based on scheduling systems.
Common applications include connecting multiple PCs to a shared projector in meeting spaces, managing video feeds from surveillance cameras to a monitoring display, or integrating legacy VGA equipment into modern AV systems with centralized control. The rack-mount design suits permanent installations in equipment racks, while the included rubber feet allow for temporary desktop deployment.
Presentation Systems
Switch between laptop, document camera, and media player inputs on a projector or large display with audio-video synchronization.
Digital Signage Control
Manage content from multiple sources on a single display, using serial commands for automated input selection.
Physical Profile
The switch features a compact, rack-mountable enclosure with a brushed metal or durable plastic finish, designed for both professional rack installations and standalone use. Its dimensions of 1.30" H x 8.60" W x 3.90" D provide a low-profile footprint that conserves rack space, while the included rackmount ears and screws ensure secure mounting. The lightweight construction at 680.4 grams facilitates easy handling during setup, and rubber feet are included for stable placement on desks or shelves when not rack-mounted.
- Width
- 8.60" (218.44 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 680.4 g
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-box experience.
Highlights
- 4x1 VGA switching for connecting multiple sources to one display
- Serial control interface for automated or remote operation
- Supports audio alongside video signals
- Maximum resolution of 1920 x 1440 for sharp video quality
- Rack-mountable design with included rack ears
- Compact dimensions: 1.30" H x 8.60" W x 3.90" D
- Includes power supply and necessary adapters
- 3-year limited warranty for reliable performance
- Environmentally friendly construction
- Suitable for projectors and displays
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVSW-VGA4X1A |
| Brand Name | Black Box |
| Product Name | 4 x 1 VGA Switch With Serial And Audio |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Projector,Display |
| Number of Displays Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 4 |
| Number of VGA Outputs | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.30" (33.02 mm) |
| Width | 8.60" (218.44 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 680.4 g |
| Miscellaneous | |
| Package Contents | 4 x 1 VGA Switch With Serial And Audio 1 x Power Supply 4 x Rubber Feet 1 x Serial DB9 to 1.7-mm Barrel Adapter 2 x Rackmount Ears With Screws User Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the switching configuration of this VGA switch?
This is a 4x1 VGA switch, meaning it has four VGA inputs that can be routed to one VGA output. It allows you to connect up to four source devices, such as computers or media players, to a single display or projector, with the ability to switch between them manually or via serial control.
Does this switch support audio along with video?
Yes, the Black Box AVSW-VGA4X1A includes audio support alongside video switching. This enables synchronized audio-video output when switching between sources, making it suitable for presentations or AV setups where audio from the selected input needs to be transmitted to the display or audio system.
How is the switch controlled, and what is included for serial control?
The switch can be controlled via its serial interface using standard DB9 connections. The package includes a Serial DB9 to 1.7-mm Barrel Adapter to facilitate integration with control systems. This allows for automated switching through serial commands, enabling remote operation or scheduling in AV automation environments.
What is the maximum video resolution supported?
It supports a maximum video resolution of 1920 x 1440. This ensures compatibility with high-definition VGA sources and provides crisp, clear video output on supported displays or projectors, making it effective for both standard and higher-resolution presentation needs.
Is this switch rack-mountable, and what mounting accessories are included?
Yes, the switch is designed for rack-mountable installation. The package includes two rackmount ears with screws for secure attachment to standard AV racks. Additionally, four rubber feet are provided for optional desktop use, offering flexibility in deployment based on your setup requirements.
What is the warranty period for this product?
The Black Box AVSW-VGA4X1A comes with a 3-year limited warranty. This covers defects in materials and workmanship, providing assurance of reliable performance and support for professional AV installations over an extended period.
