Black Box JPM5E24A CAT5e Punchdown Patch Panel - 24-Port - 1U Rack-Mountable - Unshielded
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

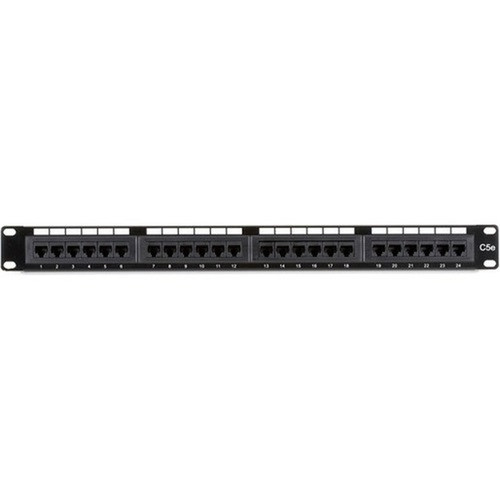

This patch panel features 24 RJ-45 ports arranged in a single row configuration, supporting CAT5e cable specifications for network deployments. The 110-style punchdown blocks provide secure termination points for individual conductors, ensuring reliable connectivity and signal integrity.
The panel's 1U height (1.75 inches) and standard 19-inch width make it compatible with most rack systems, while the 2.4-inch depth allows for flexible installation in various rack configurations. With an approximate weight of 499 grams, the panel offers a lightweight yet sturdy solution for cable management needs.
This section brings together practical product details such as Total Number of Ports, Number of Network (RJ-45) Ports, Product Material, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This patch panel delivers essential advantages for network infrastructure deployment through its combination of port density, rack compatibility, and reliable termination technology.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 24-port density, 1U rack-mountable, 110 punchdown termination, Metal construction, CAT5e compatible.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
The JPM5E24A patch panel is ideal for organizing and terminating network cables in structured cabling environments. Its 24-port configuration makes it suitable for small to medium-sized network installations where port density and cable management are priorities.
Common deployment scenarios include server room installations where multiple devices require organized connectivity, data center environments needing reliable cable termination points, and network closet configurations where space optimization is essential. The panel's unshielded design works well in standard office environments without significant electromagnetic interference concerns.
Server Room Organization
Provides centralized termination for server connections with clean cable management and easy identification of network links.
- 24-port density for multiple servers
- 110 punchdown for secure termination
- Rack-mountable for space efficiency
Network Closet Deployment
Optimizes limited space in network closets while maintaining organized cable runs and accessible termination points.
- 1U height maximizes vertical space
- Standard 19-inch width compatibility
- Lightweight design for easy installation
Physical Profile
Constructed from metal with a standard black finish, this patch panel features a professional appearance suitable for visible rack installations. The 1U form factor ensures compatibility with standard rack systems while providing sufficient space for cable management behind the panel. The compact dimensions allow installation in various rack configurations without requiring excessive depth clearance.
- Width
- 19" (482.60 mm)
- Depth
- 2.40" (60.96 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 499 g
Highlights
- 24 RJ-45 ports for high-density connectivity
- 1U rack-mountable design saves vertical space
- 110 punchdown termination for reliable connections
- Metal construction ensures durability
- CAT5e compatible for Ethernet networks
- Unshielded design for standard environments
- Standard 19-inch width for rack compatibility
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | JPM5E24A |
| Brand Name | Black Box |
| Product Model | JPM5E24A |
| Product Name | CAT5e Patch Panel, Punchdown - 1U, Unshielded, 24-Port |
| Product Condition | New |
| Product Type | Network Patch Panel |
| Interfaces/Ports | |
| Total Number of Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 19" (482.60 mm) |
| Depth | 2.40" (60.96 mm) |
| Weight (Approximate) | 499 g |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many ports does this patch panel have?
This Black Box patch panel features 24 total ports, all of which are RJ-45 network ports designed for CAT5e cable termination. The 24-port configuration provides sufficient density for small to medium network installations while maintaining a compact 1U form factor.
What type of termination does this panel use?
The panel uses 110-style punchdown termination blocks, which provide secure and reliable connections for individual cable conductors. This termination method allows for organized cable management and easy maintenance while ensuring proper signal transmission for network connections.
Is this patch panel rack-mountable?
Yes, this patch panel is designed for rack mounting with a 1U form factor. It features standard 19-inch width compatibility and includes mounting hardware for installation in most standard rack systems commonly used in server rooms and network closets.
What cable category does this panel support?
This patch panel is designed for CAT5e cable installations, supporting Ethernet networks with appropriate performance characteristics. The unshielded design works with standard CAT5e cabling in typical office and data center environments without special shielding requirements.
What are the physical dimensions of this panel?
The panel measures 1.75 inches (44.45 mm) in height, 19 inches (482.60 mm) in width, and 2.40 inches (60.96 mm) in depth. These dimensions provide a compact footprint while accommodating 24 ports in a single row configuration for efficient space utilization.
What warranty comes with this patch panel?
Black Box provides a 2-year limited warranty for this patch panel, covering manufacturing defects and workmanship issues. The warranty ensures reliable performance and provides protection for your network infrastructure investment.
