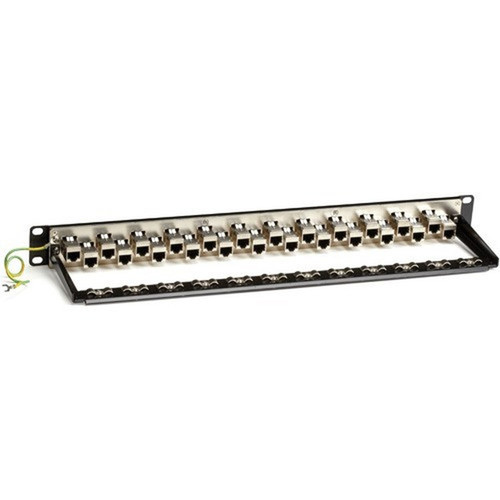

Black Box C6AFP70S-24 CAT6A Shielded Feed-Through Patch Panel - 24-Port - 1U Rack-Mountable - 19" Wide
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This patch panel supports CAT6A shielded cabling standards, maintaining signal integrity for high-speed network applications up to 10 Gigabit Ethernet. The 24 RJ-45 ports are arranged in a single row configuration optimized for standard rack installations.
The panel's 1U height and 19-inch width make it compatible with standard EIA-310 rack systems. The rear cable management bar included in the package helps organize and secure incoming cable runs, reducing clutter and improving airflow in rack environments.
This section brings together practical product details such as Total Number of Ports, Number of Network (RJ-45) Ports, Product Material, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This patch panel combines robust construction with practical design features that streamline network infrastructure management. The shielded design provides enhanced protection against electromagnetic interference, crucial for maintaining signal quality in dense network environments.
Simplified Installation
The feed-through design eliminates the need for punch-down tools or specialized termination equipment. Network technicians can simply route cables through the rear and connect patch cables directly to the front ports.
- No punch-down tools required
- Direct patch cable connection
- Reduced installation time
Compliance Ready
Manufactured in Taiwan with TAA compliance, this patch panel meets government procurement requirements. The RoHS compliance ensures environmentally responsible manufacturing without hazardous substances.
- TAA compliant for government contracts
- RoHS environmental compliance
- Taiwan country of origin
Deployment / Use Cases
The C6AFP70S-24 patch panel is ideal for organizations requiring organized, high-density network connectivity in rack-mounted environments. Its design supports both new installations and infrastructure upgrades where cable management and accessibility are priorities.
Common deployment scenarios include data center server racks where multiple devices require Ethernet connectivity, network operation centers monitoring critical infrastructure, and enterprise wiring closets serving office floors or building segments.
Data Center Racks
Provides centralized termination for server and storage network connections in 1U of rack space, optimizing density while maintaining accessibility for cable changes and troubleshooting.
Network Infrastructure Upgrades
Facilitates migration to CAT6A cabling standards while maintaining existing rack footprint, allowing organizations to upgrade network performance without redesigning physical infrastructure.
Physical Profile
The patch panel features a compact 1U profile that maximizes rack space utilization while providing full 24-port functionality. The 4.5-inch depth accommodates standard patch cables without excessive bending, and the included rear cable management bar helps maintain proper bend radius for installed cabling.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.75" (44.45 mm), 19", 4.50" (114.30 mm), 2.02 lb (916.26 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19"
- Depth
- 4.50" (114.30 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 2.02 lb (916.26 g)
What's in the Box
The package includes all necessary components for immediate installation in standard 19-inch rack systems.
Highlights
- 24-port CAT6A shielded feed-through patch panel
- 1U rack-mountable design for standard 19-inch racks
- Cold-rolled steel construction for durability and EMI protection
- Feed-through design eliminates punch-down termination
- Includes rear cable management bar for organized installation
- TAA compliant for government procurement requirements
- RoHS environmental compliance
- Lifetime limited warranty
- Manufactured in Taiwan
- 4.5-inch depth accommodates standard patch cables
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | C6AFP70S-24 |
| Brand Name | Black Box |
| Product Model | C6AFP70S-24 |
| Product Name | CAT6A Shielded Feed-Through Patch Panel, 24-Port, 1U |
| Product Condition | New |
| Product Type | Network Patch Panel |
| Interfaces/Ports | |
| Total Number of Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| Physical Characteristics | |
| Product Material | Cold Rolled Steel |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Compatible Rack Width | 19" |
| Height | 1.75" (44.45 mm) |
| Width | 19" (482.60 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 2.02 lb (916.26 g) |
| Miscellaneous | |
| Package Contents | CAT6A Shielded Feed-Through Patch Panel, 24-Port, 1U 4 x 10-32 Cup Head Screws 4 x 12-24 Cup Head Screws Rear Cable Management Bar |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of cabling does this patch panel support?
This patch panel supports CAT6A shielded cabling, which is designed for 10 Gigabit Ethernet applications up to 100 meters. The shielded construction provides protection against electromagnetic interference, making it suitable for environments with potential signal degradation concerns.
How many ports does this patch panel have and what type are they?
The Black Box C6AFP70S-24 has 24 total ports, all of which are RJ-45 network ports. This provides a full 24-port configuration in a single 1U rack space, offering high-density connectivity for network infrastructure deployments.
What rack specifications does this patch panel require?
This patch panel is designed for standard 19-inch wide racks and occupies 1U of vertical space (1.75 inches high). It includes both 10-32 and 12-24 cup head screws to accommodate different rack threading standards, ensuring compatibility with most commercial rack systems.
What does 'feed-through' design mean for this patch panel?
The feed-through design allows network cables to pass through the rear of the panel and connect directly to patch cables on the front ports. This eliminates the need for punch-down tools or internal termination, simplifying installation and making cable changes quicker and easier during network maintenance.
Is this patch panel compliant with government procurement requirements?
Yes, this patch panel is TAA compliant and manufactured in Taiwan, meeting the Trade Agreements Act requirements for U.S. government procurement. It also complies with RoHS environmental standards, restricting hazardous substances in its manufacturing process.
What warranty coverage does this patch panel include?
The Black Box C6AFP70S-24 comes with a lifetime limited warranty. This provides long-term protection against manufacturing defects and ensures reliable performance throughout the product's service life in network infrastructure applications.
