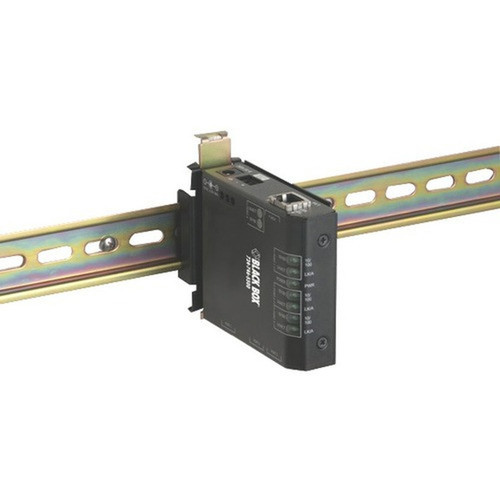

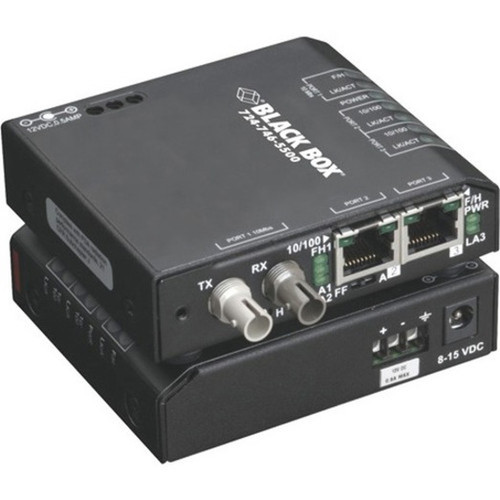

Black Box LBH100A-P-SSC Fast Ethernet Media Converter - 4-Port with Dual RJ45 & Mixed LC/SC Fiber - 15 km Single-Mode - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Fast Ethernet technology, supporting data transfer rates up to 100 Mbps over both 100Base-X and 10/100Base-TX network standards. It utilizes a 1310 nm wavelength on single-mode fiber, which is optimized for long-distance transmissions up to 15 kilometers. The converter handles media conversion between optical fiber and twisted pair, maintaining signal integrity across diverse network segments.
The port configuration includes two RJ-45 ports for Ethernet over copper, one LC port for fiber connections with LC connectors, and one SC port configured as duplex for SC connectors. This mixed port setup allows flexibility in connecting various cable types, supporting both common fiber and copper infrastructures. The device is designed for external use and can be mounted in standard racks, providing a tidy and secure deployment option.
Key Product Advantages
The Black Box LBH100A-P-SSC media converter excels in extending network coverage by converting between copper and fiber media, which is crucial for overcoming distance limitations of traditional Ethernet cables. Its ability to support up to 15 km on single-mode fiber makes it a cost-effective solution for long-range network expansions without sacrificing performance.
Mixed Media Support
Simultaneously connects twisted pair and fiber optic cables, enabling hybrid network setups that leverage the strengths of both media types for optimized infrastructure.
- Dual RJ-45 ports for copper
- LC and SC fiber ports for optical
Professional Installation
Rack-mountable form factor allows for organized cable management and secure mounting in server racks or network closets, reducing clutter and improving reliability.
- Compact dimensions: 3.5" H x 3" W x 1" D
- Lightweight at 4.8 oz
Deployment / Use Cases
This media converter is well-suited for scenarios where network segments need to span beyond the typical 100-meter limit of copper Ethernet. It is commonly deployed in campus networks, industrial plants, or between buildings where fiber optic cabling is used for long-distance backbone connections. The device ensures seamless communication between devices on copper-based LANs and fiber-optic WANs.
Typical use cases include connecting remote offices via fiber links, integrating legacy copper equipment into modern fiber networks, or extending network reach in environments with electromagnetic interference where fiber provides better immunity. Its rack-mount capability makes it ideal for data center installations where space optimization and cable management are priorities.
Long-Distance Networking
Extend Ethernet networks up to 15 km using single-mode fiber, ideal for connecting separate buildings or remote sites without signal degradation.
Media Conversion
Bridge gaps between copper and fiber infrastructures, allowing older copper-based devices to communicate over newer fiber optic backbones.
Physical Profile
The converter has a compact external design with dimensions of 3.50 inches in height, 3 inches in width, and 1 inch in depth, making it easy to install in tight spaces. It weighs approximately 4.80 ounces, ensuring minimal load when rack-mounted. The rack-mountable form factor supports standard mounting hardware, facilitating integration into existing network racks or enclosures for a professional and organized setup.
- Width
- 3" (76.20 mm)
- Depth
- 1" (25.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 4.80 oz (136.08 g)
- Length
- 1310 nm
Highlights
- Converts between twisted pair Ethernet and single-mode fiber optic cables
- Supports distances up to 15 km on fiber for long-range network extensions
- Features 4 ports: 2 RJ-45, 1 LC, and 1 SC duplex for flexible connectivity
- Operates on Fast Ethernet technology with data rates up to 100 Mbps
- Rack-mountable design for organized and secure installation
- Uses 1310 nm wavelength on single-mode fiber for optimal performance
- TAA compliant and manufactured in the United States
- Backed by a 3-year limited warranty for reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH100A-P-SSC |
| Brand Name | Black Box |
| Product Series | LBH100 |
| Product Name | Fast Ethernet Extreme Media Converter Switch |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 15 km (9.32 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X,10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Rack-mountable,External |
| Height | 3.50" (88.90 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of cables does this media converter support?
The Black Box LBH100A-P-SSC supports both optical fiber and twisted pair cables. It has ports for RJ-45 Ethernet cables (copper) and fiber optic cables with LC and SC connectors, specifically designed for single-mode fiber. This allows it to bridge networks using different media types seamlessly.
What is the maximum distance this converter can support on fiber?
This media converter supports a maximum distance of 15 kilometers (approximately 9.32 miles) when using single-mode fiber optic cables. This extended range makes it suitable for connecting remote locations or spanning large campuses without signal loss.
What Ethernet speeds does this device handle?
It operates on Fast Ethernet technology, supporting data transfer rates up to 100 Mbps. It is compatible with 100Base-X and 10/100Base-TX network standards, ensuring reliable performance for most business and industrial networking applications.
Can this converter be mounted in a rack?
Yes, the Black Box LBH100A-P-SSC is designed to be rack-mountable, allowing for professional installation in standard server racks or network enclosures. Its compact form factor (3.5" H x 3" W x 1" D) and lightweight build facilitate easy integration into existing infrastructure.
What is the warranty period for this media converter?
This product comes with a 3-year limited warranty from Black Box, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability and peace of mind for deployments in critical network environments.
Is this device TAA compliant?
Yes, the Black Box LBH100A-P-SSC is TAA (Trade Agreements Act) compliant, meaning it meets U.S. government procurement requirements for products used in federal contracts. It is also manufactured in the United States, ensuring adherence to quality and regulatory standards.
