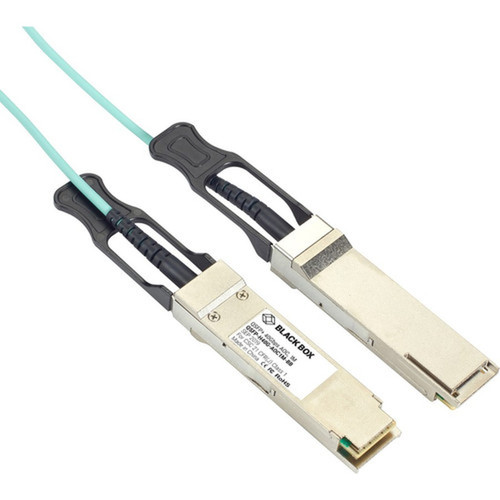

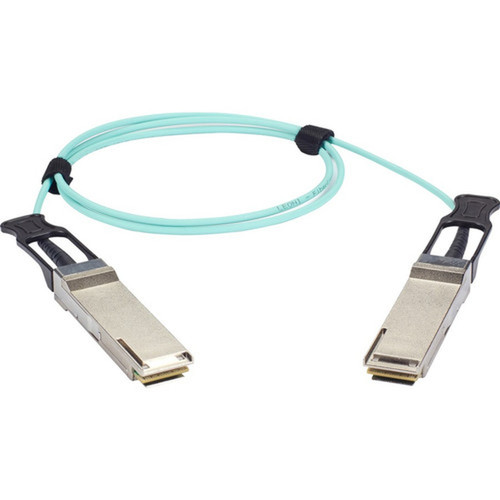

Black Box QSFP-H40G-AOC1M-BB 40GbE Active Optical Cable - 3. 2 ft - 0. 98 m QSFP+ to QSFP+ Multimode AOC for Switch - Router - Server
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Active Optical Cable operates at 40 Gbit/s, supporting 40GBase-AOC standards for Ethernet, Infiniband QDR, and 4G/8G/10G Fiber Channel applications. The QSFP+ connectors are fully compliant with the Multi-Source Agreement (MSA) and SFF-8436 specifications, ensuring broad compatibility with networking equipment from major vendors.
The cable utilizes Vertical Cavity Surface Emitting Laser (VCSEL) technology for efficient optical transmission over multimode fiber. With power consumption under 25W, it offers energy-efficient operation while providing EMI/RF protection to maintain signal integrity in dense environments.
This section brings together practical product details such as Cable Type, Fiber Optic Mode, Cable Length, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Active Optical Cable simplifies high-speed connectivity by integrating optics directly into the cable assembly, eliminating the need for separate transceivers and reducing points of failure. The direct-attach design provides a cost-effective solution for 40GbE deployments while maintaining excellent signal quality.
Compatibility Assurance
100% compatible with Cisco QSFP-H40G-AOC10M= and other length variants, ensuring reliable performance in mixed-vendor environments.
- QSFP+ MSA compliant
- SFF-8436 standard
- Broad equipment support
Environmental Design
Constructed with halogen-free LSZH (Low Smoke Zero Halogen) jacket material for improved safety in enclosed spaces.
- RoHS compliant
- Environmentally friendly
- Reduced toxic emissions
Deployment / Use Cases
This 40GbE Active Optical Cable is ideal for data center environments requiring high-bandwidth connections between networking equipment. The 3.2-foot length makes it particularly suitable for intra-rack connections where short-reach links are needed between adjacent devices.
Common deployment scenarios include connecting top-of-rack switches to servers, linking aggregation switches in the same rack, or establishing high-speed connections between network appliances. The cable supports various protocols including 40Gb Ethernet for network traffic, Infiniband QDR for high-performance computing, and Fiber Channel for storage area networks.
Data Center Interconnects
Perfect for connecting switches, routers, and servers within the same rack or between adjacent racks in data center environments.
High-Performance Computing
Supports Infiniband QDR applications requiring low-latency, high-bandwidth connections between compute nodes and storage systems.
Highlights
- 40 Gbit/s Active Optical Cable for high-speed networking
- 3.2 ft (0.98 m) length ideal for intra-rack connections
- QSFP+ to QSFP+ connectors on both ends
- Multimode fiber with 850nm VCSEL technology
- Hot-swappable design for flexible deployment
- Low power consumption (less than 25W)
- 100% compatible with Cisco QSFP-H40G-AOC10M=
- LSZH halogen-free jacket for improved safety
- Supports 40GbE, Infiniband QDR, and Fiber Channel
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | QSFP-H40G-AOC1M-BB |
| Brand Name | Black Box |
| Product Name | Fiber Optic Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Cable Length | 3.2 ft (0.98 m) |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Jacket Type | LSZH |
| Device Supported | Switch,Router,Server,Network Device |
| Data Transfer Rate | 40 Gbit/s |
| Features | AOC Technology,EMI/RF Protection,Hot-swappable,Halogen Free |
| Physical Characteristics | |
| Product Color | Aqua |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of cable is the QSFP-H40G-AOC1M-BB?
The QSFP-H40G-AOC1M-BB is an Active Optical Cable (AOC) that integrates optical transceivers directly into the cable assembly. It provides a complete 40GbE solution with QSFP+ connectors on both ends, eliminating the need for separate optical modules. This design simplifies deployment while maintaining high performance over multimode fiber.
What is the maximum data transfer rate of this cable?
This cable supports data transfer rates up to 40 Gbit/s (40 Gbps). It is designed for 40GBase-AOC applications and can handle high-bandwidth traffic for 40Gb Ethernet, Infiniband QDR, and 4G/8G/10G Fiber Channel protocols. The active optical design ensures reliable performance at this speed over the entire 3.2-foot cable length.
What types of devices is this cable compatible with?
The cable is compatible with network equipment featuring QSFP+ ports, including switches, routers, servers, and other network devices. It is 100% compatible with Cisco QSFP-H40G-AOC10M= and follows QSFP+ Multi-Source Agreement (MSA) standards, ensuring broad compatibility across vendors that adhere to these specifications.
What is the cable length and when is this length appropriate?
The cable measures 3.2 feet (0.98 meters) in length. This short-reach design is ideal for intra-rack connections between adjacent devices, point-to-point links within the same rack, or rack-to-rack connections where equipment is in close proximity. The length minimizes cable clutter while providing sufficient reach for most data center deployment scenarios.
Does this cable support hot-swapping?
Yes, this Active Optical Cable features hot-swappable QSFP+ connectors. This allows you to install or remove the cable while equipment is powered on, enabling maintenance and reconfiguration without disrupting network operations. The hot-swappable design supports flexible deployment in live environments where uptime is critical.
What warranty comes with this product?
Black Box provides a lifetime limited warranty for the QSFP-H40G-AOC1M-BB Active Optical Cable. This warranty covers defects in materials and workmanship for the life of the product, offering long-term reliability assurance for your network infrastructure investment. The cable also meets RoHS environmental compliance standards.
