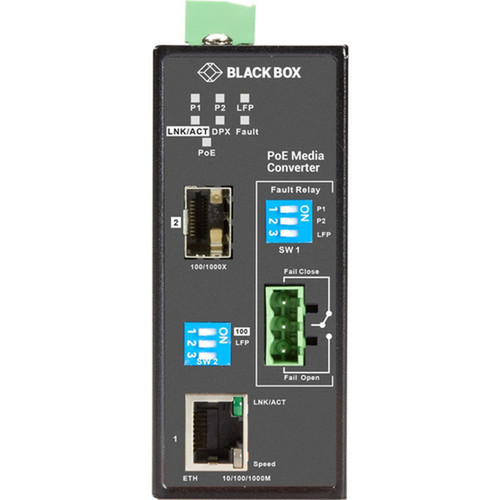

Black Box LGC5500A Gigabit PoE Media Converter - RJ-45 & SFP Fiber Ports - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LGC5500A features a single RJ-45 port that supports 10/100/1000Base-TX Ethernet over twisted pair cabling, with integrated PoE Power Sourcing Equipment (PSE) to supply power to connected devices. This port is complemented by one SFP (mini-GBIC) expansion slot, which accepts industry-standard SFP transceivers for fiber optic connectivity. Supported fiber types include both multimode and singlemode, depending on the SFP module installed, enabling flexible deployment across various distance requirements.
Network performance is optimized for Gigabit Ethernet, with auto-negotiation ensuring compatibility with existing 10/100/1000 Mbps devices. The converter operates at layer 2, transparently forwarding Ethernet frames without protocol conversion, maintaining low latency and high throughput. Its compact footprint and multiple mounting options make it suitable for space-constrained installations.
Key Product Advantages
The LGC5500A combines media conversion with PoE delivery in a single ruggedized unit, reducing the need for separate power injectors and simplifying cabling. Its industrial-grade construction ensures durability in harsh conditions, while compliance with environmental standards like RoHS and WEEE reflects a commitment to sustainability. The converter's plug-and-play operation requires no configuration, making it accessible for technicians without specialized networking expertise.
Media Flexibility
Supports both twisted pair copper and optical fiber media, allowing seamless integration of fiber backbones with existing copper networks.
- RJ-45 for copper connections
- SFP slot for fiber optic modules
- Auto-negotiation for speed compatibility
Power over Ethernet
Integrates PoE PSE functionality to power connected devices, eliminating the need for separate power supplies at remote locations.
- Single-port PoE delivery
- Compatible with IEEE 802.3af/at devices
- Simplified installation and maintenance
Industrial Durability
Designed for reliable operation in industrial environments, with robust construction and wide operating temperature tolerance.

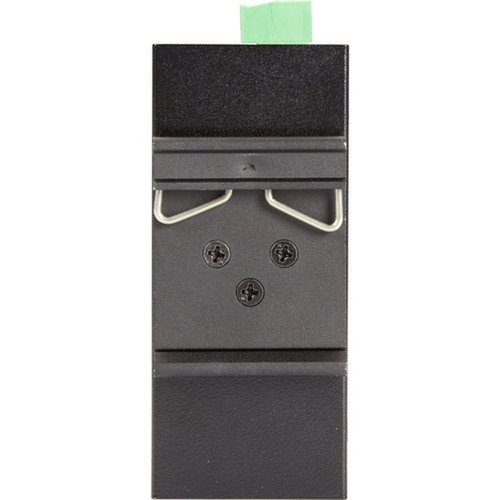

- DIN rail, panel, and wall mount options
- Resistant to vibration and EMI
- Long-term reliability in harsh conditions
Deployment / Use Cases
The LGC5500A is ideal for extending network reach in industrial settings, such as manufacturing plants, warehouses, or outdoor installations, where fiber optic cables are used to overcome distance limitations and electrical interference. It enables the connection of PoE devices like security cameras, access points, or sensors in remote areas without local power outlets, streamlining infrastructure deployment.
In commercial buildings, this converter can bridge fiber backbone segments to copper-based edge networks, supporting high-bandwidth applications like video surveillance or VoIP systems. Its compact form factor allows installation in electrical cabinets, control panels, or tight spaces, while multiple mounting options provide flexibility for various enclosure types.
Industrial Automation
Connect PLCs, sensors, and cameras across factory floors using fiber for noise immunity and copper for end-point devices.
- PoE for remote device power
- Fiber for long-distance runs
- Rugged design for harsh environments
Security and Surveillance
Extend network coverage to outdoor or perimeter areas with fiber, while powering IP cameras via PoE over the same cable.
- Single-cable solution for data and power
- Fiber immunity to lightning strikes
- Easy integration with existing NVRs
Physical Profile
The LGC5500A has a compact industrial design measuring 3.70" high, 1.60" wide, and 2.80" deep, with a weight of approximately 9.60 ounces. Its small footprint allows installation in space-constrained locations like DIN rails, electrical panels, or wall surfaces. The converter features a durable metal or high-impact plastic enclosure that protects internal components from dust, moisture, and physical damage, ensuring reliable performance in challenging environments.
- Width
- 1.60" (40.64 mm)
- Depth
- 2.80" (71.12 mm)
- Height
- 3.70" (93.98 mm)
- Weight
- 9.60 oz (272.16 g)
Highlights
- Gigabit Ethernet media converter with PoE PSE functionality
- Single RJ-45 port supporting 10/100/1000Base-TX over twisted pair
- One SFP slot for fiber optic connectivity with industry-standard modules
- Supports both twisted pair copper and optical fiber media types
- DIN rail, panel, and wall mountable for flexible installation
- Industrial-grade construction for harsh environment operation
- Compliant with RoHS, WEEE, and TAA requirements
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC5500A |
| Brand Name | Black Box |
| Product Series | LGC5500 |
| Product Name | Gb ETH IND PoE MED CONV 10/100/1000Mbps COP 100/1000Mbps FBR SFP |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-X |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Panel-mountable,Wall Mountable |
| Height | 3.70" (93.98 mm) |
| Width | 1.60" (40.64 mm) |
| Depth | 2.80" (71.12 mm) |
| Weight (Approximate) | 9.60 oz (272.16 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What media types does the LGC5500A support?
The LGC5500A supports twisted pair copper cabling via its RJ-45 port and optical fiber via an optional SFP module inserted into its expansion slot. This allows conversion between copper and fiber media, enabling network extension over longer distances with fiber's noise immunity.
Does this media converter provide Power over Ethernet?
Yes, the LGC5500A includes a PoE Power Sourcing Equipment (PSE) port on its RJ-45 interface. It can deliver power to compatible IEEE 802.3af/at devices like IP cameras or wireless access points, eliminating the need for separate power injectors at remote locations.
What is the maximum data transfer rate?
This converter supports Gigabit Ethernet with data transfer rates up to 1000 Mbps. It auto-negotiates with connected devices to operate at 10, 100, or 1000 Mbps, ensuring compatibility with existing network equipment.
How is the LGC5500A mounted in industrial settings?
The converter is designed for flexible mounting with DIN rail, panel, and wall mount options. Its compact dimensions allow installation in standard electrical enclosures, control panels, or tight spaces common in industrial environments.
What SFP modules are compatible with this converter?
The LGC5500A accepts industry-standard SFP (mini-GBIC) transceivers, which can be selected based on fiber type (multimode or singlemode) and distance requirements. Users can choose SFP modules with LC, SC, or other connectors to match their existing fiber infrastructure.
What warranty and compliance certifications does it have?
Black Box provides a 5-year limited warranty for the LGC5500A. It complies with environmental standards including RoHS and WEEE, and is TAA compliant for use in government procurement, ensuring it meets regulatory requirements for hazardous substance restrictions and trade agreements.
