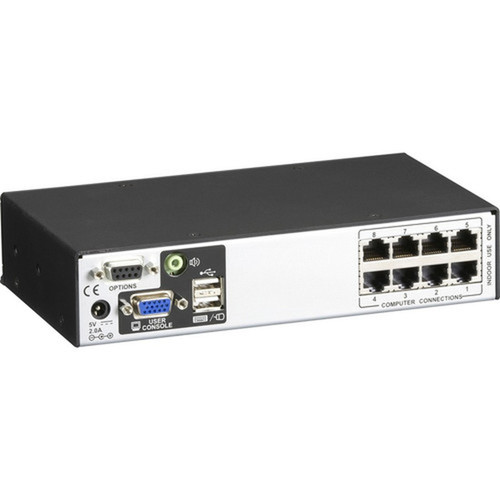

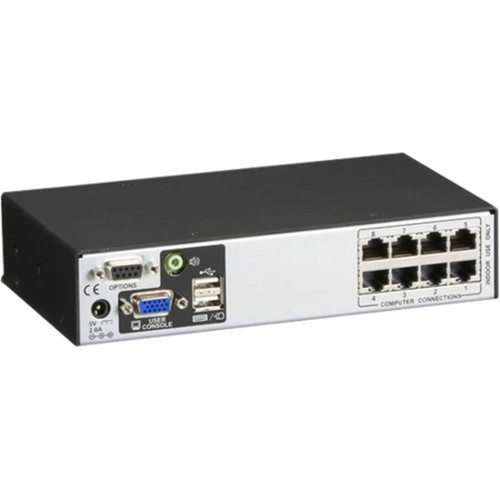

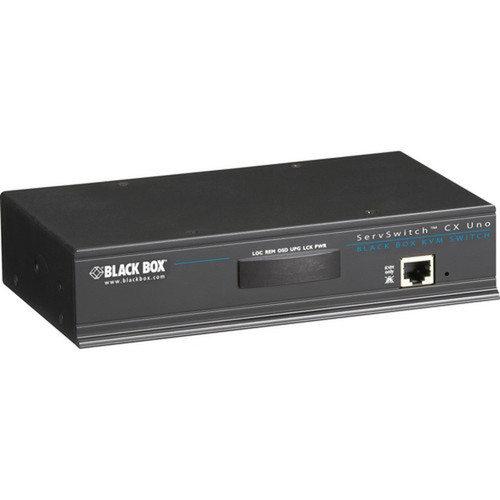

Black Box KV0081A ServSwitch CX Uno 8-Port KVM Switch - 8 Computer - s / 1 Local User - 1920 x 1200 WUXGA - 9x RJ-45 - 2x USB - 1x VGA - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Operating Distance, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
KVM Switching Core
The switch supports eight computers with one local user station, allowing centralized management through keyboard, video, and mouse control. The 984-foot maximum operating distance extends flexibility in rack and server room layouts.
- 8 computer connections
- 1 local user station
- 984 ft operating distance
Video and Interface Specifications
WUXGA graphic mode delivers 1920x1200 resolution for detailed administrative displays. Connectivity includes nine RJ-45 ports for network integration, two USB ports for peripheral support, and one VGA port for direct video output.
- 1920x1200 WUXGA resolution
- 9 RJ-45 ports
- 2 USB ports, 1 VGA port
Key Product Advantages
The ServSwitch CX Uno eliminates cable-switching hassles by consolidating control of eight computers through a single local station. Its 1U rack-mountable form factor saves valuable rack space while providing robust connectivity with nine RJ-45 ports for network integration.
Extended Distance Operation
With a maximum operating distance of 984 feet, this KVM switch supports flexible deployment in large server rooms or distributed IT environments where remote computer access is required.
- 984 ft maximum distance
- Flexible rack placement
- Remote management capability
Hot-Pluggable Connectivity
USB interfaces support hot-pluggable connections, allowing administrators to add or remove peripherals without disrupting system operations or requiring reboots.
- No reboot required
- Quick peripheral changes
- Minimal downtime
Deployment / Use Cases
The ServSwitch CX Uno is designed for environments where multiple servers or computers require centralized management from a single control point. Its rack-mountable 1U design makes it ideal for data centers, network operation centers, and IT closets where space efficiency and organized cable management are critical.
Small to medium businesses can use this KVM switch to manage server farms, while educational institutions and government facilities benefit from its extended distance capability for distributed computer labs. The nine RJ-45 ports enable network integration for remote access scenarios, while the hot-pluggable USB interfaces support temporary peripheral connections during maintenance windows.
Data Center Server Management
Centralize control of up to eight servers from a single administrative workstation, reducing clutter and improving operational efficiency in rack environments.
- 8-server consolidation
- 1U rack space
- Reduced cable clutter
Remote IT Closet Access
The 984-foot operating distance allows placement in separate rooms or floors, enabling administrators to manage equipment from a centralized location without physical proximity.
- Extended distance access
- Centralized control point
- Distributed environment support
Physical Profile
This 1U rack-mountable KVM switch measures 1.70 inches in height, 7.90 inches in width, and 4.70 inches in depth, with an approximate weight of 1.50 pounds. The compact design optimizes rack space while including rubber feet for optional desktop placement. The unit ships from the United Kingdom and carries a two-year limited warranty.
- Width
- 7.90" (200.66 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1U
- Weight
- 1.50 lb (680.39 g)
What's in the Box
The package includes all necessary components for immediate deployment in rack or desktop configurations.
Highlights
- Connects 8 computers to 1 local user station
- 984-foot maximum operating distance for flexible placement
- 1920x1200 WUXGA video resolution for clear displays
- Hot-pluggable USB interfaces for quick connections
- 1U rack-mountable design saves rack space
- 9 RJ-45 ports for network integration
- 2 USB ports and 1 VGA port for peripheral support
- Includes rubber feet for desktop deployment
- 2-year limited warranty for reliability assurance
- Environmentally friendly manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV0081A |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Name | ServSwitch CX Uno, 8-Port |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 984.30 ft (300014.64 mm) |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 9 |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 7.90" (200.66 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.50 lb (680.39 g) |
| Miscellaneous | |
| Package Contents | ServSwitch CX Uno, 8-Port 1 x Set of Rubber Feet (4 total) 1 x Power Supply 1 x Serial Upgrade Cable (DB9M to DB9F) |
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many computers can I connect to this KVM switch?
The Black Box ServSwitch CX Uno supports connections for up to eight computers, allowing centralized management from a single local user station. This configuration is ideal for server rooms, data centers, or IT closets where multiple systems require administrative access without individual dedicated peripherals.
What is the maximum operating distance for this KVM switch?
This KVM switch supports a maximum operating distance of 984.30 feet (300014.64 mm), providing flexibility in rack placement and enabling remote management scenarios. The extended distance allows installation in separate rooms or across floors while maintaining reliable keyboard, video, and mouse control from a centralized station.
What video resolution does this switch support?
The ServSwitch CX Uno supports WUXGA graphic mode with a maximum video resolution of 1920 x 1200 pixels. This resolution delivers clear, detailed displays for administrative tasks, server monitoring, and configuration activities, ensuring sharp text and graphics during remote management sessions.
Can this KVM switch be mounted in a standard rack?
Yes, this switch features a rack-mountable form factor with a 1U rack height. Its compact dimensions of 1.70 inches height, 7.90 inches width, and 4.70 inches depth fit standard 19-inch racks, while the included rubber feet provide optional desktop placement for environments without rack infrastructure.
What connectivity ports are available on this switch?
The switch includes nine RJ-45 network ports for Ethernet connectivity, two USB ports for peripheral connections, and one VGA port for video output. The USB interfaces support hot-pluggable operation, allowing peripheral changes without system reboots, while the multiple RJ-45 ports enable network integration for remote access scenarios.
What is included in the package with this KVM switch?
The package contains the ServSwitch CX Uno 8-port unit, a set of four rubber feet for desktop use, a power supply, and a DB9M to DB9F serial upgrade cable. These components support both rack-mount and desktop deployments, with the serial cable providing additional connectivity options for legacy or specialized equipment.
