Black Box KVS4-2004V Secure KVM Switch - NIAP 4.0 Certified - 4-Port Dual-Monitor DisplayPort - 2 Computers - 4 Local Users - 4K 3840 x 2160
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

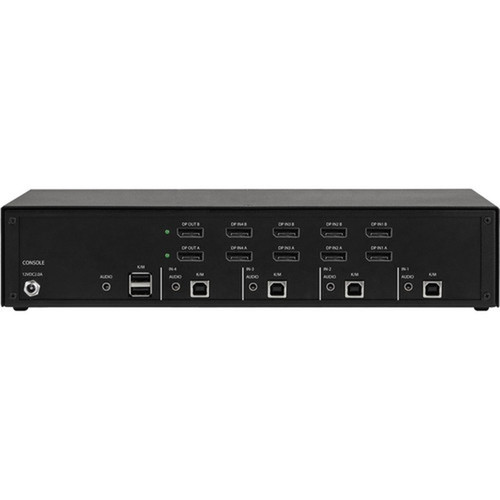

This KVM switch provides robust connectivity with ten DisplayPort ports and six USB 2.0 ports, enabling comprehensive peripheral management. The wired connectivity ensures reliable signal transmission up to 20 feet (6096 mm) between connected devices.
Video capabilities include 4K graphic mode support with maximum resolution of 3840 x 2160 pixels. The switch operates on 100-240 VAC input voltage, making it compatible with global power standards. Security features include tamper-proof construction and intrusion detection mechanisms that monitor for unauthorized access attempts.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The switch's tamper-proof design and intrusion detection features provide physical security monitoring, alerting administrators to unauthorized access attempts. With support for four local users accessing two computers simultaneously, the switch optimizes hardware utilization while maintaining secure separation between user sessions.
NIAP 4.0 Security Certification
This KVM switch meets NIAP 4.0 certification standards, providing validated security controls for sensitive computing environments. The certification ensures the switch implements proper access controls and security mechanisms required for government and enterprise deployments.
- Validated security controls
- Government-grade compliance
- Access control enforcement
Dual-Monitor 4K Display Support
Support for dual-monitor configurations with 4K resolution enables high-resolution visual workflows across multiple displays. The 3840 x 2160 maximum resolution maintains image clarity for detailed graphics, CAD work, and multimedia applications.
- 3840 x 2160 resolution
- Dual-monitor capability
- DisplayPort connectivity
Deployment / Use Cases
The desktop form factor makes this KVM switch suitable for office environments, laboratories, and production floors where rack mounting isn't required. The 20-foot operating distance provides flexibility in equipment placement, allowing computers to be located in secure enclosures while user stations remain accessible.
Educational institutions can deploy these switches in computer labs to maximize hardware utilization, allowing multiple students to access shared computing resources securely. The TAA compliance makes the switch suitable for government procurement, while the global power supply with multiple adapter clips supports international deployments.
Secure Control Room Operations
Ideal for security operations centers, financial trading floors, and government facilities where multiple operators need secure access to critical computer systems. The NIAP 4.0 certification ensures compliance with security standards while the tamper-proof design protects against physical compromise.
Multi-User Technical Workstations
Perfect for engineering departments, design studios, and research facilities where teams share high-performance computing resources. The dual-monitor 4K support enables detailed visualization work while the four-user capability allows efficient resource sharing among technical staff.
Physical Profile
The desktop form factor measures 12.57" wide × 6.69" deep × 2.63" high (319.28 × 169.93 × 66.80 mm), providing a compact footprint for workspace placement. Weighing approximately 4.20 lb (1905.09 g), the switch offers stable desktop operation without requiring rack mounting hardware.
The package includes four rubber feet for surface protection and stability. The desktop orientation allows for easy access to all ports and controls, making configuration and cable management straightforward in office and control room environments.
- Width
- 12.57" (319.28 mm)
- Depth
- 6.69" (169.93 mm)
- Height
- 2.63" (66.80 mm)
- Weight
- 4.20 lb (1905.09 g)
What's in the Box
The package includes all necessary components for immediate deployment. The comprehensive contents ensure you have everything required for setup and operation.
Highlights
- NIAP 4.0 Certified for secure government and enterprise deployments
- Supports 2 computers with access for 4 local users simultaneously
- Dual-monitor DisplayPort connectivity with 4K 3840x2160 resolution
- Tamper-proof construction with intrusion detection security features
- 10 DisplayPort ports and 6 USB 2.0 ports for comprehensive connectivity
- 20-foot (6096 mm) maximum operating distance between devices
- Desktop form factor with compact dimensions for workspace placement
- Global power supply with 100-240 VAC input voltage compatibility
- TAA Compliant for government procurement requirements
- Includes wallmount power supply with international adapter clips
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVS4-2004V |
| Brand Name | Black Box |
| Product Line | Secure |
| Product Model | KVS4-2004V |
| Product Name | KVM Switch, NIAP 4.0 Certified - 4-Port, Dual-Monitor, DisplayPort |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 4 |
| Features | Tamper Proof,Intrusion Detection |
| Maximum Operating Distance | 20 ft (6096 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 6 |
| Number of DisplayPorts | 10 |
| Power Description | |
| Input Voltage Range | 100-240 VAC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.63" (66.80 mm) |
| Width | 12.57" (319.28 mm) |
| Depth | 6.69" (169.93 mm) |
| Weight (Approximate) | 4.20 lb (1905.09 g) |
| Miscellaneous | |
| Package Contents | KVM Switch, NIAP 4.0 Certified - 4-Port, Dual-Monitor, DisplayPort 1x 12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips 1x Set of 4 rubber feet (already be attached) 1x Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What does NIAP 4.0 certification mean for this KVM switch?
NIAP 4.0 certification indicates this KVM switch has been independently evaluated and validated against rigorous security standards. The certification ensures the switch implements proper access controls, security mechanisms, and protection features required for sensitive computing environments. This makes the switch suitable for government, financial, and enterprise deployments where security compliance is mandatory.
How many computers and users can this KVM switch support simultaneously?
The Black Box KVS4-2004V supports two computers that can be accessed by four local users simultaneously. This configuration allows multiple operators to share computing resources efficiently while maintaining separate user sessions. The switch manages access between the computers and user stations, eliminating the need for manual cable switching between different systems.
What video resolution and connectivity does this switch support?
This KVM switch supports 4K video resolution with a maximum of 3840 x 2160 pixels. It features DisplayPort connectivity with ten DisplayPort ports for comprehensive video management. The dual-monitor capability allows each user station to connect two displays, enabling extended desktop configurations for productivity and visualization applications.
What security features are included with this KVM switch?
Security features include tamper-proof construction that protects against physical compromise and intrusion detection that monitors for unauthorized access attempts. These features work alongside the NIAP 4.0 certification to provide comprehensive security protection. The switch alerts administrators to security events while maintaining secure separation between user sessions and computer systems.
What is the maximum operating distance for connected devices?
The maximum operating distance between connected devices is 20 feet (6096 mm). This wired connectivity range provides flexibility in equipment placement, allowing computers to be located in secure enclosures or separate rooms while user stations remain accessible in workspace areas. The distance supports typical office and control room layouts without signal degradation.
What power requirements and compliance standards does this switch meet?
The switch operates on 100-240 VAC input voltage, making it compatible with global power standards. It includes a 12 VDC wallmount power supply with US, EU, UK, and AU adapter clips for international deployment. Compliance standards include TAA compliance for government procurement, WEEE and RoHS environmental directives, and a 3-year limited warranty for reliability assurance.
