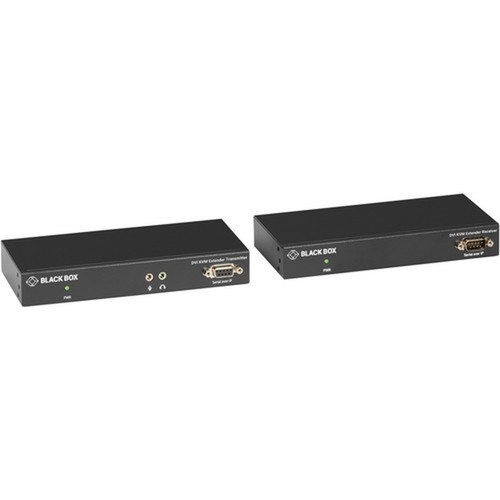

Black Box KVXLC-100-R2 KVX Series KVM Extender Kit - DVI-D - USB 2.0 - Serial - Audio - Local Video - 1 Computer - 1 Local/Remote User - 330 ft
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

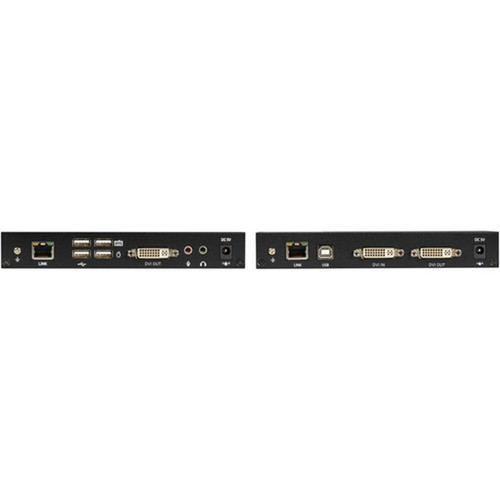

This KVM extender operates over wired CATx connectivity, utilizing two RJ-45 ports to establish a link between the transmitter and receiver. It supports a maximum video resolution of 1920x1200 at 60 Hz through DVI-D interfaces, with EDID pass-through ensuring display compatibility. The system provides five USB 2.0 ports for HID devices and mass storage, along with RS-232 serial support and bi-directional audio via a 3.5mm connection.
Power is supplied through 5V DC inputs, with included adapters supporting US, EU, and UK plug types. The extender maintains signal quality across its 330-foot range, leveraging standard network cabling for easy integration into existing infrastructure without specialized media.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVXLC-100-R2 simplifies remote workstation setups by extending multiple signal types over a single CATx cable, reducing clutter and installation complexity. Its support for high-resolution video and transparent USB extension ensures a seamless user experience, whether for local monitoring or remote operation.
Extended Reach with Standard Cabling
Leverage existing CAT5e/6 infrastructure to achieve reliable KVM extension up to 330 feet, eliminating the need for expensive dedicated cabling or signal degradation over long distances.
Comprehensive Peripheral Support
Beyond basic KVM, this extender handles USB 2.0 devices, serial equipment, and audio signals, making it suitable for control systems, digital signage players, and specialized workstations.
Local Monitoring Capability
The transmitter unit includes a local DVI port loopback, allowing on-site video monitoring without interrupting the remote extension link—ideal for troubleshooting or dual-display setups.
Deployment / Use Cases
This KVM extender is ideal for environments where computer equipment must be located away from user workstations due to space, security, or environmental constraints. Its ability to extend high-resolution video and full peripheral control makes it a practical solution for server rooms, industrial control panels, and broadcast setups.
Common applications include extending a workstation to a secure server closet, controlling a media player from a front-of-house location in digital signage deployments, or providing remote access to test equipment in labs. The kit’s included desk mount kits facilitate neat installation in office or rack environments, supporting both temporary and permanent setups.
Secure Server Room Access
Place noisy or heat-generating servers in a dedicated closet while maintaining full control from a quiet, adjacent workspace, with video clarity up to 1920x1200.
Digital Signage and Control Rooms
Remotely manage media players or control systems from a central console, with reliable extension over CATx cabling already installed in ceilings or walls.
What's in the Box
The kit includes all necessary components for immediate deployment:
Highlights
- Extends KVM signals up to 330 feet over standard CAT5e/6 cables
- Supports DVI-D video at resolutions up to 1920x1200 at 60 Hz
- Transparent USB 2.0 extension for HID and mass storage devices
- Includes RS-232 serial support for legacy peripherals
- Bi-directional audio via 3.5mm speaker/mic connection
- Local DVI port loopback on transmitter for on-site monitoring
- EDID pass-through ensures display compatibility
- Includes international power supplies (US, EU, UK plugs)
- TAA compliant for government and educational procurement
- Backed by a 2-year Double Diamond™ warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLC-100-R2 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Model | KVXLC-100-R2 |
| Product Name | KVX Series KVM Extender Kit over CATx - DVI-D, USB 2.0, Serial, Audio, Local Video |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Device Type | KVM Extender |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Number of DVI Ports | 3 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Transmitter Height | 1.06" (26.92 mm) |
| Transmitter Width | 7.09" (180.09 mm) |
| Transmitter Depth | 3.27" (83.06 mm) |
| Receiver Height | 1.06" (26.92 mm) |
| Receiver Width | 7.09" (180.09 mm) |
| Receiver Depth | 3.27" (83.06 mm) |
| Transmitter Weight (Approximate) | 12.64 oz (358.34 g) |
| Receiver Weight (Approximate) | 13.44 oz (381.02 g) |
| Miscellaneous | |

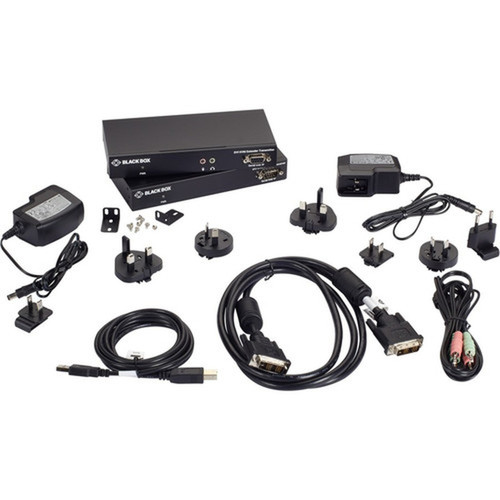

| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, and UK plug types) 1 x DVI-D cable 1.8m (6 ft.) 1 x 3.5mm audio cable 1.8m (6 ft.) 1 x USB-B to USB-A cable 1.8m (6 ft.) 2 x Deskmount Kits with Screws (KVXLC-DMK) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | Warranty: 2 Year Double Diamond™ Warranty (Standard) |
User Manual
FAQ
What is the maximum distance this KVM extender can cover?
The Black Box KVXLC-100-R2 extends signals up to 330 feet (approximately 100 meters) using standard CAT5e or CAT6 cables. This distance supports reliable transmission of DVI-D video, USB 2.0, serial, and audio without signal degradation, making it suitable for most office, industrial, and AV installations.
What video resolution and refresh rate does this extender support?
This extender supports a maximum video resolution of 1920 x 1200 at a refresh rate of 60 Hz through its DVI-D interface. It includes EDID pass-through to ensure compatibility with displays, maintaining correct resolution and timing settings between the computer and monitor.
Does this kit support audio and serial connections?
Yes, it includes bi-directional audio support via a 3.5mm connection for speakers and microphones, and RS-232 serial support for legacy peripherals like barcode scanners, serial printers, or industrial control equipment. This makes it versatile for multimedia and specialized workstation setups.
What cables and power supplies are included in the box?
The kit includes a DVI-D cable, a 3.5mm audio cable, and a USB-B to USB-A cable, each 1.8 meters (6 feet) long. It also comes with two 5V, 2A power supplies that feature interchangeable plugs for US, EU, and UK outlets, along with two desk mount kits for secure installation.
Is this KVM extender compliant with government procurement standards?
Yes, the KVXLC-100-R2 is TAA (Trade Agreements Act) compliant, making it eligible for procurement by U.S. government agencies and educational institutions. It also meets RoHS environmental standards and is backed by a 2-year Double Diamond™ warranty for reliable long-term use.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
