Product Features
Technical Overview
This KVM extender utilizes wired connectivity over two CAT5e cables to achieve its 328-foot operating distance. The system consists of a transmitter unit that connects to source computers and a receiver unit that interfaces with the user's peripherals. Video transmission supports both HDMI and DisplayPort inputs with output resolution up to 3840x2160 at 30Hz.
USB extension is handled transparently, supporting keyboard, mouse, storage devices, and serial RS-232 equipment without requiring additional drivers. Bi-directional audio transmission occurs through a dedicated 3.5mm connection, while local video port loopback on the transmitter enables monitoring without disrupting the extended signal path.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVXLCHDP-200 eliminates distance limitations in KVM deployments while maintaining full peripheral functionality. Its dual-head transmission capability allows simultaneous extension of DisplayPort and HDMI video sources, providing compatibility with diverse computer hardware.
Long-Distance Signal Integrity
Maintains 4K video quality and USB responsiveness across 328-foot CAT5e runs without signal degradation or latency issues.
- Uses standard CAT5e cabling
- No fiber optic conversion required
- Supports 30Hz refresh rate at full resolution
Comprehensive Peripheral Support
Extends beyond basic KVM to include audio, serial devices, and storage peripherals through transparent USB 2.0 extension.
- Bi-directional audio transmission
- RS-232 serial device support
- HID and mass storage compatibility
Deployment / Use Cases
This extender is ideal for environments where computer equipment must be located at a distance from user workstations. Data centers can consolidate servers in secure racks while providing technician access from centralized control stations. Broadcast facilities benefit from extending editing workstations to control rooms without compromising 4K video quality.
In industrial settings, the RS-232 support enables extension of legacy serial equipment alongside modern computers. Educational institutions can deploy the solution in computer labs where instructor stations need to monitor multiple student machines. The included desk-mounting brackets allow for clean under-desk installation in office environments, keeping transmitter and receiver units accessible yet unobtrusive.
Data Center Server Management
Technicians can access and control multiple servers from a centralized console room, reducing time spent in hot aisles while maintaining full KVM functionality.
AV/Control Room Integration
Extend high-resolution video sources from equipment racks to operator positions without signal conversion or quality loss.

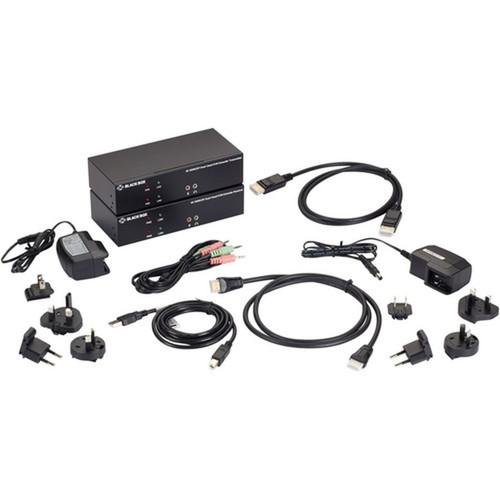

What's in the Box
The package includes all components necessary for immediate deployment of the KVM extension system.
Highlights
- Extends KVM signals up to 328 feet (100m) using standard CAT5e cables
- Supports 2 computers with 1 local user station
- 4K video resolution at 3840x2160 with HDMI and DisplayPort compatibility
- Transparent USB 2.0 extension for keyboards, mice, and storage devices
- RS-232 serial device support for legacy equipment integration
- Bi-directional audio transmission via 3.5mm connection
- Local video loopback for transmitter-side monitoring
- Desktop form factor with included mounting brackets
- 5V DC power input with international power supplies included
- 2-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCHDP-200 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Model | KVXLCHDP-200 |
| Product Name | KVXLCHDP-200 KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 4 |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 7.15" (181.61 mm) |
| Transmitter Depth | 3.25" (82.55 mm) |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 7.15" (181.61 mm) |
| Receiver Depth | 3.25" (82.55 mm) |
| Transmitter Weight (Approximate) | 13.44 oz (381.02 g) |
| Receiver Weight (Approximate) | 13.60 oz (385.55 g) |
| Miscellaneous | |
| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 2 x HDMI cables 1.2m (4 ft.) 2 x DisplayPort cables 1.2m (4 ft.) 1 x 3.5mm audio cable 1.8m (6 ft.) 1 x USB-B to USB-A cable 1.8m (6 ft.) 2 x Deskmounting brackets (with screws) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of cabling does this KVM extender require?
The KVXLCHDP-200 uses two standard CAT5e cables to achieve its maximum 328-foot operating distance. These are common Ethernet cables that provide the necessary bandwidth for 4K video, USB, and audio signals without requiring specialized fiber optic or proprietary cabling.
How many computers can I connect to this extender?
This KVM extender supports two computers simultaneously. Both systems can be controlled from a single local user station, making it ideal for environments where an operator needs to manage multiple machines from one location.
What video resolutions and refresh rates are supported?
The extender supports 4K resolution at 3840x2160 with a 30Hz refresh rate. It maintains this video quality across the full 328-foot distance using both HDMI and DisplayPort connections, providing compatibility with modern computer and AV equipment.
Does this extender support USB devices beyond keyboards and mice?
Yes, the transparent USB 2.0 extension supports HID devices (keyboards, mice), mass storage devices (flash drives, external hard drives), and RS-232 serial peripherals. This comprehensive USB support allows integration of diverse equipment without requiring additional drivers or configuration.
What audio capabilities does this KVM extender provide?
The system includes bi-directional audio transmission through a dedicated 3.5mm connection. This allows both audio output to speakers or headphones and microphone input to be extended alongside the video and USB signals, creating a complete workstation extension solution.
What is included in the package for installation?
The package contains a transmitter unit, receiver unit, two 5V 2A power supplies with US, EU, and UK plug types, two HDMI cables (4 feet each), two DisplayPort cables (4 feet each), one 3.5mm audio cable (6 feet), one USB-B to USB-A cable (6 feet), and two desk-mounting brackets with screws for secure installation.
