Black Box KVXLCHDPF-200 KVM Extender - 4K 3840 x 2160 - 2 Computer - 1 Local User - 98425.20 ft - 30 km Range
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

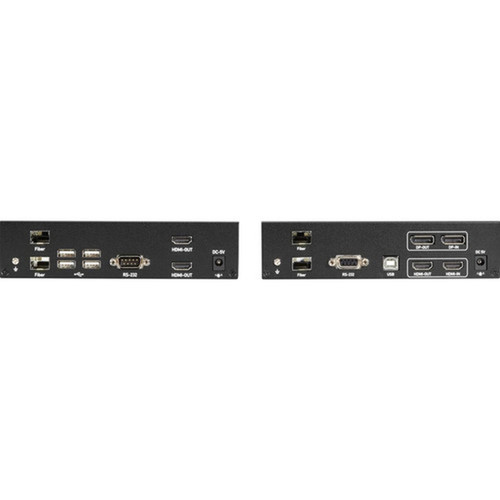

This KVM extender employs advanced signal processing to maintain video integrity across extreme distances. The transmitter unit captures video inputs from computers via HDMI or DisplayPort, encodes the signal, and transmits it over singlemode fiber optic cable. The receiver unit decodes the signal and outputs it to the user's local monitor while simultaneously extending USB and audio connections back to the remote computers.
Video transmission supports dual-head 4K resolution up to 3840x2160 at 30Hz refresh rate. The USB 2.0 extension is transparent to operating systems, supporting HID devices like keyboards and mice, mass storage devices, and other USB peripherals without requiring additional drivers. Bi-directional audio extension allows both microphone input and speaker output between the local station and remote computers.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVXLCHDPF-200 delivers exceptional value for organizations needing to separate users from computing equipment while maintaining full functionality. Its extreme 30-kilometer range enables flexible facility layouts, security implementations, and environmental isolation that shorter-range solutions cannot provide.
Ultra-Long Distance Operation
Extend KVM signals up to 98425.20 feet (30 kilometers) using standard singlemode fiber optic cabling, enabling secure separation of users from sensitive computing equipment.
- 30 km maximum distance
- Uses singlemode fiber
- Maintains signal integrity
Comprehensive Peripheral Support
Extend not just video but complete workstation functionality including USB 2.0 devices, RS-232 serial equipment, and bi-directional audio for complete remote control capability.
- USB 2.0 for HID and storage
- RS-232 serial port support
- Microphone and speaker audio
High-Resolution Video
Support 4K Ultra HD video at 3840x2160 resolution with 30Hz refresh rate, delivering crisp, detailed imagery for design work, monitoring, and content creation applications.
- 4K UHD resolution
- HDMI and DisplayPort inputs
- Local video loopback monitoring
Deployment / Use Cases
This KVM extender is designed for environments where computing equipment must be physically separated from user workstations due to space constraints, security requirements, or environmental factors. The 30-kilometer range provides unprecedented flexibility in facility design and equipment placement.
In data center applications, the extender allows administrators to control servers from a centralized console room while keeping noisy, heat-generating equipment in isolated racks. For industrial control systems, it enables operators to monitor and control machinery from safe, climate-controlled rooms while computers remain in harsh factory environments. Security-sensitive organizations can place classified computing equipment in secure areas while users work from ordinary office spaces.
Data Center Management
Centralize control of multiple server racks from a single administrator console while keeping equipment in optimized cooling zones and secure server rooms.
Industrial Control Rooms
Separate control room operators from factory floor computers, protecting workstations from dust, vibration, temperature extremes, and electromagnetic interference.

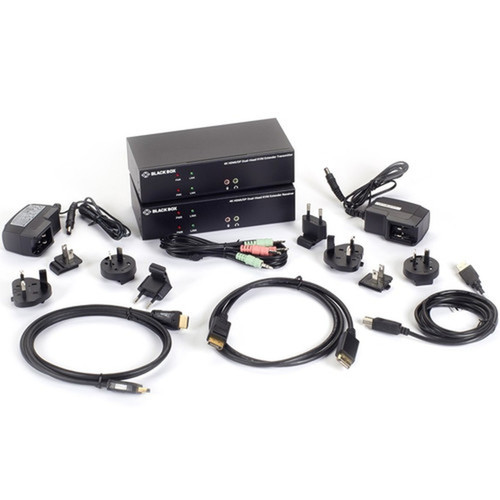

What's in the Box
The KVXLCHDPF-200 arrives complete with everything needed for immediate deployment. The package includes both transmitter and receiver units, power supplies with multiple plug types for global compatibility, essential cables for video and peripheral connections, and mounting hardware for secure installation.
Highlights
- Extends KVM signals up to 98425.20 feet (30 kilometers) over singlemode fiber
- Supports 4K Ultra HD video at 3840x2160 resolution with 30Hz refresh rate
- Connects 2 remote computers to 1 local user station simultaneously
- Provides transparent USB 2.0 extension for keyboards, mice, and storage devices
- Includes RS-232 serial port support for legacy industrial equipment
- Features bi-directional audio extension for microphone and speaker connections
- Offers local video loopback on transmitter for monitoring purposes
- Comes with international power supplies (US, EU, UK plug types included)
- Backed by 2-year limited warranty from Black Box
- TAA compliant and environmentally certified (WEEE, RoHS)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCHDPF-200 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Model | KVXLCHDPF-200 |
| Product Name | KVXLCHDPF-200 KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 98425.20 ft (30000000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 4 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 7.15" (181.61 mm) |
| Transmitter Depth | 3.25" (82.55 mm) |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 7.15" (181.61 mm) |
| Receiver Depth | 3.25" (82.55 mm) |
| Transmitter Weight (Approximate) | 385.6 g |
| Receiver Weight (Approximate) | 385.6 g |
| Miscellaneous | |
| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 2 x HDMI cables 1.2m (4 ft.) 2 x DisplayPort cables 1.2m (4 ft.) 1 x 3.5mm audio cable 1.8m (6 ft.) 1 x USB-B to USB-A cable 1.8m (6 ft.) 2 x Deskmounting brackets (with screws) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender can cover?
The Black Box KVXLCHDPF-200 extends KVM signals up to 98425.20 feet, which equals 30 kilometers. This extreme distance is achieved using singlemode fiber optic cabling between the transmitter and receiver units, making it suitable for separating equipment across buildings or within large facilities.
How many computers can I connect to a single local station?
This KVM extender supports connection to two remote computers from one local user station. The system allows the local user to switch between controlling either of the two connected computers while maintaining extended distance operation for both systems simultaneously.
What video resolutions and refresh rates does this extender support?
The extender supports 4K Ultra HD video at 3840x2160 resolution with a 30Hz refresh rate. It accepts both HDMI and DisplayPort inputs from source computers and outputs to local displays while maintaining video quality across the extended distance without compression artifacts.
Does this KVM extender support USB peripherals?
Yes, the KVXLCHDPF-200 provides transparent USB 2.0 extension that supports HID devices like keyboards and mice, mass storage devices such as flash drives and external hard drives, and other USB peripherals. The extension works without requiring additional drivers on the connected computers.
What type of cabling is required for the maximum distance?
To achieve the maximum 30-kilometer distance, you need standard singlemode fiber optic cabling between the transmitter and receiver units. The system is designed to work with common fiber infrastructure, making it compatible with existing data center and facility wiring.
What audio capabilities does this KVM extender provide?
The extender supports bi-directional audio extension, allowing both microphone input from the local user station to the remote computers and speaker output from the computers to the local station. This enables full voice communication and audio playback capabilities across the extended distance.
