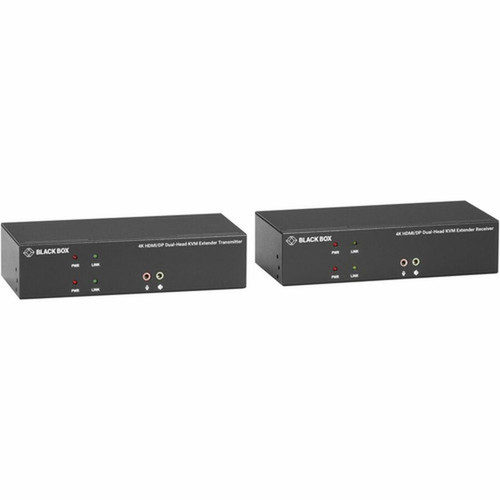

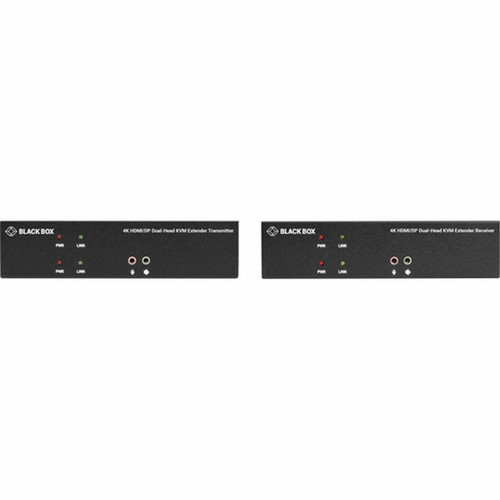

Black Box KVXLCHDPF-200-SFPBN1 KVX Series KVM Extender Kit over Fiber - 4K Dual-Monitor - HDMI/DisplayPort - USB 2. 0 - Serial - Audio - Local Video
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes fiber optic technology to transmit multiple signal types simultaneously while preserving quality. The system supports HDMI and DisplayPort video inputs with four HDMI ports and five USB 2.0 ports available for peripheral connectivity. Video transmission maintains 4K resolution at 60Hz refresh rates without compression artifacts, ensuring crisp visual output for detailed graphics work or multimedia presentations.
The extender incorporates local video support, allowing operators to view source content directly at the transmitter location when needed. Serial RS-232 connectivity enables integration with legacy industrial equipment or control systems. Audio transmission includes 3.5mm analog stereo support for complete multimedia extension. Power is supplied through compact 5V DC adapters included with international plug options for global deployment flexibility.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Device Type, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This KVM extender kit provides distinct advantages for organizations needing reliable long-distance signal extension without quality degradation. The fiber-based design eliminates distance limitations and interference issues associated with copper-based extenders, making it ideal for installations spanning multiple rooms, floors, or buildings.
Complete Signal Extension
Extends keyboard, video, mouse, USB 2.0, serial RS-232, and analog audio signals in a single solution, reducing cable clutter and simplifying installation.
- Simultaneous multi-signal transmission
- Reduced infrastructure complexity
- Unified management point
High-Resolution Visual Fidelity
Maintains 4K resolution at full 60Hz refresh rates without compression, ensuring professional-grade visual quality for CAD work, medical imaging, or financial trading displays.
- Pixel-perfect 4K transmission
- No latency or artifacts
- Color depth preservation
Deployment Flexibility
Includes international power adapters and comprehensive cabling for immediate deployment in diverse geographic locations without additional配件采购.
- Global power compatibility
- Pre-configured cable lengths
- TAA compliance for government use
Deployment / Use Cases
This fiber KVM extender kit addresses specific deployment scenarios where distance, signal integrity, and multi-signal management are critical. In control room environments, operators can position computer equipment in secure server rooms while extending control to ergonomic workstations hundreds of feet away. The dual-monitor support enables complex monitoring setups with multiple displays showing different data sources or applications.
For digital signage networks, this solution allows centralized content management systems to control remote displays across large facilities like airports, stadiums, or corporate campuses. The fiber transmission ensures reliable operation despite electrical interference from lighting systems, motors, or other industrial equipment. In educational institutions, instructors can share high-resolution content from a central media server to multiple classroom displays while maintaining local control capabilities.
Command and Control Centers
Extend secure workstation environments from equipment rooms to operator consoles with full peripheral support and uncompressed 4K video for situational awareness displays.
Professional AV Integration
Distribute high-resolution content from media servers to displays in auditoriums, conference rooms, or digital signage networks while maintaining signal quality over long distances.
What's in the Box
This complete kit includes all necessary components for immediate deployment without additional配件采购. Each package contains carefully selected cables and power options to support diverse installation requirements.
Highlights
- Extends KVM, USB, serial, and audio signals up to 1804.46 ft over fiber
- Supports 4K resolution at 3840 x 2160 with dual-monitor capability
- Includes four HDMI ports and five USB 2.0 ports for peripheral connectivity
- Features local video support for source monitoring at transmitter location
- Transmits DisplayPort and HDMI video inputs simultaneously
- Provides RS-232 serial connectivity for legacy equipment integration
- Includes international power adapters for global deployment flexibility
- TAA compliant for government and institutional procurement requirements
- Complete kit with all necessary cables and power supplies included
- Fiber optic transmission eliminates electromagnetic interference concerns
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCHDPF-200-SFPBN1 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Name | KVX Series KVM Extender Kit over Fiber - 4K, Dual-Monitor, HDMI/DisplayPort, USB 2.0, Serial, Audio, Local Video |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1804.46 ft (550000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |

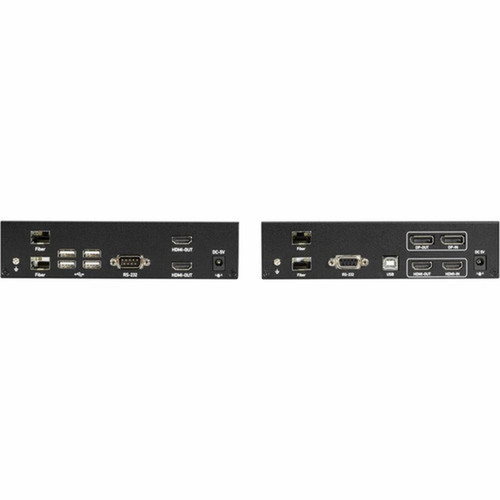

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 4 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Miscellaneous | |

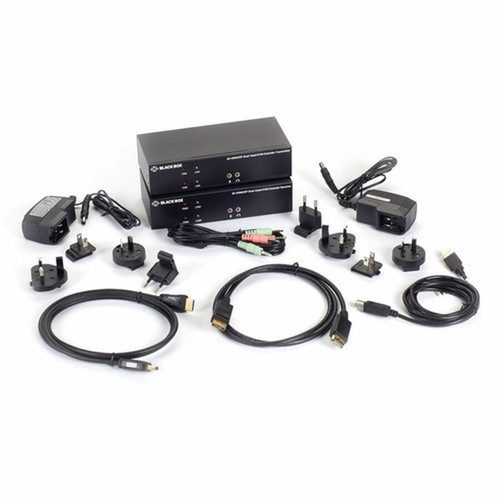

| Package Contents | (1) Transmitter (1) Receiver (2) 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types) (1) HDMI Cables 1.2m (4 ft.) (1) DisplayPort Cables 1.2m (4 ft.) (1) 3.5mm Audio Cable 1.8m (6 ft.) (1) USB-B to USB-A Cable 1.8m (6 ft.) |
| TAA Compliant | Yes |
FAQ
What maximum distance does this KVM extender support over fiber?
This Black Box KVX Series extender supports signal transmission up to 1804.46 feet (550 meters) over fiber optic cabling. This extended range makes it suitable for installations spanning multiple rooms, floors, or separate buildings while maintaining signal integrity without degradation.
What video resolutions and refresh rates does this extender support?
The extender supports 4K resolution at 3840 x 2160 pixels with 60Hz refresh rates. It maintains this high-resolution output without compression artifacts, ensuring professional-grade visual quality for detailed graphics work, medical imaging, financial trading displays, or multimedia presentations.
How many monitors can I connect to this KVM extender kit?
This kit supports dual-monitor configurations, allowing you to extend two separate displays simultaneously. With four HDMI ports available, you can connect multiple video sources or configure multi-display workstation setups for enhanced productivity in control room or trading floor environments.
What types of signals does this fiber extender transmit besides video?
Beyond video, this extender transmits keyboard and mouse signals via USB 2.0, serial RS-232 data for legacy equipment control, and analog audio through a 3.5mm connection. This comprehensive signal extension eliminates the need for separate extension solutions for different signal types.
What is included in the package for immediate deployment?
The complete kit includes a transmitter unit, receiver unit, two 5V 2A power supplies with US, EU, AU, and UK plug types, HDMI and DisplayPort cables (1.2m each), a 3.5mm audio cable (1.8m), and a USB-B to USB-A cable (1.8m). This comprehensive package enables immediate deployment without additional配件采购.
What does TAA compliance mean for this KVM extender?
TAA (Trade Agreements Act) compliance indicates this product meets U.S. government procurement requirements for secure and traceable hardware sourcing. This makes the extender suitable for government agencies, educational institutions, and other organizations with strict procurement regulations requiring products from designated countries.
