Black Box KVXLCF-100 LC100 Series KVM Extender - DVI Transmitter & Receiver Fiber Link - 1920 x 1200 - USB 2. 0 - 5V DC - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes fiber optic cabling to achieve a maximum operating distance of 98425.20 feet (30,000,000 mm), far exceeding traditional copper-based extenders. The system supports DVI-I/VGA video with EDID pass-through, ensuring compatible display detection and optimal resolution settings. The five USB 2.0 ports on the receiver unit allow connection of keyboards, mice, storage drives, and other peripherals with full plug-and-play functionality.

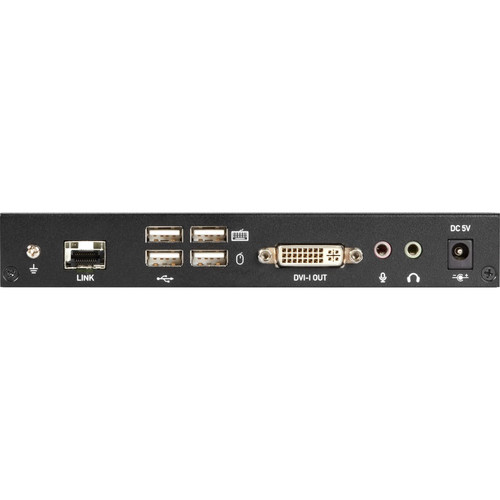

Audio support includes separate headphone and microphone connections via a combined 3.5mm cable, enabling clear two-way communication. The transmitter features a local DVI port loopback for on-site monitoring, while the receiver provides three DVI ports for flexible display configurations. Power is supplied via 5V DC adapters included with US, EU, and UK plug types for global compatibility.
Key Product Advantages
The KVXLCF-100 delivers reliable long-distance KVM extension with minimal signal degradation, thanks to its fiber optic transmission. This eliminates electromagnetic interference concerns common in industrial settings and provides superior distance capabilities compared to Cat5/Cat6 solutions.
High-Definition Video
Maintains crisp WUXGA resolution at 1920x1200 with 60Hz refresh rate over the entire fiber link, supporting professional graphics and monitoring applications.
- EDID pass-through for automatic display configuration

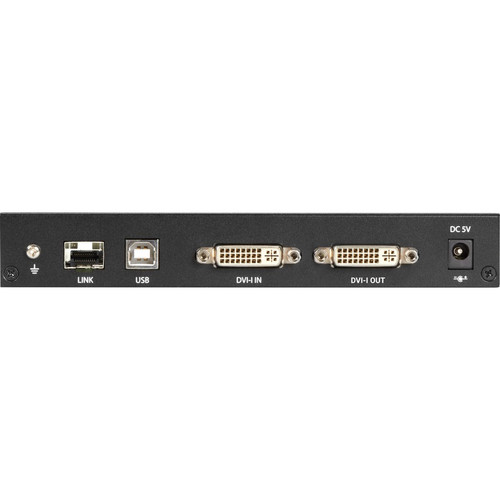

- Local DVI loopback on transmitter for diagnostics
Comprehensive Peripheral Support
Extends USB 2.0 for keyboards, mice, storage devices, and RS-232 serial equipment, plus dedicated audio connections for headsets and microphones.
- Transparent USB extension requires no drivers
- Supports HID devices and mass storage simultaneously
Deployment Flexibility
Desktop units with included mounting brackets can be placed on surfaces or secured to equipment. A rackmount kit is available separately for 1U installation in standard 19" racks.

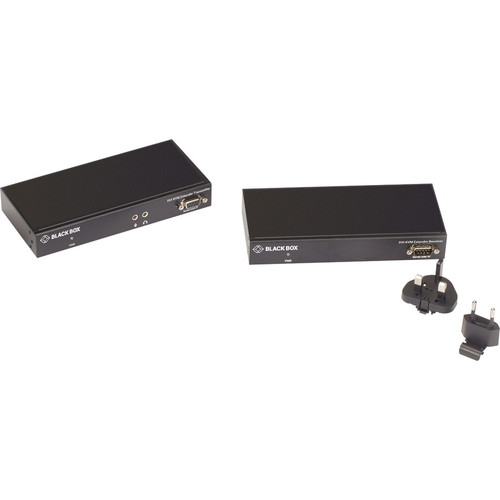

- Compact transmitter and receiver units
- International power supplies included
Deployment / Use Cases
This fiber KVM extender is engineered for environments where computers must be located far from user workstations or in secured areas. Its immunity to electrical noise makes it particularly valuable in manufacturing facilities, broadcast studios, and medical imaging suites where clean signal transmission is critical.
Common deployment scenarios include data center server access from a separate control room, extending a single computer to multiple monitoring stations in security operations centers, and isolating sensitive equipment in laboratory or industrial settings while maintaining full user control. The system's support for RS-232 serial devices extends its utility to legacy industrial equipment and specialized peripherals.
What's in the Box
The package includes all necessary components for immediate deployment:
Highlights
- Extends DVI video, USB 2.0, and audio over fiber optic cable up to 98425.20 ft
- Supports WUXGA resolution up to 1920x1200 at 60Hz with EDID pass-through
- Five USB 2.0 ports for keyboards, mice, storage devices, and RS-232 serial support
- Three DVI ports on receiver unit for flexible display configurations
- Bi-directional audio via 3.5mm headphone and microphone connections
- Local DVI port loopback on transmitter for monitoring and diagnostics
- Compact desktop form factor with included mounting brackets
- International power supplies with US, EU, and UK plug types included
- RoHS and WEEE compliant, TAA compliant for government procurement
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCF-100 |
| Brand Name | Black Box |
| Product Series | LC100 |
| Product Model | KVXLCF-100 |
| Product Name | LC100 Series KVM Extender - DVI, Transmitter and Receiver, Fiber |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 98425.20 ft (30000000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of USB Ports | 5 |
| Number of DVI Ports | 3 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Height | 1.06" (27 mm) |
| Transmitter Width | 7.09" (180 mm) |
| Transmitter Depth | 3.27" (83 mm) |
| Receiver Height | 1.06" (27 mm) |
| Receiver Width | 7.09" (180 mm) |
| Receiver Depth | 3.27" (83 mm) |
| Transmitter Weight (Approximate) | 350 g |
| Receiver Weight (Approximate) | 370 g |
| Miscellaneous | |

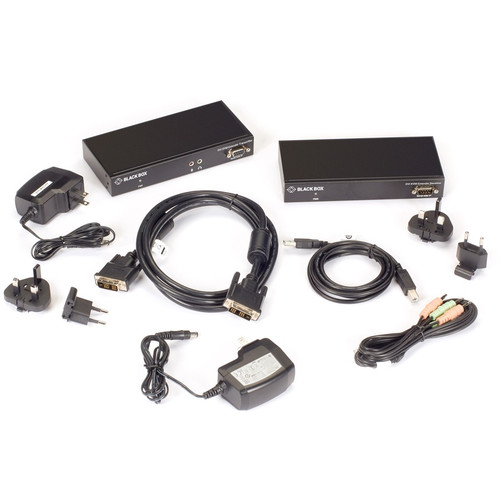

| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 1 x DVI-D Cable, M/M 1.8m (6 ft.) 1 x USB Type A to B Cable, M/M 1.8m (6ft.) 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.) 2 x Deskmounting brackets (with screws) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of cable does this KVM extender use for transmission?
The KVXLCF-100 uses fiber optic cable for signal transmission between the transmitter and receiver units. This provides superior distance capabilities up to 98425.20 feet (approximately 30 kilometers) with immunity to electromagnetic interference, making it ideal for industrial and data center environments.
What video resolution and refresh rate does this extender support?
This extender supports WUXGA resolution up to 1920 x 1200 at 60Hz refresh rate. It maintains this high-definition video quality over the entire fiber optic link with EDID pass-through functionality for automatic display configuration between the computer and monitor.
How many USB devices can I connect to the remote station?
The receiver unit provides five USB 2.0 ports for connecting peripherals such as keyboards, mice, external storage drives, and RS-232 serial devices. The USB extension is transparent and requires no additional drivers, supporting HID devices and mass storage simultaneously.
Does this system support audio transmission?
Yes, the KVXLCF-100 supports bi-directional audio transmission via a 3.5mm connection. The included audio cable carries both headphone (output) and microphone (input) signals, enabling full two-way audio communication between the computer and remote station.
What power requirements does this KVM extender have?
Both the transmitter and receiver units operate on 5V DC power. The package includes two 5V 2A power supplies with interchangeable US, EU, and UK plug types for international deployment flexibility. The low voltage operation makes it suitable for various electrical environments.
Can this extender be rack-mounted in a server cabinet?
While the units come in a desktop form factor with included desk-mounting brackets, a separate rackmount kit is available for 1U installation in standard 19" server racks. This provides deployment flexibility for both desktop and data center environments.
