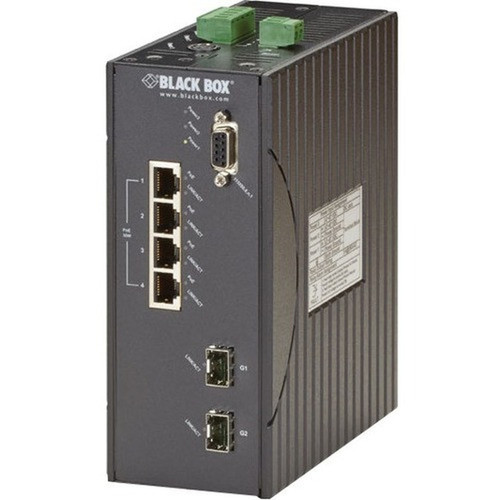

Black Box LEH1104A-2GSFP Hardened Managed Ethernet Switch - 4-Port 10/100 PoE+ - 2 SFP Slots - DIN Rail - DC Powered
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features a 4-port Fast Ethernet architecture with PoE+ capability, delivering up to 30W per port for powering connected devices such as IP cameras, wireless access points, or VoIP phones. The two Gigabit SFP slots provide flexible uplink options through 1000Base-X fiber or copper SFP modules, enabling high-speed backbone connections.
Layer 2 switching supports VLANs, QoS, and security features for traffic segmentation and prioritization. The manageable interface allows for configuration of port settings, monitoring, and diagnostics through standard networking protocols. Media compatibility includes twisted pair for copper connections and optical fiber through SFP modules.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The LEH1104A-2GSFP combines industrial durability with enterprise-grade networking features in a compact package. Its hardened design ensures reliable operation in environments with temperature fluctuations, vibration, or electrical noise, making it suitable for manufacturing floors, transportation systems, or outdoor installations.
Power over Ethernet+
Delivers both data and power through a single cable, simplifying deployment of powered devices while reducing wiring complexity and costs.
- Up to 30W per port
- Eliminates separate power supplies
- Supports IEEE 802.3at devices
Flexible Mounting Options
The DIN rail, rack-mountable, and panel-mountable design adapts to various installation scenarios without requiring specialized mounting hardware.
- Standard DIN rail compatible
- 19-inch rack mountable
- Panel mount for enclosure integration
Deployment / Use Cases
This switch excels in industrial automation environments where reliable networking must coexist with machinery, motors, and harsh conditions. Its PoE+ capability powers surveillance cameras and access points throughout manufacturing facilities while the SFP slots connect to fiber backbones spanning long distances between buildings.
Transportation networks deploy these switches in rail signaling systems, toll collection points, or airport baggage handling where vibration resistance and consistent performance are critical. The hardened construction also suits outdoor installations in weather-protected enclosures for traffic management systems, remote monitoring stations, or renewable energy facilities.
Industrial IoT Networks
Connects sensors, controllers, and HMIs across production lines with PoE for simplified wiring and managed switching for traffic control.
Critical Infrastructure
Provides reliable connectivity for security systems, access control, and monitoring equipment in utilities, transportation, and public safety applications.
Physical Profile
The switch measures 2.85" (72.39 mm) in height, 6.80" (172.72 mm) in width, and 5.60" (142.24 mm) in depth, with a weight of approximately 3.74 lb (1696.44 g). This compact footprint fits standard DIN rail enclosures or 19-inch rack shelves while leaving space for cable management and ventilation. The environmentally friendly construction meets industrial standards for durability and sustainability.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.85" (72.39 mm), 6.80" (172.72 mm), 5.60" (142.24 mm), 3.74 lb (1696.44 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.80" (172.72 mm)
- Depth
- 5.60" (142.24 mm)
- Height
- 2.85" (72.39 mm)
- Weight
- 3.74 lb (1696.44 g)
Highlights
- Four Fast Ethernet PoE+ ports deliver data and power to connected devices
- Two Gigabit SFP slots support fiber or copper uplink connections
- Hardened design withstands industrial environments with temperature and vibration
- Layer 2 managed switching with VLAN, QoS, and security features
- DIN rail, rack-mountable, and panel-mountable installation flexibility
- DC powered with PoE support for simplified deployment
- Redundant power supply capability enhances reliability
- 5-year limited warranty ensures long-term performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LEH1104A-2GSFP |
| Brand Name | Black Box |
| Product Model | LEH1104A-2GSFP |
| Product Name | Hardened Managed Ethernet Switch, (4) 10/100-Mbps PoE+, (2) GE SFP, DIN-Rail, DC |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100Base-TX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | PoE |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Panel-mountable |
| Height | 2.85" (72.39 mm) |
| Width | 6.80" (172.72 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 3.74 lb (1696.44 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
How many PoE+ ports does this switch have and what power do they deliver?
The Black Box LEH1104A-2GSFP has four Fast Ethernet ports with PoE+ capability. These ports comply with IEEE 802.3at standards, delivering up to 30W per port to power devices such as IP cameras, wireless access points, VoIP phones, or sensors without requiring separate power supplies at each endpoint.
What types of SFP modules are compatible with the two expansion slots?
The two Gigabit SFP slots support standard SFP modules for both copper and fiber connections. You can use 1000Base-T copper SFPs for twisted pair connections up to 100 meters, or 1000Base-X fiber SFPs for single-mode or multi-mode fiber connections, providing flexibility for different distance requirements and media types in your network backbone.
Is this switch manageable and what Layer does it support?
Yes, this is a fully manageable Layer 2 switch. It supports standard management protocols for configuration, monitoring, and diagnostics. Layer 2 features include VLANs for network segmentation, QoS for traffic prioritization, and security functions like port security and storm control, providing enterprise-grade network control in an industrial form factor.
What mounting options are available for installation?
The switch offers three mounting options: DIN rail mounting for industrial control panels, 19-inch rack mounting for standard network racks, and panel mounting for enclosure integration. This flexibility allows installation in various environments including manufacturing floors, network closets, or outdoor enclosures without requiring custom mounting hardware.
Does the switch support redundant power supplies?
Yes, the LEH1104A-2GSFP supports redundant power supply configurations. This feature enhances reliability in critical applications by allowing connection of a backup power source. If the primary power supply fails, the switch automatically switches to the redundant supply without interrupting network connectivity, minimizing downtime in industrial operations.
What is the warranty period for this industrial switch?
Black Box provides a 5-year limited warranty for the LEH1104A-2GSFP hardened managed Ethernet switch. This extended warranty reflects the product's industrial-grade construction and reliability expectations for continuous operation in demanding environments. The warranty covers defects in materials and workmanship under normal use conditions.
