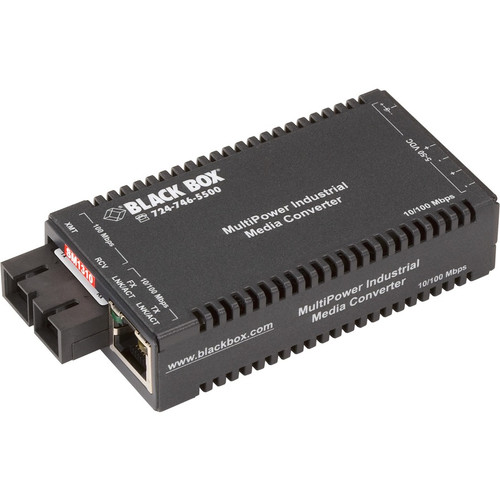

Black Box LIC025A-R3 Multipower Miniature Fiber to Copper Media Converter - 1x RJ-45 & 1x SC Duplex - Single-mode 1310nm - 40 km - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter implements Fast Ethernet technology with support for both 10/100Base-T copper Ethernet and 100Base-X fiber optic standards. The device features one RJ-45 port for copper connectivity and one SC duplex port for fiber optic connection, providing a total of two network interfaces. The SC port utilizes duplex configuration for bidirectional communication over single-mode fiber.
The converter operates at 1310 nm wavelength, which is standard for long-distance single-mode fiber transmission. It supports maximum distances of 40 kilometers (24.85 miles) when used with appropriate single-mode fiber cabling. The 9/125 µm fiber specification ensures compatibility with industry-standard single-mode fiber infrastructure commonly deployed in enterprise and service provider networks.
Key Product Advantages
The Black Box Multipower Miniature Media Converter delivers reliable fiber-to-copper conversion in a space-efficient package designed for demanding networking environments. Its industrial-grade construction and DIN rail mounting capability make it ideal for installations where rack space is limited or where equipment needs to be secured in control panels and network enclosures.
Extended Network Reach
Convert between copper Ethernet and fiber optic networks to extend connectivity up to 40 kilometers, overcoming distance limitations of traditional copper cabling while maintaining data integrity.
- Eliminates copper distance limitations
- Maintains signal quality over long runs
- Supports remote network segments
Industrial Deployment Ready
The DIN rail mountable form factor and compact dimensions enable installation in industrial control panels, network cabinets, and telecommunications equipment racks without consuming valuable rack space.
- Secure mounting on standard DIN rails
- Compact 1" × 2" × 4.70" footprint
- Industrial temperature tolerance
Deployment / Use Cases
This media converter is designed for network extension scenarios where copper Ethernet needs to connect to fiber optic backbone infrastructure. It serves as an economical solution for integrating legacy copper-based equipment with modern fiber optic networks while extending the reach of network segments beyond copper limitations.
Common deployment scenarios include connecting Ethernet devices in remote buildings to a central network over fiber, extending network connectivity between floors in large facilities, and integrating industrial Ethernet equipment into fiber-based campus networks. The converter is particularly valuable in manufacturing environments, educational campuses, healthcare facilities, and telecommunications installations where distance and interference resistance are critical factors.
Building-to-Building Connectivity
Connect Ethernet networks between separate buildings over single-mode fiber, overcoming distance limitations and electrical isolation requirements while maintaining network performance.
Industrial Network Integration
Integrate PLCs, HMIs, and other industrial Ethernet devices into fiber optic backbone networks within manufacturing plants and process control environments.
Physical Profile
The converter features a compact form factor measuring 1 inch in height, 2 inches in width, and 4.70 inches in depth (25.40 × 50.80 × 119.38 mm), with an approximate weight of 1.20 pounds (544.31 grams). The DIN rail mountable design includes clips for secure attachment to standard DIN rails, making it suitable for panel mounting in industrial control cabinets and network enclosures. The small footprint conserves valuable installation space while providing robust network conversion capabilities.
- Width
- 2" (50.80 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.20 lb (544.31 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter in your network environment.
Highlights
- Converts between 10/100Base-T Ethernet and single-mode fiber optic networks
- Supports maximum distance of 40 km (24.85 miles) over single-mode fiber
- Features 1× RJ-45 port and 1× SC duplex port for flexible connectivity
- Operates at 1310 nm wavelength with 9/125 µm fiber compatibility
- DIN rail mountable form factor for industrial and panel installations
- Compact dimensions: 1" × 2" × 4.70" (25.40 × 50.80 × 119.38 mm)
- Includes AC power supply and DIN rail mounting clips
- TAA compliant and RoHS/WEEE compliant for regulatory adherence
- Backed by 6-year limited warranty for long-term reliability
- Supports Fast Ethernet technology with up to 100 Mbps data transfer
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LIC025A-R3 |
| Brand Name | Black Box |
| Product Line | Multipower Miniature |
| Product Name | Multipower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1" (25.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.20 lb (544.31 g) |
| Miscellaneous | |
| Package Contents | Multipower Miniature Transceiver/Media Converter Clips for Mounting on DIN Rails AC Power Supply |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 6 Year |
User Manual
FAQ
What types of network connections does this media converter support?
This media converter supports conversion between 10/100Base-T copper Ethernet via its RJ-45 port and single-mode fiber optic connectivity via its SC duplex port. It handles Fast Ethernet technology with data transfer rates up to 100 Mbps, making it compatible with standard Ethernet networks and single-mode fiber infrastructure using 9/125 µm cabling.
What is the maximum distance supported by this fiber to copper converter?
The converter supports maximum distances of 40 kilometers (approximately 24.85 miles) when used with appropriate single-mode fiber optic cabling. This extended reach capability allows network segments to span between buildings or across large facilities while maintaining data integrity and performance over the fiber connection.
What type of fiber optic cable is compatible with this media converter?
This converter is designed for use with single-mode fiber optic cable featuring 9/125 µm core/cladding specifications. It operates at 1310 nm wavelength, which is standard for long-distance single-mode fiber transmission. The SC duplex interface requires standard SC connectors on both transmit and receive fibers for proper bidirectional communication.
How is this media converter mounted and powered in installation?
The converter features a DIN rail mountable form factor with included clips for secure attachment to standard DIN rails, making it ideal for panel mounting in industrial control cabinets and network enclosures. Power is supplied via the included AC power adapter, which provides reliable operation in commercial and industrial environments.
What are the physical dimensions of this media converter?
The converter measures 1 inch in height (25.40 mm), 2 inches in width (50.80 mm), and 4.70 inches in depth (119.38 mm), with an approximate weight of 1.20 pounds (544.31 grams). This compact footprint allows installation in space-constrained environments while the DIN rail mounting capability provides secure attachment in industrial settings.
What warranty and compliance certifications does this product include?
This media converter is backed by a 6-year limited warranty from Black Box, ensuring long-term reliability and support. The product is TAA compliant for government procurement, and meets environmental standards including RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment Directive) compliance. It is manufactured in Taiwan with environmentally friendly construction.
