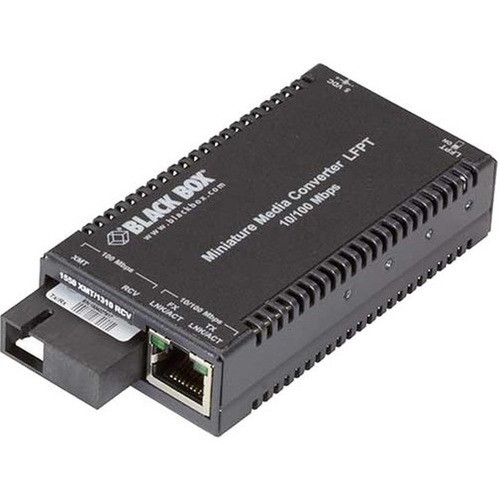

Black Box LHC029A-R4 Multipower Miniature Transceiver/Media Converter - 1x RJ-45 to 1x SC Simplex Single-mode - Fast Ethernet - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This converter operates on Fast Ethernet technology, delivering data transfer rates up to 100 Mbps across both 10/100Base-T copper and 100Base-X fiber interfaces. The fiber optic side supports single-mode transmission with wavelengths of 1310 nm and 1510 nm, utilizing standard 9/125 µm core/cladding fiber cables for optimal signal clarity over extended distances.
Power is supplied via an included 100-240 VAC, 50-60 Hz adapter, ensuring global compatibility and stable operation. The device's compact physical profile measures 1" (25.40 mm) in height, 2" (50.80 mm) in width, and 4.70" (119.38 mm) in depth, with an approximate weight of 1.20 lb (544.31 g), allowing for flexible deployment in space-constrained installations.
Key Product Advantages
The LHC029A-R4 excels in environments where reliable, long-distance network extension is critical. Its combination of robust construction, precise media conversion, and flexible mounting options delivers consistent performance for demanding applications.
Extended Reach
Supports fiber optic connections up to 20 km, eliminating the distance limitations of standard copper Ethernet and enabling network expansion across campuses, industrial sites, or between buildings.
- 20 km maximum distance
- Single-mode fiber compatibility
- Reduced signal degradation
Versatile Installation
Designed for both DIN rail and rack mounting, this converter integrates seamlessly into existing infrastructure without requiring custom brackets or extensive modifications.
- DIN rail mountable
- Rack-mountable design
- Compact footprint
Reliable Conversion
Provides seamless conversion between twisted pair and fiber optic media, maintaining Fast Ethernet speeds and ensuring data integrity across mixed-cable networks.
- Fast Ethernet technology
- SC simplex port
- RJ-45 connectivity
Deployment / Use Cases
This transceiver/media converter is ideal for scenarios where network segments need to traverse long distances or harsh environments that are unsuitable for copper cabling. Its robust design and precise conversion capabilities make it a dependable choice for industrial, commercial, and telecommunications deployments.
Common applications include extending network backbones between buildings in campus settings, connecting remote devices in manufacturing or utility plants, and integrating fiber optic segments into existing copper-based LANs for enhanced performance and reliability.
Industrial Network Expansion
Deploy in manufacturing facilities or utility plants to connect control systems, sensors, or PLCs across long distances where electromagnetic interference or environmental factors preclude copper cabling.
Campus Connectivity
Use to link buildings across educational, corporate, or healthcare campuses, leveraging fiber optic cabling for high-speed, low-latency connections between network switches or servers.
Physical Profile
The converter features a compact, industrial-grade enclosure with dimensions of 1" H x 2" W x 4.70" D, designed for efficient use of space in control panels or rack cabinets. Its DIN rail mountable form factor allows for quick, tool-less installation on standard rails, while the rack-mountable option provides flexibility for server room deployments. The unit's sturdy construction ensures durability in varied operating environments.
- Width
- 2" (50.80 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.20 lb (544.31 g)
- Length
- 1310 nm,1510 nm
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- Converts Fast Ethernet between 1x RJ-45 twisted pair and 1x SC simplex single-mode fiber.
- Supports transmission distances up to 20 km (12.43 miles) over fiber optic cable.
- Features DIN rail mountable and rack-mountable form factors for flexible installation.
- Operates with single-mode fiber at wavelengths of 1310 nm and 1510 nm.
- Includes a 100-240 VAC, 50-60 Hz power adapter for global compatibility.
- Backed by a 6-year limited warranty for long-term reliability.
- Compliant with RoHS and WEEE environmental standards.
- TAA compliant and manufactured in Taiwan.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC029A-R4 |
| Brand Name | Black Box |
| Product Line | Multipower Miniature |
| Product Name | Multipower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1510 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.20 lb (544.31 g) |
| Miscellaneous | |
| Package Contents | Multipower Miniature Transceiver/Media Converter 100-240-VAC, 50-60-Hz Adaptor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 6 Year |
FAQ

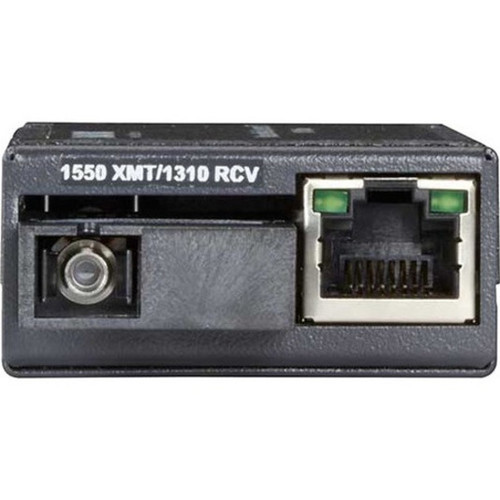

What types of connections does this media converter support?
This converter supports one RJ-45 port for twisted pair copper Ethernet connections and one SC simplex port for single-mode fiber optic connections. It converts Fast Ethernet signals between these two media types, enabling seamless integration of fiber segments into copper-based networks.
What is the maximum distance supported over fiber optic cable?
The converter supports fiber optic transmission distances up to 20 kilometers (approximately 12.43 miles) when using single-mode fiber with 9/125 µm core/cladding specifications. This extended reach is ideal for connecting network devices across large campuses, industrial sites, or between remote buildings.
Can this converter be mounted in a standard rack or DIN rail enclosure?
Yes, the converter is designed for both DIN rail mounting and rack mounting. Its compact dimensions of 1" H x 2" W x 4.70" D allow for flexible installation in control panels, server racks, or telecom cabinets without requiring additional brackets or modifications.
What power source is required for operation?
The converter includes a 100-240 VAC, 50-60 Hz power adapter, providing global compatibility with standard electrical outlets. This ensures stable operation in various regions without the need for external power converters or voltage adjustments.
Does this converter support Fast Ethernet speeds?
Yes, it operates on Fast Ethernet technology, supporting data transfer rates up to 100 Mbps across both 10/100Base-T copper and 100Base-X fiber interfaces. This ensures consistent performance for typical network applications requiring reliable, high-speed connectivity.
What environmental and compliance standards does this product meet?
The converter is environmentally friendly and complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards. It is also TAA compliant and manufactured in Taiwan, meeting regulatory requirements for government and commercial deployments.
