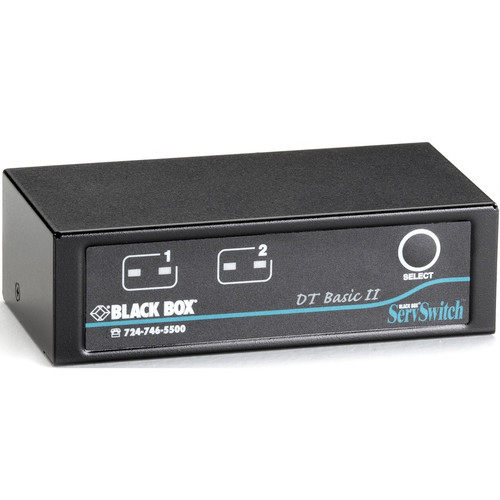

Black Box KV7022A-K ServSwitch DT Basic II 2-Port KVM Switch Kit - Desktop - VGA - PS/2 - 1920 x 1440
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

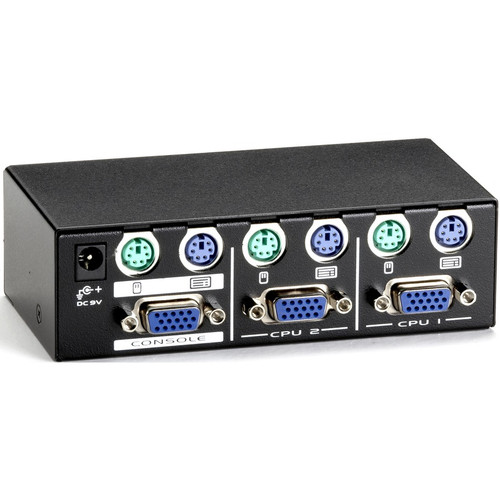

This KVM switch operates on analog technology, supporting two computers and one local user simultaneously. It provides three VGA ports and six PS/2 ports to accommodate the necessary connections for the console and both systems. The switch does not include USB, HDMI, DVI, or network (RJ-45) ports, keeping the design focused on traditional VGA and PS/2 interfaces.
Video performance reaches a maximum resolution of 1920 x 1440, suitable for standard monitors and basic graphical tasks. The desktop form factor ensures easy placement without requiring rack mounting or specialized installation hardware.
This section brings together practical product details such as KVM Technology, Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ServSwitch DT Basic II simplifies multi-computer management by enabling quick switching between two systems without physically accessing each device. This reduces clutter and improves workflow efficiency in environments where space is limited or frequent system access is required.
Immediate Deployment
The included kit contains all necessary cables and documentation for setup right out of the box, minimizing installation time.
- 2 x 6ft CPU cables included
- User manual provided
Legacy Interface Support
With VGA and PS/2 ports, this switch maintains compatibility with older monitors and peripherals, extending the life of existing hardware.
Deployment / Use Cases
This KVM switch is ideal for small-scale IT setups where two computers need to share a single console. Common applications include testing labs, help desk stations, security monitoring rooms, and office workstations where operators must alternate between systems for different tasks.
The desktop form factor makes it suitable for environments without rack infrastructure, such as small offices, educational labs, or home offices. Its straightforward analog operation requires no complex configuration, allowing even non-technical users to manage multiple systems efficiently.
Testing and Development Labs
Switch between a production system and a test system without moving between workstations.
Compact Office Setups
Manage a desktop and a server from one keyboard and monitor setup, saving space on crowded desks.
Physical Profile
The switch features a compact desktop design measuring 4.90" in width, 2.70" in depth, and 1.60" in height. This small footprint allows flexible placement on any desk surface or shelf. The unit is environmentally friendly and originates from Taiwan, backed by a one-year limited warranty for peace of mind.
- Width
- 4.90" (124.46 mm)
- Depth
- 2.70" (68.58 mm)
- Height
- 1.60" (40.64 mm)
What's in the Box
The kit includes all components required for immediate setup and operation.
Highlights
- Switch between 2 computers from a single console
- Supports VGA video up to 1920x1440 resolution
- Includes 6 PS/2 ports for keyboard and mouse connections
- Desktop form factor for easy placement on any surface
- Comes with two 6-foot CPU cables for immediate setup
- Analog KVM technology for straightforward operation
- Environmentally friendly design
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV7022A-K |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Model | KV7022A |
| Product Name | ServSwitch DT Basic II Kit, 2-Port |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| PS/2 Port | Yes |
| USB | No |
| HDMI | No |
| DVI | No |
| VGA | Yes |
| Number of PS/2 Ports | 6 |
| Number of VGA Ports | 3 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.60" (40.64 mm) |
| Width | 4.90" (124.46 mm) |
| Depth | 2.70" (68.58 mm) |
| Miscellaneous | |
| Package Contents | ServSwitch DT Basic II Kit, 2-Port 2 x 6ft ServSwitch Basic II CPU Cable User Manual |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many computers can this KVM switch support?
This KVM switch supports two computers, allowing you to control both systems from a single keyboard, monitor, and mouse setup. It is designed for dual-system environments where quick switching between sources is needed without physical access to each computer.
What video resolution does this switch support?
The switch supports a maximum video resolution of 1920 x 1440 through its VGA ports. This resolution is suitable for standard monitors and typical office or lab applications, providing clear display output for both systems connected to the KVM.
Does this KVM switch include USB ports?
No, this switch does not include USB ports. It uses PS/2 ports for keyboard and mouse connections, with six PS/2 ports available to accommodate the console and both connected systems. This makes it compatible with legacy peripherals that use PS/2 interfaces.
What is included in the package?
The package includes the ServSwitch DT Basic II 2-port KVM switch, two 6-foot ServSwitch Basic II CPU cables, and a user manual. These components provide everything needed for immediate deployment, allowing you to connect two computers to a single console right out of the box.
What is the form factor of this KVM switch?
This KVM switch has a desktop form factor, measuring 4.90" wide, 2.70" deep, and 1.60" high. It is designed to sit on a desk or shelf, making it suitable for environments without rack mounting infrastructure, such as small offices or labs.
What type of warranty comes with this product?
The product comes with a one-year limited warranty from Black Box. This warranty covers defects in materials and workmanship, providing assurance for your investment. The switch is also environmentally friendly and manufactured in Taiwan.
