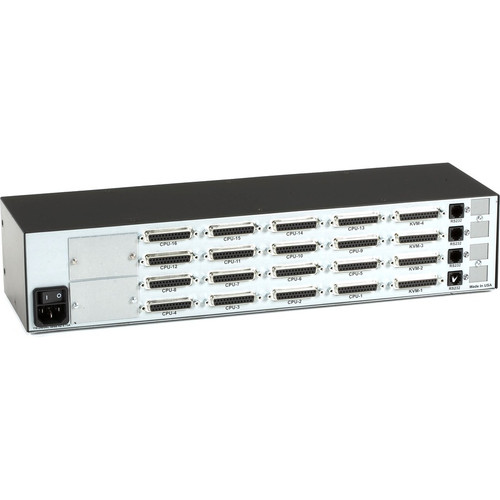

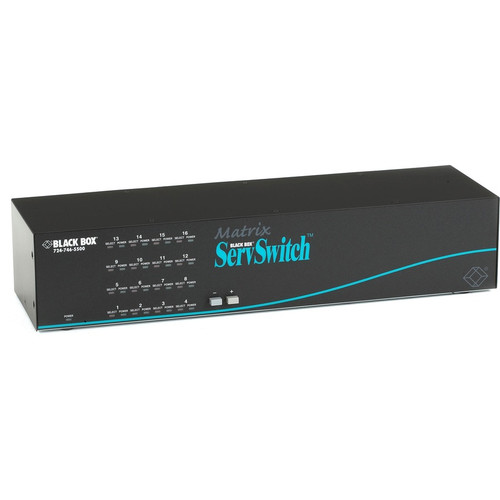

Black Box SW766A-R3 ServSwitch Matrix KVM Switch - 16-Computer Rack-Mountable 2U with Management Port
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch delivers robust technical specifications tailored for reliable performance in demanding settings. It supports 16 computers simultaneously, with a maximum operating distance of 100 ft (30480 mm) to accommodate flexible rack and server placements. The video capability reaches up to 1600 x 1280 resolution, ensuring clear display output for monitoring and management tasks.
Power is handled with dual-frequency support at 50 Hz and 60 Hz, compatible with standard electrical systems. The inclusion of a management port allows for remote administration and configuration, enhancing operational efficiency. Built in the United States with environmentally friendly considerations, the switch is backed by a 1-year limited warranty for added reliability.
Key Product Advantages
The ServSwitch SW766A-R3 offers distinct advantages for IT professionals seeking efficient and scalable KVM solutions. Its matrix design enables centralized access to multiple systems, reducing clutter and improving workflow in server environments.
Enhanced Management
The integrated management port provides remote control capabilities, allowing administrators to configure and monitor the switch without physical access to the rack.
- Remote configuration options
- Simplified IT oversight
Robust Compatibility
Designed to work seamlessly with Black Box Multiplatform Matrix ServSwitch models and expansion modules, ensuring easy integration into diverse setups.
- Cross-model support
- Scalable expansion
Deployment / Use Cases
This KVM switch is ideal for environments where multiple servers or computers require centralized management. Its rack-mountable form factor and 2U height make it suitable for standard server racks in data centers, IT closets, and network operations centers.
Common use cases include managing server farms, virtualization hosts, and test labs, where the ability to switch between 16 systems from a single console enhances productivity. The 100 ft operating distance supports flexible rack layouts, while the management port facilitates remote administration for off-site or distributed teams.
Data Center Management
Centralize control of server racks with up to 16 systems, reducing cable clutter and improving access for maintenance and monitoring.
IT Lab and Testing
Streamline operations in testing environments by quickly switching between multiple computers, supported by high-resolution video output.
Physical Profile
The switch features a compact and durable design with dimensions of 3.50" (88.90 mm) height, 16.50" (419.10 mm) width, and 4.90" (124.46 mm) depth, optimized for 2U rack mounting. Its weight of approximately 8 lb (3628.74 g) ensures stable installation without excessive load on rack rails. The rack-mountable form factor includes standard mounting hardware for secure placement in server enclosures, making it easy to integrate into existing infrastructure.
- Width
- 16.50" (419.10 mm)
- Depth
- 4.90" (124.46 mm)
- Height
- 2U
- Weight
- 8 lb (3628.74 g)
Highlights
- Supports up to 16 computers for centralized KVM management
- Maximum operating distance of 100 ft (30480 mm) for flexible placement
- Video resolution up to 1600 x 1280 for clear display output
- Rack-mountable 2U form factor for standard server rack installation
- Includes a management port for remote configuration and control
- Compatible with Black Box Multiplatform Matrix ServSwitch models and expansion modules
- Dual-frequency power support at 50 Hz and 60 Hz
- Manufactured in the United States with environmentally friendly design
- Backed by a 1-year limited warranty for reliability assurance
- Eliminates cable switching between sources to streamline IT operations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | SW766A-R3 |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Model | SW766A-R3 |
| Product Name | ServSwitch SW766A-R3 Matrix KVM Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 16 |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Video | |
| Maximum Video Resolution | 1600 x 1280 |
| Interfaces/Ports | |
| Management Port | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 16.50" (419.10 mm) |
| Depth | 4.90" (124.46 mm) |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Miscellaneous | |
| Compatibility | Black Box Multiplatform Matrix ServSwitch: SW761A-R4 SW763A-R4 SW767A-R4 SW769A-R4 Black Box ServSwitch Ultra Remote: ACR9002A ACR9004A Black Box SW740A-C-R3-B Matrix ServSwitch Expansion Module Black Box ServSwitch ACR9005A Remote Single-User |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many computers can the Black Box ServSwitch SW766A-R3 support?
The ServSwitch SW766A-R3 supports up to 16 computers simultaneously, allowing centralized management from a single KVM console. This capacity makes it suitable for server racks, data centers, and IT environments where multiple systems need efficient access without constant cable changes.
What is the maximum operating distance for this KVM switch?
This switch supports a maximum operating distance of 100 ft (30480 mm), providing flexibility in rack and server placement. This distance ensures reliable signal transmission between the connected computers and the KVM console, accommodating various layout configurations in data centers or server rooms.
Does the ServSwitch SW766A-R3 include a management port?
Yes, the ServSwitch SW766A-R3 features a management port for enhanced control and configuration. This port allows remote administration, enabling IT staff to monitor and adjust settings without physical access to the switch, which improves operational efficiency in distributed or secure environments.
What video resolution does this KVM switch support?
The switch supports a maximum video resolution of 1600 x 1280, ensuring clear and detailed display output for monitoring and management tasks. This resolution is suitable for standard server and desktop environments, providing adequate visual clarity for administrative interfaces and applications.
Is the ServSwitch SW766A-R3 rack-mountable?
Yes, the ServSwitch SW766A-R3 is designed with a rack-mountable form factor and a 2U rack height. Its dimensions of 3.50" height, 16.50" width, and 4.90" depth allow for easy installation in standard server racks, making it ideal for data center and IT infrastructure deployments.
What compatibility does this KVM switch have with other Black Box models?
The ServSwitch SW766A-R3 is compatible with Black Box Multiplatform Matrix ServSwitch models (SW761A-R4, SW763A-R4, SW767A-R4, SW769A-R4), ServSwitch Ultra Remote units (ACR9002A, ACR9004A), the SW740A-C-R3-B Matrix ServSwitch Expansion Module, and the ServSwitch ACR9005A Remote Single-User. This ensures seamless integration into existing Black Box KVM systems for scalable expansion.
