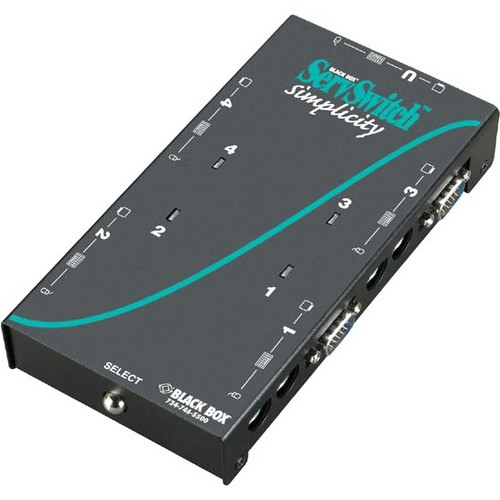

Black Box SW612A ServSwitch Simplicity 4-Port KVM Switch - Desktop/Wall Mountable - VGA/SVGA/XGA - 1024 x 768 - 10 ft Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SW612A provides connectivity for up to 4 computers through a combination of 10 PS/2 ports and 1 VGA port, enabling seamless switching between systems. It operates over a maximum distance of 10 ft (3048 mm), allowing for practical placement in various environments without signal degradation.
Built for reliability, this KVM switch maintains stable video output across supported resolutions and includes robust construction suitable for continuous use. Its technical design focuses on straightforward operation without complex configurations, making it accessible for IT professionals and general users alike.
This section brings together practical product details such as Number of Computers Supported, Maximum Operating Distance, Graphic Mode, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ServSwitch Simplicity SW612A offers several advantages for managing multiple computers efficiently. Its ability to support 4 systems reduces clutter and simplifies workspace organization, while the included mounting options provide installation flexibility.
Enhanced Productivity
Switch between computers instantly without replugging cables, saving time and reducing wear on connectors.
- Eliminates cable swapping
- Quick system access
- Reduced physical strain
Broad Compatibility
Works with VGA, SVGA, and XGA displays up to 1024 x 768 resolution, ensuring support for common office and legacy hardware.
- VGA/SVGA/XGA modes
- 1024x768 max resolution
- PS/2 keyboard/mouse support
Deployment / Use Cases
This KVM switch is well-suited for environments where multiple computers need centralized control without investing in separate peripherals for each system. Its 4-port capacity makes it ideal for small server racks, testing labs, or multi-workstation desks.
Common use cases include IT support desks for troubleshooting different machines, home offices with several PCs, and educational settings where instructors manage multiple demonstration units. The wall-mountable option allows for space-saving installations in tight server rooms or under-desk setups.
Physical Profile
The SW612A features a compact design measuring 7.10" (180.34 mm) in width, 3.80" (96.52 mm) in depth, and 1.20" (30.48 mm) in height, with an approximate weight of 1.40 lb (635.03 g). Its desktop or wall-mountable form factor includes rubber feet and VELCRO hook-and-loop strips for secure placement, ensuring stability in various orientations.
- Width
- 7.10" (180.34 mm)
- Depth
- 3.80" (96.52 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 1.40 lb (635.03 g)
What's in the Box
The package includes all necessary components for immediate setup and use.
Highlights
- Supports 4 computers with a single keyboard, video monitor, and mouse
- Maximum video resolution of 1024 x 768 for VGA, SVGA, and XGA modes
- Operating distance of up to 10 ft (3048 mm) for flexible placement
- Desktop or wall-mountable form factor with included mounting accessories
- Includes 10 PS/2 ports and 1 VGA port for comprehensive connectivity
- Compact dimensions: 7.10" x 3.80" x 1.20" and 1.40 lb weight
- Environmentally friendly design and made in the United States
- Backed by a 1-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | SW612A |
| Brand Name | Black Box |
| Product Name | ServSwitch Simplicity 4-Port KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Maximum Operating Distance | 10 ft (3048 mm) |
| Video | |
| Graphic Mode | VGA,SVGA,XGA |
| Maximum Video Resolution | 1024 x 768 |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of PS/2 Ports | 10 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.20" (30.48 mm) |
| Width | 7.10" (180.34 mm) |
| Depth | 3.80" (96.52 mm) |
| Weight (Approximate) | 1.40 lb (635.03 g) |
| Miscellaneous | |
| Package Contents | ServSwitch Simplicity 4-Port KVM Switch 4 x Rubber feet 2 x VELCRO hook-and-loop mounting strips Users' manual. |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
How many computers can I connect to this KVM switch?
The Black Box SW612A supports up to 4 computers, allowing you to control multiple systems from a single set of peripherals. This makes it suitable for small server setups, workstations, or testing environments where efficient space and cable management are needed.
What video resolutions and modes does this switch support?
This switch supports VGA, SVGA, and XGA graphic modes with a maximum video resolution of 1024 x 768. It ensures compatibility with a wide range of standard and legacy monitors, making it versatile for office, educational, or basic computing applications.
Can I mount this KVM switch on a wall?
Yes, the SW612A is designed for both desktop and wall mounting. The package includes VELCRO hook-and-loop strips and rubber feet, providing flexible installation options to save space and organize your setup efficiently in server rooms or under desks.
What is the maximum operating distance for this KVM switch?
The maximum operating distance is 10 ft (3048 mm), allowing for practical placement between computers and peripherals without signal loss. This distance supports typical office or server room layouts where equipment may be spaced apart.
What ports are included on this KVM switch?
The switch includes 10 PS/2 ports for keyboard and mouse connections and 1 VGA port for video output. This configuration supports the peripheral needs of up to 4 computers, enabling seamless switching between systems without additional adapters in most cases.
Does this product come with a warranty?
Yes, the Black Box ServSwitch Simplicity SW612A comes with a 1-year limited warranty, providing assurance of quality and reliability. It is also environmentally friendly and manufactured in the United States, aligning with sustainable and domestic production standards.
