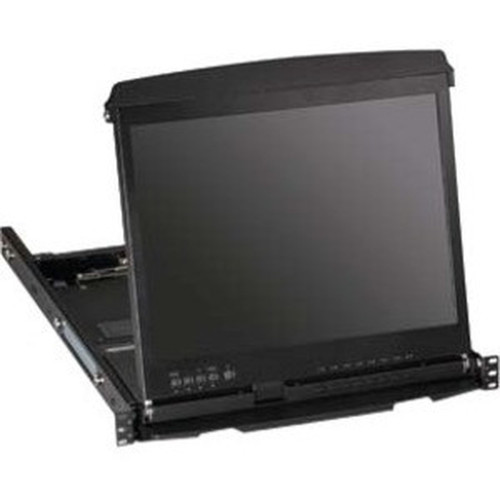

Black Box ServView KVT517A 17 Inch Rack Mount LCD Console For 8 Computers WUXGA Computer Keyboard S X KVT517A-8DV-WIDE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ServView KVT517A Rack Mount LCD
- 1 x KVM module with power supply
- 1 x universal rear rail kit (includes [2] brackets, [2] extenders, and [8] screws)
- 10 x 0.19-in. x 0.43-in. (0.5 x 1.1 cm) screws
- 10 x 0.12-in. x 0.24-in. (0.3 x 0.6 cm) screws
Number of Computers Supported: 8
Device Type: LCD Rack Console
Screen Size: 17" (431.80 mm)
Display Screen Type: LCD
Screen Mode: WUXGA
Screen Resolution: 1920 x 1200
Keyboard: Yes
Pointing Device Type: TouchPad
USB: Yes
DVI: Yes
Input Voltage: 12 V DC,120 V AC,230 V AC
Input Voltage Range: 100-240-VAC
Height: 1.70" (43.18 mm)
Width: 17" (431.80 mm)
Depth: 23.70" (601.98 mm)
Package Contents:
Environmentally Friendly: Yes
Country of Origin: Taiwan
Limited Warranty: 1 Year
- This dual-rail console drawer features keyboard, touch pad, and widescreen LCD monitor in 1U.
- The flip-open 17" , widescreen LCD panel supports resolutions up to 1920 x 1080 (1920 x 1200 scaled).
- Front-panel control and LED indicator make it easy to adjust display image.
- Provides a USB port on the front panel.
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVT517A-8DV-WIDE |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | ServView |
| Product Model | KVT517A |
| Product Name | ServView KVT517A Rack Mount LCD |
| Product Type | LCD Rack Console |
| Technical Information | |
| Number of Computers Supported | 8 |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Size | 17" (431.80 mm) |
| Display Screen Type | LCD |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Power Description | |
| Input Voltage | 12 V DC,120 V AC,230 V AC |
| Input Voltage Range | 100-240-VAC |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17" (431.80 mm) |
| Depth | 23.70" (601.98 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
