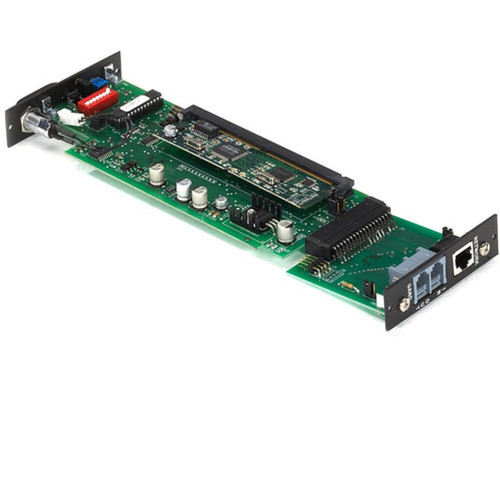

Black Box SM262A Switch Control Module - 1 x RJ-45 - 2 x RJ-11 Ports for Switching Network
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SM262A integrates directly into the Black Box Pro Switching SM260A Switch Chassis, serving as the primary control interface for switching operations. It utilizes a 3-port configuration with one RJ-45 Ethernet port and two RJ-11 ports to facilitate various control and communication methods.
The RJ-45 port enables remote access via SNMP, telnet, or web browser interfaces, allowing administrators to perform individual card switching, rack switching, and system gang switching from networked locations. The RJ-11 ports support RS-232 communications through Gang-In and Gang-Out connectors, enabling serial command control and external signaling integration.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SM262A delivers versatile switching control through multiple interface options and robust integration capabilities. Its design prioritizes both remote management flexibility and local control reliability.
Multi-Protocol Remote Access
The Ethernet port supports SNMP, telnet, and web browser access for comprehensive remote switching control across individual cards, racks, and entire systems.
- Individual card switching
- Rack switching
- System gang switching
Local and External Control Options
Front panel push-button switches provide manual control, while external +12 VDC signals or remote contact switches enable gang switching without network dependency.
- Front panel push-button switches
- +12 VDC external signal support
- Remote contact switch compatibility
System Integration and Security
RS-232 communications via Gang-In/Out connectors allow rack addressing and serial command control, with a key lock switch to secure manual switching operations.
- RS-232 serial communications
- Rack addressing capability
- Key lock security switch
Deployment / Use Cases
The SM262A is engineered for deployment in switching network environments where centralized control of multiple switching elements is required. It serves as the control interface within Black Box switching systems, enabling both local and remote management of switching operations.
Typical use cases include data center switching control, telecommunications infrastructure management, and industrial automation systems where reliable switching control is critical. The module's ability to support both networked and serial control methods makes it suitable for environments with mixed connectivity requirements or where network-independent control is necessary for redundancy.
Data Center Switching Control
Manage switching operations across server racks and network equipment from a centralized console or remote location using SNMP or web interfaces.
Industrial Automation Systems
Integrate switching control with existing automation infrastructure using RS-232 serial communications and external signaling options.
Highlights
- 3-port control module with 1 RJ-45 and 2 RJ-11 connectors
- Compatible with Black Box Pro Switching SM260A Switch Chassis
- Supports remote access via SNMP, telnet, or web browser
- Enables individual card, rack, and system gang switching
- Front panel push-button switches for local control
- External +12 VDC signal support for gang switching
- RS-232 communications through Gang-In and Gang-Out connectors
- Key lock switch for manual switching security
- TAA compliant for government procurement
- Environmentally friendly design with 1-year warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | SM262A |
| Brand Name | Black Box |
| Product Name | Switch Control Module |
| Product Condition | New |
| Product Type | Switch Control Module |
| Technical Information | |
| Application/Usage | Switching Network |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Connector Type | RJ-11,RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45,2 x RJ-11 |
| Miscellaneous | |
| Compatibility | Black Box Pro Switching SM260A Switch Chassis |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What chassis is the SM262A compatible with?
The SM262A is specifically designed for use with the Black Box Pro Switching SM260A Switch Chassis. It integrates directly into this chassis to provide switching control functionality. This compatibility ensures proper physical mounting, electrical connections, and system integration within the Black Box switching ecosystem.
What remote access methods does this module support?
The SM262A supports three primary remote access methods through its RJ-45 Ethernet port: SNMP (Simple Network Management Protocol), telnet, and web browser interfaces. These protocols allow network administrators to remotely control switching operations, including individual card switching, rack switching, and system gang switching from any connected location.
How many ports does the SM262A have and what are they for?
The module features three total ports: one RJ-45 Ethernet port and two RJ-11 ports. The RJ-45 port provides network connectivity for remote management protocols. The RJ-11 ports support RS-232 serial communications through Gang-In and Gang-Out connectors, enabling serial command control and integration with external signaling systems.
What is gang switching and how does this module support it?
Gang switching allows multiple switching elements to be controlled simultaneously as a group. The SM262A supports gang switching through three methods: remote control via network protocols, local control using front panel push-button switches, and external control using +12 VDC signals or remote contact switches. This flexibility enables coordinated switching operations across entire systems or racks.
What security features does the SM262A include?
The module includes a key lock switch on the rack that allows users to enable or disable manual switching operations. This physical security feature prevents unauthorized personnel from making manual switching changes while maintaining the ability for authorized personnel to perform local control when needed. The lock works in conjunction with the module's access control protocols.
Is the SM262A TAA compliant and what does that mean?
Yes, the SM262A is TAA (Trade Agreements Act) compliant. This compliance indicates that the product meets the requirements of the U.S. Trade Agreements Act, which governs procurement for federal government agencies and certain regulated industries. TAA compliance ensures the module is suitable for use in government contracts and other procurement scenarios requiring adherence to these regulations.
