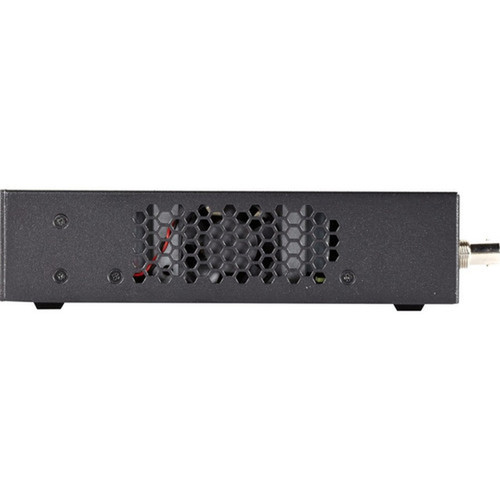

Black Box VSC-VPLEX4000 VideoPlex4000 Video Wall Controller - 4K HDMI - 4 Outputs - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VideoPlex4000 provides comprehensive video switching capabilities with two HDMI inputs, four HDMI outputs, and two DisplayPort outputs. This port configuration supports flexible source-to-display routing, allowing operators to switch both video and audio between sources without physical access to equipment.
The controller handles 4K graphics modes at 3840 × 2160 resolution, maintaining image quality across all connected displays. Two RJ-45 ports offer additional connectivity options for network-based control or extended signal transmission.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This video wall controller simplifies complex multi-display setups with intuitive switching and reliable performance. The rack-mountable design saves valuable space in equipment racks, while the comprehensive port selection accommodates diverse source and display combinations.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Resolution Support, Flexible Connectivity.
High-Resolution Support
Delivers 4K video quality across all connected displays with 3840 × 2160 resolution, ensuring sharp imagery for critical viewing applications.
- 4K graphics modes
- 3840 × 2160 maximum resolution
- HDMI 2.0 compatibility
Flexible Connectivity
Multiple HDMI and DisplayPort outputs provide versatile display options, while RJ-45 ports enable network control and extended connectivity.
- 4 HDMI outputs
- 2 DisplayPort outputs
- 2 RJ-45 control ports
Deployment / Use Cases
The VideoPlex4000 excels in environments requiring coordinated multi-screen displays with centralized control. Its switching capabilities make it ideal for control rooms where operators need to monitor multiple video sources simultaneously and switch between them seamlessly.
Digital signage installations benefit from the controller's ability to manage content across multiple displays from centralized sources. Security operations centers can utilize the camera support to monitor surveillance feeds across video walls, while corporate boardrooms can leverage the 4K resolution for high-quality presentations.
Control Room Applications
Centralizes video management for monitoring stations, allowing operators to switch between camera feeds, data displays, and video sources without interrupting workflow.
Digital Signage Networks
Manages content distribution across multiple displays in retail environments, transportation hubs, or corporate lobbies from a single control point.
Physical Profile
Designed for professional AV installations, the VideoPlex4000 features a compact rack-mountable form factor measuring 1.75" (44.45 mm) in height, 12.40" (314.96 mm) in width, and 6.70" (170.18 mm) in depth. The 4.10 lb (1.86 kg) unit installs easily in standard 19-inch racks using the included mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.75" (44.45 mm), 12.40" (314.96 mm), 6.70" (170.18 mm), 4.10 lb (1859.73 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.40" (314.96 mm)
- Depth
- 6.70" (170.18 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 4.10 lb (1859.73 g)
What's in the Box
The package includes all necessary components for immediate deployment of the video wall controller system.
Highlights
- Supports up to 3840 × 2160 4K resolution across all connected displays
- Manages video walls with up to four displays from three input sources
- Features two HDMI inputs and four HDMI outputs for flexible routing
- Includes two DisplayPort outputs for additional display connectivity
- Rack-mountable 1U form factor for professional AV installations
- Two RJ-45 ports enable network control and extended connectivity
- Switches both video and audio between sources without physical access
- Comes with comprehensive mounting hardware and cables
- Backed by a 3-year limited warranty for reliable performance
- Compliant with RoHS and WEEE environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VSC-VPLEX4000 |
| Brand Name | Black Box |
| Product Line | VideoPlex4000 |
| Product Name | VideoPlex4000 Video Wall Controller - 4K, HDMI |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Display,Camera |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| DisplayPort | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 4 |
| Number of DisplayPort Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 12.40" (314.96 mm) |
| Depth | 6.70" (170.18 mm) |
| Weight (Approximate) | 4.10 lb (1859.73 g) |
| Miscellaneous | |
| Package Contents | VideoPlex4000 Video Wall Controller - 4K, HDMI 1 x USB 2.0 Cable, Type A to Type B 1 x IEC-320 C13 to NEMA 5-15 Power Cable 6 x Rackmount Screws 6 x HDMI Cable Locks 6 x Cable Tie Wraps 1 x DVD 1 x Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United Kingdom |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution supported by the VideoPlex4000 controller?
The VideoPlex4000 supports 4K resolution at 3840 × 2160 pixels across all connected displays. This high-resolution capability ensures sharp, detailed imagery for video walls, control room monitors, and digital signage applications where image clarity is critical.
How many displays can this video wall controller support simultaneously?
This controller supports up to four displays simultaneously, making it suitable for 2×2 video wall configurations or multi-monitor setups. The four HDMI outputs provide direct connectivity to displays, while two DisplayPort outputs offer additional display options for mixed-interface environments.
What types of input devices are compatible with this controller?
The VideoPlex4000 supports displays and cameras as input devices, with capacity for three input sources total. This allows operators to switch between different video feeds, such as surveillance cameras, computer outputs, or media players, distributing content across the connected display array.
Is this controller rack-mountable for professional installations?
Yes, the VideoPlex4000 features a rack-mountable form factor designed for 19-inch equipment racks. With dimensions of 1.75" height, 12.40" width, and 6.70" depth, it occupies minimal rack space while including all necessary mounting hardware for secure installation in control rooms or server cabinets.
What connectivity options are available on this video wall controller?
The controller provides two HDMI inputs, four HDMI outputs, and two DisplayPort outputs for comprehensive video connectivity. Additionally, two RJ-45 ports enable network-based control and extended signal transmission. This port selection supports flexible routing between multiple sources and displays in professional AV environments.
What warranty coverage does Black Box provide for this product?
Black Box provides a 3-year limited warranty for the VideoPlex4000 video wall controller, ensuring reliable performance in professional applications. The product also complies with RoHS and WEEE environmental standards, reflecting the manufacturer's commitment to quality and environmental responsibility.
