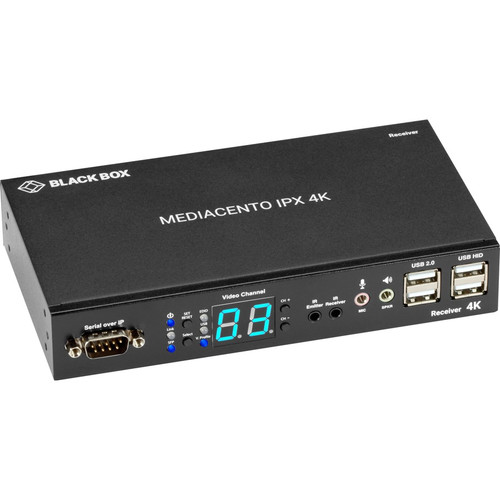

Black Box VX-HDMI-4KIP-RX 4K Receiver - HDMI - USB - Serial - IR - Audio Extender Over IP - 328 ft Range - Desktop Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

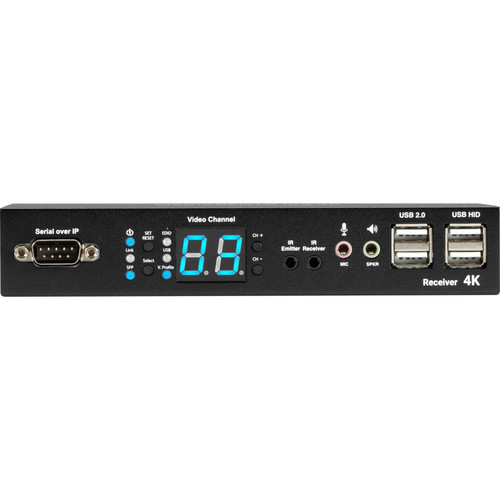

This receiver decodes compressed video streams transmitted over a LAN, reconstructing the signal with a maximum latency of just 2 frames (33ms), which is critical for real-time interactive applications like KVM and touchscreen control. The unit features a comprehensive port array including three HDMI outputs for local monitoring or daisy-chaining, four USB 2.0 ports supporting HID devices for keyboard, mouse, and touchscreen peripherals, and a dedicated RJ-45 network port for data and optional Power over Ethernet (PoE).
Advanced video processing includes 4K to 1080p downscaling for compatibility with lower-resolution displays and support for digital and analog audio embedding and extraction. The integrated serial (RS-232) and IR interfaces provide robust control pathways for system automation and device management.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Remote Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VX-HDMI-4KIP-RX transforms network infrastructure into a powerful AV distribution backbone, eliminating the cost and complexity of dedicated HDMI cabling over long distances. Its ability to leverage existing Gigabit Ethernet enables scalable deployments from single-room extensions to large-scale, multi-zone video walls.
Network-Based Flexibility
Route any source to any screen over your IP network. This enables centralized source equipment and flexible display placement far beyond the limits of direct HDMI cables, facilitated by standard network switches.
- Uses Cat5e/6/6a cabling
- Integrates with existing LAN infrastructure
- Enables source-to-display matrix switching over IP
Unified Signal Extension
Extend video, audio, data, and control signals simultaneously over a single Ethernet cable. This consolidated approach simplifies installation and reduces cable clutter while maintaining synchronized AV and peripheral control.
- HDMI video with embedded audio
- USB 2.0 for KVM and touchscreens
- Serial and IR for device control
Professional Video Wall Support
Drive expansive video wall configurations with support for setups up to 8x8 displays. The receiver's precise synchronization and scaling capabilities ensure seamless, bezel-corrected imagery across large multi-display installations.
- Creates video walls up to 64 displays
- Supports bezel management
- Enables large-format digital signage and control rooms
Deployment / Use Cases
This receiver is ideal for environments where high-quality AV signals must be distributed reliably over significant distances or to multiple endpoints. Its IP-based architecture is particularly suited for retrofitting existing buildings where running new HDMI cables is impractical or cost-prohibitive.
In corporate settings, it enables sleek conference rooms with hidden source equipment, while in retail or hospitality, it powers distributed digital signage networks from a central media server. For security and operations centers, it facilitates the creation of large video walls fed from remote PCs or servers, with full KVM control for operator workstations.
Digital Signage & Corporate AV
Deploy centralized media players to distribute 4K promotional content, corporate communications, or wayfinding information to dozens of displays across a campus or building, all managed via the network.
Command & Control Centers
Construct mission-critical video walls for surveillance, network operations, or financial trading. Extend PC outputs with ultra-low latency to large display arrays while maintaining responsive USB control for the source computers.
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Extends HDMI, audio, USB, serial, and IR signals over Gigabit Ethernet up to 328 ft.
- Supports 4K UHD resolution (4096x2160 @ 30Hz) and all 3D video formats.
- Features three HDMI ports, four USB 2.0 ports, and one RJ-45 network port.
- Enables video wall configurations up to 8x8 displays from a single source.
- Provides USB HID support for KVM control and touchscreen peripherals.
- Offers low-latency performance with a maximum delay of 2 frames (33ms).
- Includes 4K to 1080p downscaling for backward compatibility.
- Supports Power over Ethernet (PoE) to eliminate local power supplies.
- Backed by a 3-Year Double Diamond™ Limited Warranty.
- Compliant with RoHS, WEEE, and TAA regulations.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VX-HDMI-4KIP-RX |
| Brand Name | Black Box |
| Product Name | 4K Receiver - HDMI, USB, Serial, IR, Audio |
| Product Type | KVM Console |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 3 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 4 |
| Power Description | |
| Input Voltage | 48 V DC |
| Input Voltage Range | 36-57 V DC |
| Power Consumption | 10.50 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Receiver Height | 1.25" (31.75 mm) |
| Receiver Width | 3.58" (90.93 mm) |
| Receiver Depth | 7.34" (186.44 mm) |
| Receiver Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Package Contents | 1 x 4K Receiver - HDMI, USB, Serial, IR, Audio 1 x 5-VDC, 3-A Power Supply 1 x IR Receiver Cable 1 x IR Remote Control Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years Double Diamond™ Warranty (Standard) |
User Manual
FAQ
What signals does this Black Box receiver extend over the network?
This receiver extends HDMI video with embedded audio, USB 2.0 data (for keyboards, mice, and touchscreens), serial (RS-232) control commands, and bi-directional infrared (IR) signals. All these signals are encapsulated and transmitted over a standard Gigabit Ethernet network from a compatible transmitter unit to this receiver.
What is the maximum distance for signal extension with this unit?
The maximum supported operating distance is 328.08 feet (100 meters) over Cat5e/6/6a cable when used with a compatible Black Box transmitter on a Gigabit Ethernet network. This distance refers to the network cable run between the transmitter and this receiver, not including any additional network switch hops which can further extend the reach.
Does this receiver support Power over Ethernet (PoE)?
Yes, the receiver is designed to be powered via 48V DC Power over Ethernet (PoE) from a compatible switch or injector, which can eliminate the need for the included local power supply. Its input voltage range is 36-57 V DC, aligning with the 802.3at PoE+ standard. The included 5-VDC, 3-A power supply is provided for deployments where PoE is not available.
Can I use this receiver to create a video wall?
Yes, this receiver is capable of being used in video wall configurations. When paired with multiple receivers and the appropriate video wall processing software or a compatible Black Box transmitter system, it can help drive video wall setups up to 8 displays wide by 8 displays high (8x8). Each receiver typically drives one display within the wall.
What is the latency when extending 4K video with this receiver?
The system introduces a maximum latency of 2 video frames, which translates to approximately 33 milliseconds at 60Hz. This low latency is critical for maintaining real-time interactivity when using the extended USB ports for KVM control (keyboard, video, mouse) or touchscreen applications, ensuring there is no perceptible lag between user input and on-screen response.
What warranty comes with the Black Box VX-HDMI-4KIP-RX?
This product is covered by a 3-Year Double Diamond™ Limited Warranty from Black Box. This warranty provides protection against defects in materials and workmanship under normal use. Warranty service and support are handled directly by Black Box Corporation, and the product is TAA compliant, making it suitable for U.S. federal government procurement.
