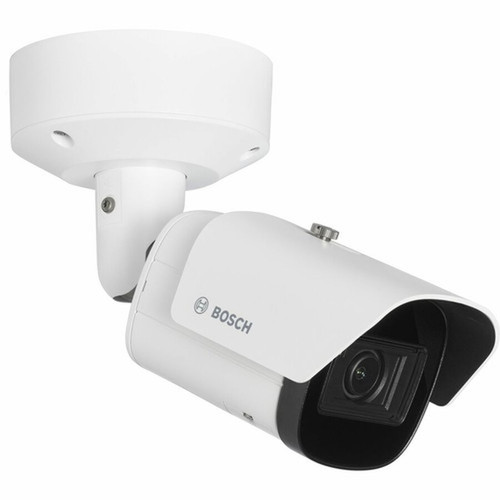

Bosch NBE-5704-AL Dinion 8MP Outdoor Bullet Network Camera - 4K HDR - 147. 64 ft IR - IP66/67 IK10 - Signal White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the NBE-5704-AL utilizes a 1/2.8" CMOS image sensor paired with a fixed 3.2-10.5mm varifocal lens, providing a field of view adjustable from 105° to 31° horizontally. The P-iris mechanism ensures optimal light control for consistent image quality. Video is encoded efficiently using H.264, H.265, and MJPEG formats at a maximum resolution of 3840 x 2160 and 30 frames per second, balancing detail with bandwidth and storage efficiency.
Network connectivity is provided via a wired Fast Ethernet interface with support for a comprehensive suite of protocols including IPv4/IPv6, HTTP/HTTPS, RTSP, and SNMP for seamless integration into existing security infrastructures. The camera supports remote management and features multiple storage options, including local recording via memory card. Power flexibility is a key strength, accepting 12V DC, 24V AC, or Power over Ethernet (PoE) for simplified installation.
Key Product Advantages
The Dinion camera series is recognized for delivering professional-grade image intelligence and rugged reliability. This model combines several advanced technologies to reduce false alarms and provide actionable security insights.
Superior Low-Light Performance
Starlight technology and a sensitive CMOS sensor enable clear monochrome and color imaging in near-total darkness, augmented by intelligent IR illumination.
- Excellent low-light sensitivity
- Built-in IR LED with long range
- Automatic day/night switching
Intelligent Video Analytics
IVA Pro uses deep learning to accurately distinguish between people, vehicles, and other objects, enabling precise event detection and reducing nuisance alerts.
- Human and vehicle detection
- High reliability in complex scenes
- Reduces operator workload
Extreme Environmental Protection
Rated IP66/67 for dust and water resistance and IK10 for impact resistance, this camera is built to withstand harsh outdoor conditions and potential vandalism.
- Water and dust resistant
- High impact protection
- Wide operating temperature range
Deployment / Use Cases
The Bosch NBE-5704-AL is ideally suited for perimeter security, parking lots, building entrances, and other outdoor areas requiring detailed, 24/7 surveillance. Its 4K resolution provides the pixel density necessary for identifying faces, license plates, and other critical details at greater distances, making it effective for covering large open spaces.
The combination of intelligent analytics and rugged construction makes it a prime choice for critical infrastructure, transportation hubs, commercial properties, and industrial sites. The PoE capability allows for deployment in locations where running separate power lines is challenging, simplifying the installation process and reducing overall system costs. Its protocol support ensures compatibility with most Video Management Systems (VMS) and Network Video Recorders (NVRs).
Physical Profile
Encased in a durable Signal White bullet housing, the camera measures 3.82 inches (97 mm) in height and 5.83 inches (148 mm) in diameter, with a weight of approximately 5.51 pounds (2500 grams). This form factor is designed for stable mounting on walls, poles, or eaves. The robust construction includes resistance to rain, water, dust, and impacts, ensuring long-term operation in exposed environments. The finish and color are chosen for durability and discreet appearance in typical outdoor settings.
- Height
- 3.82" (97 mm)
- Weight
- 5.51 lb (2500 g)
- Length
- 3.2 mm (0.13")
Highlights
- 8 Megapixel resolution for detailed 4K Ultra HD video
- Starlight technology for exceptional low-light and night performance
- Intelligent Video Analytics (IVA) Pro with deep-learning-based person/vehicle detection
- High Dynamic Range (HDR) to capture detail in high-contrast scenes
- Built-in IR illuminator with a range up to 147.64 ft (45 m)
- Rugged IP66/67 and IK10-rated outdoor housing
- Flexible power via 12V DC, 24V AC, or Power over Ethernet (PoE)
- Wide 105° to 31° adjustable horizontal field of view
- Supports H.265, H.264, and MJPEG video compression
- Operates in extreme temperatures from -40°F to 131°F (-40°C to 55°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NBE5704AL |
| Brand Name | Bosch |
| Product Line | Dinion |
| Product Series | 5100i |
| Product Model | NBE-5704-AL |
| Product Name | NBE-5704-AL Bullet 8MP HDR 3.2-10.5mm IP66/67 IK10 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 147.64 ft (45 m) |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color,Monochrome |
| Field of View | Horizontal: 105° - 31°, Vertical: 57° - 18° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.265/HEVC,H.264 (ISO/IEC 14496) |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10.5 mm (0.41") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/15000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,ICMP,ICMPv6,RTSP,FTP,ARP,DHCP,APIPA,NTP,SNTP,SNMPv1 (MIB2),SNMPv3 (MIB2),IEEE 802.1X,EAP/TLS,DNS,DNSv6,DDNS,SMTP,iSCSI,UPnP (SSDP),DiffServ (QoS),LLDP,SOAP,CHAP,Digest Authentication |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10.59 W |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Signal White |
| Form Factor | Bullet |
| Durability | Rain Resistant,Water Resistant,Dust Resistant,Impact Resistant |
| Height | 3.82" (97 mm) |
| Diameter | 5.83" (148 mm) |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 93% |
| Miscellaneous | |
| Features | Day/Night,Human Detection,Vehicle Detection,Ingress Protection,Built-in Microphone,Back Light Compensation (BLC),White Balance,Built-in IR LED,Privacy Masking,Alarm Triggering |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the resolution and video quality of this Bosch camera?
The Bosch Dinion NBE-5704-AL captures video at 8 megapixel resolution, which equates to 3840 x 2160 pixels, also known as 4K Ultra HD. This high resolution provides exceptional detail, allowing for clear identification of subjects and objects at a distance. It records at up to 30 frames per second for smooth motion and supports HDR (High Dynamic Range) to preserve details in both very bright and very dark areas of the image simultaneously.
How does the night vision work and what is its effective range?
The camera employs a combination of Starlight sensor technology for superior low-light sensitivity and a built-in intelligent infrared (IR) illuminator. In low-light conditions, it can operate in color or switch to a high-sensitivity monochrome mode. The IR illuminator actively projects light invisible to the human eye, providing clear monochrome video in total darkness with an effective illumination range of up to 147.64 feet (45 meters).
Is this camera suitable for outdoor use in harsh weather?
Yes, the NBE-5704-AL is specifically designed as an outdoor camera. It carries an ingress protection rating of IP66 and IP67, meaning it is completely dust-tight and protected against powerful jets of water and temporary immersion. It also has an impact protection rating of IK10, offering high resistance against physical impacts and vandalism. It operates reliably in temperatures from -40°F to 131°F (-40°C to 55°C) and up to 93% humidity.
What power options are available for installation?
This camera offers flexible power input options to simplify installation. It can be powered using a standard 12V DC power supply, a 24V AC source, or via Power over Ethernet (PoE). PoE is particularly convenient as it allows you to deliver both data and power over a single Ethernet cable, reducing wiring complexity and cost, especially for installations at height or in difficult-to-reach locations.
Does this camera include intelligent detection features?
Yes, it features Bosch's Intelligent Video Analytics (IVA) Pro. This is a deep-learning-based analytics engine that can accurately detect and classify objects. It is specifically tuned for reliable detection of persons and vehicles, helping to filter out irrelevant motion like moving foliage or animals. This reduces false alarms for security operators and allows for more precise event-based recording and alerting.
What are the connectivity and storage options for this network camera?
The camera connects via a wired Fast Ethernet (10/100 Mbps) network port. It supports a wide array of standard network protocols for easy integration with most VMS and NVR systems. For local storage, it includes a slot for a memory card (microSD), allowing for onboard recording in addition to or as a backup for network recording. It also features a USB port for additional configuration or maintenance tasks.
