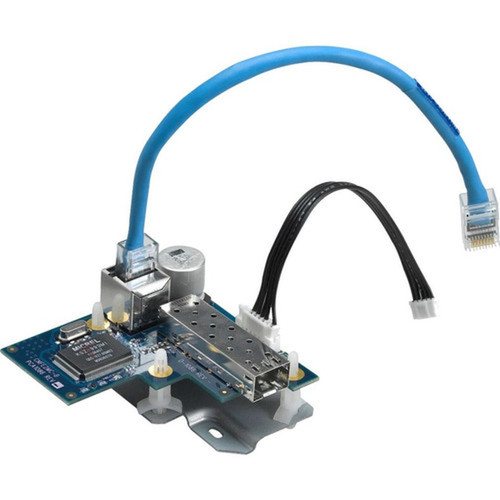

Bosch VG4-SFPSCKT Ethernet to SFP Interface Kit - Fast Ethernet Media Converter - 1 Port - 20 km Distance - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This interface kit operates as a Fast Ethernet transceiver, converting electrical signals from an RJ-45 port to optical signals through an SFP slot. It supports both optical fiber and twisted pair media, with a maximum reach of 20 kilometers over fiber, making it suitable for extending network segments beyond typical copper limitations.
The device features a single RJ-45 port for copper connectivity and one SFP expansion slot for fiber optic modules. Power is supplied via AC input, ensuring stable operation in continuous-use scenarios. Network compatibility includes 10/100Base-T for copper and 10/100Base-X for fiber, maintaining interoperability with standard Fast Ethernet equipment.
Key Product Advantages
The Bosch VG4-SFPSCKT simplifies network integration by converting between copper and fiber media without requiring separate adapters or complex configurations. Its dual mounting options and compact size allow for seamless deployment in space-constrained racks or surface installations.
Extended Network Reach
Supports distances up to 20 kilometers over optical fiber, overcoming the limitations of traditional copper cabling for long-range network segments.
- Minimizes signal loss over distance
- Enables fiber backbone connections
Flexible Installation
Rack-mountable and surface-mountable design provides multiple mounting choices to fit various network cabinet layouts or wall-mounted setups.
- Saves rack space with compact dimensions
- Simplifies integration into existing infrastructure
Media Compatibility
Converts between twisted pair and optical fiber, allowing mixed-media networks to operate cohesively with standard Fast Ethernet speeds.
- Reduces cable replacement costs
- Supports gradual network upgrades
Deployment / Use Cases
This interface kit is ideal for extending Fast Ethernet networks across buildings or campuses where fiber optic cabling is already installed or planned. It enables cost-effective connectivity between copper-based edge devices and fiber backbones without upgrading entire network segments.
Common applications include connecting remote offices over fiber links, integrating industrial Ethernet equipment in manufacturing plants, and expanding surveillance or access control systems across large facilities. The rack-mountable option makes it suitable for data center patching or network closet installations where organized cable management is required.
Campus Network Expansion
Use to link separate buildings via existing fiber infrastructure while maintaining Fast Ethernet compatibility for end-user devices and network equipment.
Industrial Ethernet Integration
Deploy in factory settings to connect machinery with copper ports to fiber optic networks, ensuring reliable communication in electrically noisy environments.
Physical Profile
The Bosch VG4-SFPSCKT features a compact chassis measuring 1.50 inches in height, 2.80 inches in width, and 2.91 inches in depth, allowing efficient use of rack space or discreet surface mounting. Its dual form factor supports both standard rack ears and direct surface attachment, providing installation flexibility for tight network cabinets or wall-mounted enclosures.
- Width
- 2.80" (71 mm)
- Depth
- 2.91" (74 mm)
- Height
- 1.50" (38 mm)
Highlights
- Converts Fast Ethernet between twisted pair copper and optical fiber media
- Supports distances up to 20 kilometers over fiber for extended network reach
- Single RJ-45 port and one SFP expansion slot for flexible connectivity
- Rack-mountable and surface-mountable form factor for versatile installation
- 10/100Base-T and 10/100Base-X network technology compatibility
- AC power source for reliable operation in continuous-use environments
- Compact dimensions optimize space in network cabinets or enclosures
- Enables mixed-media network integration without replacing existing cabling
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | VG4-SFPSCKT |
| Brand Name | Bosch |
| Product Model | VG4-SFPSCKT |
| Product Name | Ethernet to SFP Interface Kit |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,10/100Base-X |
| Power Description | |
| Power Source | AC |
| Physical Characteristics | |
| Form Factor | Surface-mountable,Rack-mountable |
| Height | 1.50" (38 mm) |
| Width | 2.80" (71 mm) |
| Depth | 2.91" (74 mm) |
User Manual
FAQ
What types of media does this interface kit support?
The Bosch VG4-SFPSCKT supports both optical fiber and twisted pair copper media. It converts Fast Ethernet signals between these cable types, allowing networks to use fiber for long-distance segments while maintaining copper connectivity for end devices.
What is the maximum distance supported over fiber?
This media converter supports distances up to 20 kilometers (approximately 12.43 miles) when using optical fiber. This extended reach makes it suitable for connecting network segments across buildings or campuses where copper cabling would be impractical.
Can this device be mounted in a standard network rack?
Yes, the interface kit is rack-mountable and includes mounting hardware for standard 19-inch racks. It also supports surface mounting for wall or enclosure installations, providing flexibility for various deployment scenarios.
What Ethernet speeds does this converter support?
The device supports Fast Ethernet speeds up to 100 Mbps, compatible with both 10/100Base-T for twisted pair and 10/100Base-X for fiber optic connections. It is designed for networks requiring reliable media conversion at standard Fast Ethernet rates.
Does this kit include an SFP module?
No, the Bosch VG4-SFPSCKT is an interface kit that provides the SFP slot for a compatible optical transceiver module. You will need to purchase an appropriate SFP module separately based on your fiber type and distance requirements.
What power source is required for operation?
The converter uses an AC power source, which is included with the kit. This ensures stable power delivery for continuous operation in professional networking environments without relying on PoE or other auxiliary power methods.
