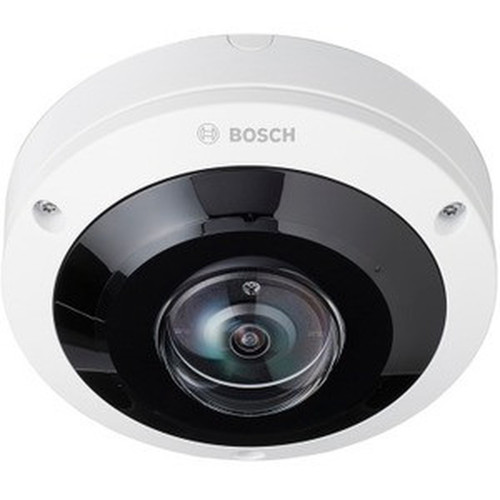

Bosch NDS-5704-F360LE FlexiDome 5100i IR 12MP Indoor/Outdoor Dome Camera - 1080p Full HD - 65. 62 ft IR Night Vision - IP66 IK10 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.3" CMOS image sensor that captures 12-megapixel still images and streams Full HD 1080p video at up to 30 frames per second. The sensor supports both color and monochrome imaging, with advanced features including Wide Dynamic Range (WDR) for challenging lighting conditions, Region of Interest (ROI) for bandwidth optimization, and electronic PTZ (ePTZ) for digital pan/tilt/zoom functionality.
Video compression is handled through efficient H.265, H.264, and MJPEG codecs, reducing storage requirements while maintaining image quality. The fixed 1.3mm lens with f/2.0 aperture provides a wide-angle view, while adjustable shutter speeds from 1/500 to 1/25 second accommodate various lighting scenarios. Network connectivity is delivered through Gigabit Ethernet with support for IPv4/IPv6, TCP/IP, HTTP/HTTPS, and 802.1X authentication, ensuring compatibility with modern network security standards.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FlexiDome 5100i IR distinguishes itself through exceptional environmental durability and advanced imaging features that deliver reliable performance in diverse surveillance scenarios. The combination of high-resolution imaging, extended night vision, and robust construction makes this camera a versatile solution for perimeter security, parking lots, retail environments, and industrial facilities.
Extended Environmental Resilience
With IP66 rating against dust and water ingress, plus IK10 vandal resistance, this camera withstands harsh weather conditions and physical tampering attempts. The operating temperature range of -40°F to 122°F (-40°C to 50°C) ensures reliable performance in extreme climates.
- Weather resistant
- Vandal resistant
- UV resistant
- Impact resistant
Intelligent Video Analytics
Built-in analytics capabilities include privacy masking, cross line detection, and noise detection, enabling automated monitoring without constant human supervision. These features help reduce false alarms and focus attention on relevant security events.
- Privacy masking zones
- Virtual tripwire detection
- Audio anomaly detection
- Motion-based alerts
Deployment / Use Cases
The Bosch NDS-5704-F360LE is designed for professional surveillance installations where comprehensive coverage and environmental durability are paramount. Its dome form factor provides discreet monitoring while the white finish blends with most architectural environments. The camera's multiple mounting options—including surface, junction box, gang box, and conduit mounting—offer installation flexibility for both new construction and retrofit projects.
Typical deployment scenarios include retail stores for loss prevention, manufacturing facilities for safety monitoring, educational campuses for perimeter security, and transportation hubs for public safety. The camera's PoE capability simplifies installation by delivering both power and data over a single Ethernet cable, reducing wiring complexity and costs. For temporary installations or locations without network infrastructure, the SD card local storage option provides recording capability without network video recorder (NVR) dependency.
Commercial Retail Security
Ideal for monitoring entrances, cash registers, and inventory areas with clear 1080p video evidence. The wide 182° view reduces the number of cameras needed for comprehensive coverage.
- High-resolution evidence capture
- Wide area coverage
- Discreet dome design
- Vandal resistance
Industrial Facility Monitoring
Suitable for harsh industrial environments with temperature extremes, moisture, and potential physical impacts. The IP66 and IK10 ratings ensure continued operation in challenging conditions.
- Extreme temperature operation
- Weatherproof construction
- Impact resistant housing
- Corrosion resistant materials
Physical Profile
This dome camera features a compact design measuring 2.76 inches (70 mm) in height and 5.83 inches (148 mm) in diameter, with a weight of approximately 1.81 pounds (820 grams). The white polycarbonate housing provides UV resistance and maintains appearance over time. Multiple mounting options include surface mounting directly to walls or ceilings, junction box mounting for concealed wiring, gang box mounting for electrical box compatibility, and conduit mounting for industrial applications. The included M20 rubber grommets provide cable strain relief and maintain environmental seals.
- Height
- 2.76" (70 mm)
- Weight
- 1.81 lb (820 g)
- Length
- 1.3 mm (0.05")
What's in the Box
The camera ships complete with all necessary components for installation and operation. Each package includes the main camera unit with attached mounting hardware and comprehensive documentation for proper setup.
Highlights
- 12-megapixel CMOS sensor delivers high-resolution imaging
- Full HD 1080p video recording at 30 frames per second
- 65.62 ft (20 m) infrared night vision for 24/7 monitoring
- IP66 weatherproof and IK10 vandal-resistant construction
- 182° panoramic field of view for comprehensive coverage
- Power over Ethernet (PoE) support simplifies installation
- Supports H.265, H.264, and MJPEG video compression
- Built-in microphone for audio monitoring capability
- SD card local storage for standalone operation
- Operating temperature range: -40°F to 122°F (-40°C to 50°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDS5704F360LE |
| Brand Name | Bosch |
| Product Line | FlexiDome |
| Product Series | 5100i |
| Product Name | FLEXIDOME Panoramic 5100i IR |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.3" |
| Color Supported | Color,Monochrome |
| Field of View | 182° (H) x 182° (V) |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.3 mm (0.05") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/500 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6,UDP,TCP,HTTP,HTTPS,DNS,DNSv6,DDNS,IGMP v2,IGMP v3,ICMP,ICMPv6,FTP,ARP,DHCP,APIPA,DiffServ (QoS),iSCSI,UPnP (SSDP),SMTP,802.1X |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Surface Mount,Junction Box Mount,Gang Box Mount,Conduit Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Weather Resistant,Scratch Resistant,UV Resistant,Water Proof,Impact Resistant,Rain Resistant,Dust Resistant |
| Height | 2.76" (70 mm) |
| Diameter | 5.83" (148 mm) |
| Weight (Approximate) | 1.81 lb (820 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Region of Interest,ePTZ,White Balance,Noise Reduction,Privacy Masking,Cross Line Detection,Noise Detection,SD Card Local Storage,Built-in Microphone |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | FLEXIDOME Panoramic 5100i IR 1 x Camera Base 1 x Camera dome cover 1 x TR20 Allen key for camera installation 1 x 8-pin Audio and I/O connector 1 x 2-pin power connector 1 x RJ-45 punch-through aid 2 x M20 rubber grommets (attached to the camera) 1 x Quick installation guide 1 x Safety information 3 x Installer UX labels 1 x Mount plate |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
User Manual
FAQ
What is the maximum video resolution of this Bosch camera?
The Bosch NDS-5704-F360LE captures video at Full HD 1080p resolution (1920 x 1080 pixels) at up to 30 frames per second. This resolution provides clear, detailed imagery suitable for identification purposes in security applications. The camera also supports 12-megapixel still image capture for high-resolution snapshots.
How far does the night vision reach on this dome camera?
The integrated infrared illuminators provide night vision coverage up to 65.62 feet (20 meters). This infrared night vision enables the camera to capture clear monochrome footage in complete darkness, ensuring 24/7 surveillance capability without requiring external lighting.
Is this camera suitable for outdoor installation?
Yes, this camera is rated for both indoor and outdoor use. It features an IP66 ingress protection rating, making it dust-tight and protected against powerful water jets. Combined with its weather-resistant, UV-resistant, and rain-resistant construction, the camera can withstand harsh environmental conditions in outdoor installations.
What power options does this network camera support?
The camera supports three power methods: 12V DC, 24V AC, and Power over Ethernet (PoE). This flexibility allows installation in various scenarios—PoE for simplified single-cable deployments, or traditional power for locations without PoE switches. The input voltage range accommodates different power supplies commonly available in security installations.
What mounting options are available for this dome camera?
Four mounting methods are supported: surface mounting directly to walls or ceilings, junction box mounting for concealed wiring, gang box mounting for compatibility with standard electrical boxes, and conduit mounting for industrial applications. The included mount plate and hardware facilitate secure installation in various configurations.
What video compression formats does this camera use?
The camera supports H.265, H.264, and MJPEG compression formats. H.265 offers the most efficient compression, reducing bandwidth and storage requirements by up to 50% compared to H.264 while maintaining video quality. This flexibility allows integration with various video management systems and optimization for different network conditions.
