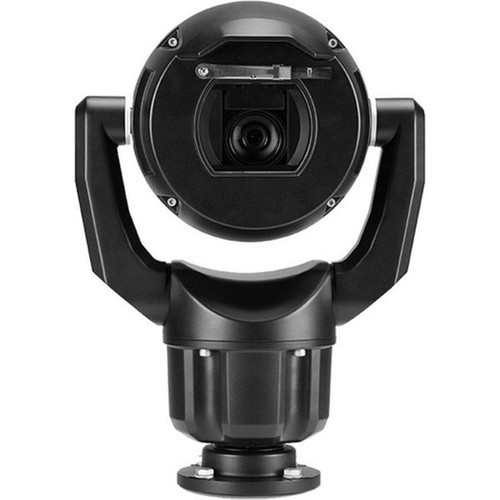

Bosch MIC-7602-Z30B Inteox Outdoor PTZ Network Camera - 2MP Full HD - 30x Optical Zoom - IP66/68 - TAA Compliant - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a 1/2" CMOS image sensor that supports both color and monochrome modes, enabling effective day/night operation. The lens aperture ranges from f/1.5 to f/4.8, with shutter speeds from 1/10000 second to 1 second, allowing for clear imaging in varying light conditions. Remote management is fully supported via Gigabit Ethernet, with comprehensive protocol support including IPv4/IPv6, HTTP/HTTPS, RTSP, and SNTP for seamless integration into existing network infrastructures.
Storage options include memory card support for local recording, while the camera's rugged design incorporates features like back light compensation, defog, noise reduction, and privacy masking. Tamper detection and cross-line detection enhance security monitoring, and surge protection safeguards against electrical disturbances.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MIC-7602-Z30B stands out with its combination of high optical zoom, robust environmental ratings, and advanced imaging features. Its 30x zoom capability allows for detailed observation of distant subjects without sacrificing image quality, while the IP66/68 and IK10 ratings ensure reliable performance in extreme outdoor conditions.
Superior Low-Light Performance
The camera's wide aperture range and support for monochrome mode enable clear imaging in low-light environments, making it effective for 24/7 surveillance.
- f/1.5 minimum aperture
- Color and monochrome modes
- Day/night functionality
Advanced Security Features
Built-in tamper detection, privacy masking, and cross-line detection provide proactive security management, reducing false alarms and enhancing monitoring efficiency.
- Tamper detection and alarm
- Privacy masking zones
- Cross-line detection
Deployment / Use Cases
This camera is ideal for perimeter security, critical infrastructure monitoring, and large-area surveillance where detailed zoom capability and environmental durability are essential. Its flexible mounting options—including corner, wall, and pole mounts—allow for installation in diverse locations such as building exteriors, fences, and elevated poles.
Common applications include monitoring parking lots, industrial facilities, transportation hubs, and educational campuses. The camera's PoE support simplifies wiring in hard-to-reach areas, while its compliance with TAA standards makes it suitable for government contracts and public-sector projects requiring certified equipment.
Perimeter Security
Deploy along fences and gates to monitor entry points with high-zoom clarity and tamper-resistant construction.
- 30x optical zoom
- IK10 impact rating
- Corner and pole mount options
Large-Area Surveillance
Cover expansive spaces like parking lots or yards with the wide field of view and remote pan/tilt/zoom capabilities.
- 2.1° to 58.3° field of view
- Gigabit Ethernet for high bandwidth
- Remote management support
Physical Profile
The camera measures 15.76" (400.30 mm) in height, 11.34" (288.04 mm) in width, and 8.29" (210.57 mm) in depth, with a weight of approximately 19.18 lb (8700 g). Its black finish and dust-resistant design blend into outdoor environments while providing durability against environmental elements. The unit supports corner, wall, and pole mounting, offering installation flexibility for various surveillance scenarios.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 15.76" (400.30 mm), 11.34" (288.04 mm), 8.29" (210.57 mm), 19.18 lb (8700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.34" (288.04 mm)
- Depth
- 8.29" (210.57 mm)
- Height
- 15.76" (400.30 mm)
- Weight
- 19.18 lb (8700 g)
- Length
- 6.6 mm (0.26")
Highlights
- 2MP Full HD resolution with 1920 x 1080 maximum video output
- 30x optical zoom varifocal lens for detailed long-range observation
- IP66/68 and IK10 ratings for extreme outdoor durability
- Supports both AC and PoE power for flexible installation
- TAA compliant for government and institutional deployments
- CMOS sensor with color and monochrome day/night modes
- Gigabit Ethernet connectivity with comprehensive protocol support
- Built-in features include defog, noise reduction, and privacy masking
- Operating temperature range from -40°F to 149°F (-40°C to 65°C)
- Remote management capabilities for easy monitoring and control
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | MIC7602Z30B |
| Brand Name | Bosch |
| Product Line | MIC inteox |
| Product Series | 7100i |
| Product Model | MIC-7602-Z30B |
| Product Name | MIC-7602-Z30B PTZ 2MP 30x Starlight Black |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2" |
| Color Supported | Color,Monochrome |
| Field of View | 2.1° to 58.3° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265 (HEVC),MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.6 mm (0.26") |
| Maximum Focal Length | 198 mm (7.80") |
| Lens Included | Yes |
| Minimum Aperture | f/1.5 |
| Maximum Aperture | f/4.8 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,IGMP v2,IGMP v3,ICMP,ICMPv6,RTSP,FTP,ARP,DHCP,SNTP,NTP,DNS,DNSv6,DDNS,SMTP,iSCSI,UPnP,UPnP (SSDP),DiffServ (QoS),LLDP,CHAP,SOAP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Power Source Type | AC,PoE |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Corner Mount,Wall Mount,Pole Mount |
| Durability | Dust Resistant |
| Height | 15.76" (400.30 mm) |
| Width | 11.34" (288.04 mm) |
| Depth | 8.29" (210.57 mm) |
| Weight (Approximate) | 19.18 lb (8700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Rugged Design,Back Light Compensation (BLC),Day/Night,Defog,Noise Reduction,Privacy Masking,Cross Line Detection,Tamper Detection,Tampering Alarm,Surge Protection,Ingress Protection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP68,IP67 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Bosch MIC-7602-Z30B offers 2MP (megapixel) resolution with a maximum video resolution of 1920 x 1080 Full HD. It records at up to 30 frames per second in H.265, H.264, and MJPEG formats, providing clear, detailed video suitable for identification and monitoring purposes in surveillance applications.
How does the 30x optical zoom perform in practical use?
The 30x optical zoom uses a varifocal lens with a focal length range from 6.6 mm to 198 mm, allowing you to closely observe distant subjects without digital interpolation that reduces image quality. This is particularly useful for monitoring large areas like parking lots or perimeters where detail at a distance is critical for security.
Is this camera suitable for outdoor installation in harsh weather?
Yes, this camera is designed for outdoor use with an IP66/68 ingress protection rating, meaning it is dust-tight and protected against powerful water jets and prolonged immersion. It also has an IK10 impact resistance rating and operates in temperatures from -40°F to 149°F (-40°C to 65°C), making it durable in extreme conditions.
What power options are available for this network camera?
The camera supports both 24 V AC power and Power over Ethernet (PoE), giving you flexibility in installation. PoE simplifies wiring by delivering power and data over a single Ethernet cable, which is ideal for locations where AC outlets are not readily accessible.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this camera meets U.S. government procurement requirements, ensuring it is manufactured in designated countries. This makes it eligible for use in federal, state, and local government projects, as well as other institutional deployments that require compliant equipment.
What storage options does this camera support?
The camera supports local storage via memory card, allowing for on-device recording without immediate network dependency. This can be useful for backup recording or in scenarios where network storage is temporarily unavailable, though it is typically integrated with network video recorders (NVRs) for centralized management.
