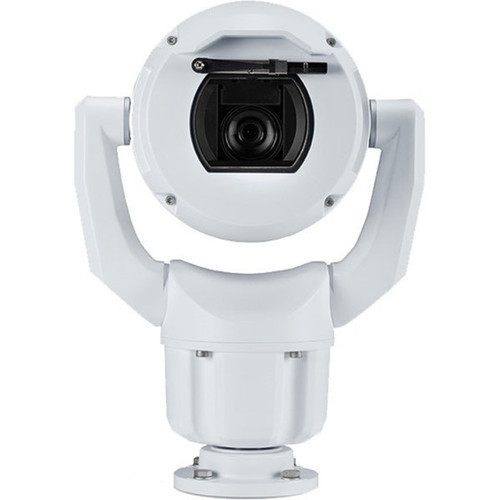

Bosch MIC-7602-Z30W MIC Inteox 2MP Outdoor PTZ Dome Camera - 30x Optical Zoom - Full HD - IP68 - TAA Compliant - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera records in Full HD at up to 1920 x 1080 resolution and 30 frames per second, supporting modern video compression formats including H.265 and H.264 for efficient bandwidth and storage use. The 2-megapixel CMOS sensor provides a balance of image quality and power efficiency.
The integrated varifocal lens offers a 30x optical zoom range, with a focal length adjustable from 6.6 mm to 198 mm, enabling operators to capture wide-area views or zoom in on distant details. Aperture ranges from f/1.5 to f/4.8, supporting performance in low-light scenarios.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MIC-7602-Z30W stands out with its exceptional environmental durability, advanced imaging capabilities, and flexible connectivity, making it a reliable choice for critical surveillance points.
Extreme Environmental Protection
Rated IP68 for dust and water ingress protection and IK10 for impact resistance, this camera is built to withstand harsh outdoor conditions including heavy rain, dust, and physical impacts.
- IP68 rated
- IK10 impact rating
- Operates from -40°F to 149°F
Advanced Imaging Features
Includes built-in IR LEDs for night vision, Wide Dynamic Range (WDR) for high-contrast scenes, and features like defog, dynamic noise reduction, and privacy masking to enhance video usability.
- Built-in IR illumination
- Wide Dynamic Range
- Defog and noise reduction
Flexible Deployment and Compliance
Supports multiple mounting types and is TAA compliant for use in U.S. government procurement, meeting strict regulatory and environmental standards including RoHS and WEEE.
- TAA Compliant
- Multiple mount options
- RoHS/WEEE compliant
Deployment / Use Cases
This camera is engineered for scenarios requiring detailed, reliable video surveillance in challenging outdoor settings. Its combination of high zoom, rugged construction, and network integration makes it suitable for both commercial and institutional security applications.
Common deployments include perimeter security for industrial facilities, monitoring of large parking areas or transportation hubs, and oversight of critical infrastructure where weather resistance and detailed identification are paramount. The PoE support simplifies installation by allowing power and data over a single Ethernet cable.
Perimeter and Border Surveillance
The 30x optical zoom and rugged IP68 housing make this camera ideal for monitoring fence lines, gates, and property boundaries where long-range observation and environmental durability are required.
Large-Area Monitoring
Suitable for airports, seaports, and campus environments where operators need to zoom in on specific incidents while maintaining a broad field of view for general situational awareness.
Physical Profile
Housed in a white dome form factor measuring approximately 15.76" high, 11.34" wide, and 8.29" deep, this camera presents a professional appearance while offering substantial internal components for its imaging and mechanical systems. Weighing about 19.18 lb, it is designed for stable mounting. The dome design helps protect the lens and deter tampering, and the unit supports bracket, conduit, pole, wall, and corner mounting for installation flexibility.
- Width
- 11.34" (287.93 mm)
- Depth
- 8.29" (210.65 mm)
- Height
- 15.76" (400.34 mm)
- Weight
- 19.18 lb (8700 g)
- Length
- 6.6 mm (0.26")
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 2-megapixel CMOS sensor for Full HD video recording
- 30x optical zoom varifocal lens for detailed long-range observation
- IP68 and IK10 ratings for extreme outdoor durability
- Supports H.265 and H.264 video compression for efficient bandwidth use
- Built-in IR LEDs for night vision capability
- Power over Ethernet (PoE) support for simplified installation
- TAA compliant for U.S. government procurement
- Multiple mounting options including wall, pole, and corner mounts
Specifications
| Specifications | |
|---|---|
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | MIC7602Z30W |
| Brand Name | Bosch |
| Product Line | MIC inteox |
| Product Series | 7100i |
| Product Model | MIC-7602-Z30W |
| Product Name | MIC-7602-Z30WR-OC PTZ 2MP 30x Starlight Enhanced White OC |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2" |
| Color Supported | Color,Monochrome |
| Field of View | 2.1° to 58.3° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.6 mm (0.26") |
| Maximum Focal Length | 198 mm (7.80") |
| Lens Included | Yes |
| Minimum Aperture | f/4.8 |
| Maximum Aperture | f/1.5 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/60000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6,UDP,TCP,HTTP,HTTPS,SOAP,CHAP,LLDP,DNS,DNSv6,DDNS,IGMP v2,IGMP v3,ICMPv6,ICMP,RTSP,FTP,ARP,DHCP,NTP,SNTP,SMTP,iSCSI,UPnP (SSDP),DiffServ (QoS) |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Power Source Type | AC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Bracket Mount,Conduit Mount,Pole Mount,Wall Mount,Corner Mount |
| Form Factor | Dome |
| Durability | Corrosion Resistant,Impact Resistant,Weather Resistant,Dust Resistant,Vibration Resistant,Shock Resistant |
| Height | 15.76" (400.34 mm) |
| Width | 11.34" (287.93 mm) |
| Depth | 8.29" (210.65 mm) |
| Weight (Approximate) | 19.18 lb (8700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Built-in IR LED,Built-in Infrared Illuminator,Rugged Design,Wide Dynamic Range,Auto Gain Control,Day/Night,Removable IR Cut-off Filter,Back Light Compensation (BLC),Automatic White Balance,Defog,Dynamic Noise Reduction,Cross Line Detection,Enter/Exit Detector,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Package Contents | 1 x MIC-7602-Z30WR-OC PTZ 2MP 30x Starlight Enhanced White OC 1 x Spanner Tool 1 x Base Gasket 1 x RJ45 Coupler 1 x MAC Address Labels 1 x Quick Installation Guide 1 x Safety Instructions |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP68 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the maximum video resolution of this Bosch camera?
The Bosch MIC-7602-Z30W records at a maximum resolution of 1920 x 1080 pixels, which is Full HD. It supports this resolution at up to 30 frames per second, providing clear and smooth video footage suitable for detailed surveillance and identification purposes.
Does this camera support night vision?
Yes, this camera includes built-in IR LEDs for night vision capability. It can capture monochrome video in low-light or complete darkness, and features a removable IR cut-off filter to automatically switch between day and night modes for optimal image quality around the clock.
What does the IP68 rating mean for this outdoor camera?
The IP68 rating indicates that the camera is dust-tight and protected against continuous immersion in water under specified conditions. This makes it suitable for outdoor use in harsh environments, including heavy rain, dust storms, or locations where it might be exposed to water ingress.
Can this camera be powered using Power over Ethernet (PoE)?
Yes, the Bosch MIC-7602-Z30W supports Power over Ethernet (PoE) as one of its power source options, alongside traditional 24 V AC power. PoE allows both data and power to be delivered over a single Ethernet cable, simplifying installation and reducing wiring complexity.
What mounting options are available for this dome camera?
This camera supports multiple mounting types including bracket mount, conduit mount, pole mount, wall mount, and corner mount. This flexibility allows it to be installed in various locations and orientations to meet specific surveillance needs and site requirements.
Is this camera compliant with TAA requirements?
Yes, the Bosch MIC-7602-Z30W is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement by U.S. government agencies. This compliance ensures the camera is manufactured in designated countries and meets specific regulatory standards for government use.
