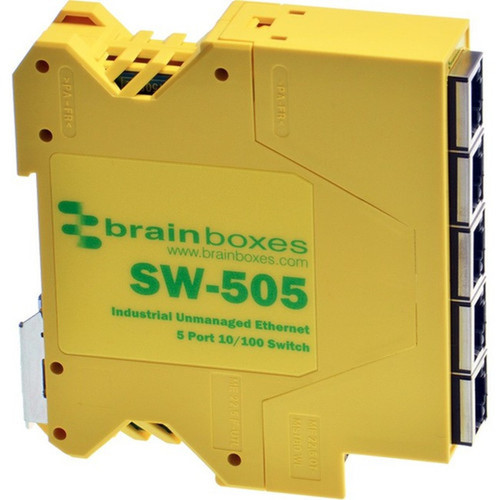

Brainboxes SW-505 Industrial Compact 5-Port Fast Ethernet Switch - DIN Rail Mountable - 10/100Base-TX - Layer 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Network Performance
The switch supports Fast Ethernet technology with 10/100Base-TX auto-negotiation on all five ports, delivering up to 100 Mbps per port for industrial data transfer requirements. Layer 2 switching enables efficient local traffic management without complex configuration.
- 5 x Fast Ethernet ports
- 10/100Base-TX auto-negotiation
- Twisted pair media support
Power Flexibility
Dual power inputs accept +5V to +30V DC through either a power adapter or USB connection, providing redundancy and compatibility with various industrial power sources. This flexibility supports deployment in diverse electrical environments.
- Power adapter input
- USB power input
- +5V to +30V DC range
Key Product Advantages
The SW-505 combines industrial durability with practical networking functionality for automation and control applications. Its integrated DIN rail mounting with grounding ensures secure installation in electrical cabinets and control panels, while the small footprint conserves valuable panel space.
Industrial Durability
Engineered for harsh environments with extended temperature tolerance and robust construction, making it suitable for manufacturing, transportation, and outdoor applications where commercial switches would fail.
- -40°C to +80°C operating range
- DIN rail mounting with grounding
- Industrial-grade components
Deployment Flexibility
The compact dimensions and lightweight design enable installation in space-constrained locations, while dual power inputs provide compatibility with various industrial power systems and backup options.
- 22.5mm width profile
- 4.06 oz lightweight design
- Dual power input options
Deployment / Use Cases
This industrial Ethernet switch is optimized for automation, control systems, and panel networking where reliability, compact size, and environmental tolerance are critical. It serves as a cost-effective network expansion solution for industrial Ethernet deployments.
Typical applications include connecting PLCs, HMIs, sensors, and other industrial devices within control cabinets, manufacturing cells, and process control environments. The DIN rail mounting simplifies integration into standard industrial electrical enclosures.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Industrial Automation
Connect multiple industrial devices within control panels and automation systems, providing reliable network connectivity for PLC communications, sensor networks, and machine control applications.
Panel Networking
Expand network connectivity within electrical enclosures and control panels where space is limited and environmental conditions demand industrial-grade networking equipment.
Physical Profile
The SW-505 features a compact industrial enclosure measuring 0.91" high, 3.70" wide, and 3.90" deep (23 x 94 x 99 mm), with a weight of just 4.06 oz (115 g). This space-efficient design minimizes panel footprint while providing full five-port switching capability. The integrated DIN rail mounting bracket with grounding ensures secure installation in standard industrial electrical enclosures.
- Width
- 3.70" (94 mm)
- Depth
- 3.90" (99 mm)
- Height
- 0.91" (23 mm)
- Weight
- 4.06 oz (115 g)
What's in the Box
The package includes everything needed for immediate deployment of the industrial Ethernet switch in your automation or panel application.
Highlights
- 5-port Fast Ethernet switch for industrial networking
- DIN rail mountable with integrated grounding
- Dual power inputs: power adapter and USB (+5V to +30V DC)
- Extended operating temperature: -40°C to +80°C
- Compact footprint: 22.5mm width, 94mm depth
- Layer 2 switching for efficient local traffic
- Unmanaged operation for plug-and-play deployment
- Industrial-grade construction for harsh environments
- TAA compliant for government procurement
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-505 |
| Brand Name | Brainboxes |
| Product Model | SW-505 |
| Product Name | Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Modular | No |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter,USB |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.91" (23 mm) |
| Width | 3.70" (94 mm) |
| Depth | 3.90" (99 mm) |
| Weight (Approximate) | 4.06 oz (115 g) |
| Miscellaneous | |
| Package Contents | Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable Quick Start Guide |
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many Ethernet ports does the Brainboxes SW-505 switch have?
The Brainboxes SW-505 features five Fast Ethernet ports, providing connectivity for up to five network devices. All ports support 10/100Base-TX auto-negotiation over twisted pair cabling, making this switch suitable for connecting multiple industrial devices in automation panels or control systems.
Is this switch manageable or unmanaged?
The SW-505 is an unmanaged Layer 2 switch, meaning it operates with plug-and-play simplicity without requiring configuration. This makes it ideal for industrial applications where network administrators need reliable connectivity without complex setup or ongoing management overhead.
What mounting options are available for this industrial switch?
This switch is designed specifically for DIN rail mounting with an integrated mounting bracket and grounding connection. The DIN rail compatibility allows for secure installation in standard industrial electrical enclosures and control panels, which is essential for automation and manufacturing environments.
What power inputs does the SW-505 support?
The switch offers dual power input options: it can be powered by either a standard power adapter or through a USB connection, both accepting +5V to +30V DC. This redundancy provides flexibility in industrial environments and ensures compatibility with various power sources commonly found in control panels.
What temperature range can this industrial switch operate within?
The Brainboxes SW-505 is rated for industrial temperature operation from -40°C to +80°C (-40°F to +176°F). This extended range ensures reliable performance in harsh environments such as manufacturing floors, outdoor installations, and temperature-controlled facilities where commercial switches might fail.
What is included in the warranty for this product?
Brainboxes provides a lifetime limited warranty for the SW-505 industrial Ethernet switch. This warranty coverage reflects the product's industrial-grade construction and durability, offering long-term protection for your investment in industrial networking infrastructure.
