Brother ADS-3100 Sheetfed Scanner - 40 ppm Color/Mono - 600 x 600 dpi - 48-bit Color - Duplex - 60 Sheet ADF - USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC

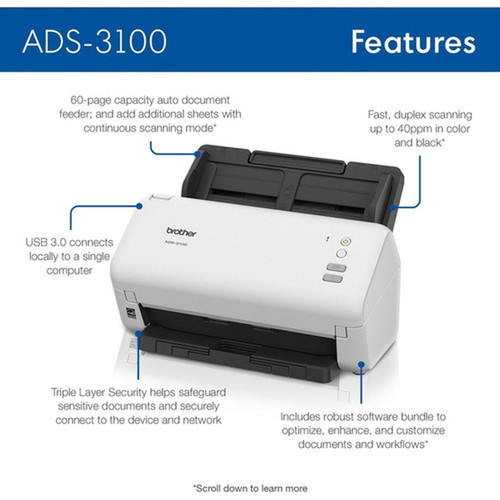

Product Features
Technical Overview
The ADS-3100 combines robust scanning hardware with intelligent software compatibility to deliver reliable performance across multiple platforms. The scanner's 600 × 600 dpi optical resolution captures fine details with clarity, while the 48-bit color depth ensures accurate color reproduction across a broad spectrum, preserving subtle gradients and tonal variations in photographs and graphics.
The scanner maintains consistent 40 ppm speed for both color and monochrome scanning, equivalent to 80 images per minute in duplex mode. This performance is supported by a sophisticated paper path design that minimizes jams and ensures smooth feeding of various media types from the 60-sheet ADF.
This section brings together practical product details such as Optical Resolution (dpi), Scan Color, Color Depth, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Brother ADS-3100 offers several distinct advantages for office scanning operations. Its compact sheetfed design requires significantly less desk space than traditional flatbed scanners while delivering superior throughput for high-volume scanning tasks. The scanner's consistent 40 ppm performance for both color and monochrome documents eliminates the speed compromise often associated with color scanning.
Versatile Media Handling
Processes everything from standard office paper to specialized media including plastic cards, ID cards, business cards, receipts, and postcards without requiring separate devices.
- Handles thick and thin paper variants
- Supports glossy and inkjet paper
- Accommodates embossed cards
Efficient Document Processing
The 60-sheet automatic document feeder combined with duplex scanning enables rapid processing of multi-page documents with minimal user intervention.
- Scans both sides in a single pass
- Reduces manual document handling
- Maintains document order and orientation
Deployment / Use Cases
The Brother ADS-3100 is ideally suited for office environments requiring efficient document digitization and archival. Legal firms can use it to scan case files and contracts, while accounting departments benefit from its ability to process invoices, receipts, and financial documents quickly. Medical offices find it valuable for digitizing patient records and insurance forms.
Educational institutions utilize the ADS-3100 for scanning administrative documents, while small businesses appreciate its ability to handle diverse media types including business cards and marketing materials. The scanner's compatibility with Windows, Mac OS, and Linux operating systems makes it adaptable to mixed-IT environments common in modern workplaces.
Office Document Management
Streamlines paper-to-digital conversion for invoices, contracts, correspondence, and records management systems.
Specialized Media Processing
Digitizes non-standard items like business cards, ID cards, plastic cards, and receipts that flatbed scanners handle inefficiently.
Physical Profile
The ADS-3100 features a compact desktop footprint measuring 11.70 inches wide by 7.50 inches high (297.18 × 190.50 mm), occupying minimal workspace while delivering full-featured scanning capabilities. Weighing just 6.10 pounds (2.77 kg), the scanner remains stable during operation yet is easily repositioned when needed. The design prioritizes functional efficiency with accessible controls and clear status indicators for straightforward operation in busy office environments.
- Width
- 11.70" (297.18 mm)
- Depth
- 48-bit
- Height
- 7.50" (190.50 mm)
- Weight
- 6.10 lb (2766.91 g)

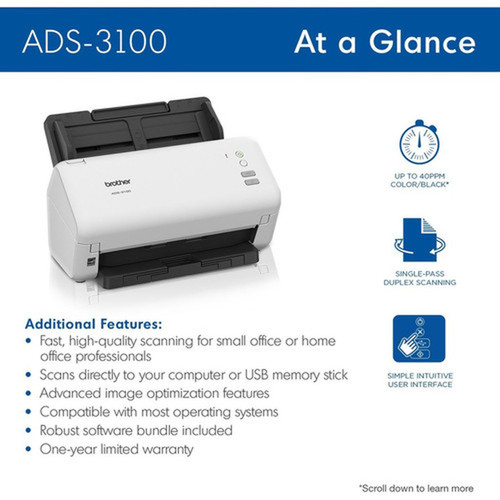

Highlights
- 40 ppm scanning speed for both color and monochrome documents
- 600 × 600 dpi optical resolution for detailed image capture
- 48-bit color depth ensures accurate color reproduction
- Duplex scanning processes both sides of documents automatically
- 60-sheet automatic document feeder minimizes reloading
- Handles diverse media including cards, receipts, and various paper types
- USB connectivity for simple plug-and-play operation
- Compatible with Windows, Mac OS, and Linux operating systems
- Compact sheetfed design saves valuable desk space
- Energy Star and EPEAT Silver certified for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Brother Industries, Ltd |
| Manufacturer Part Number | ADS-3100 |
| Brand Name | Brother |
| Product Model | ADS-3100 |
| Product Name | High-Speed Desktop Scanner ADS-3100 |
| Packaged Quantity | 1 Each |
| Product Type | Sheetfed Scanner |
| Technical Information | |
| Optical Resolution (dpi) | 600 x 600 |
| Scan Color | Color,Monochrome,Grayscale |
| Color Depth | 48-bit |
| Maximum Mono Scan Speed (ppm) | 40 |
| Maximum Color Scan Speed (ppm) | 40 |
| Maximum Mono Scan Speed (ipm) | 80 |
| Maximum Color Scan Speed (ipm) | 80 |
| Media Type | Receipt,Plastic Card,ID Card,Plain Paper,Glossy Paper,Inkjet Paper,Recycled Paper,Thick Paper,Thin Paper,Standard Paper,Business Card,Embossed Card,Postcard |
| Media Size | A4 - 8.27" (210.06 mm) x 11.69" (296.93 mm),A5 - 5.83" (148.08 mm) x 8.27" (210.06 mm),A6 - 4.13" (104.90 mm) x 5.83" (148.08 mm),B5 - 6.93" (176.02 mm) x 9.84" (249.94 mm),B6 - 4.92" (124.97 mm) x 6.93" (176.02 mm),Executive - 7" (177.80 mm) x 10" (254 mm),Legal - 8.50" (215.90 mm) x 14" (355.60 mm),Letter - 8.50" (215.90 mm) x 11" (279.40 mm) |
| ADF Capacity | 60 Sheets |
| Duplex Scanning | Yes |
| Scanning Modes | Duplex |
| Interfaces/Ports | |
| USB | Yes |
| Software | |
| Operating System Supported | Windows,Mac OS,Linux |
| Physical Characteristics | |
| Height | 7.50" (190.50 mm) |
| Width | 11.70" (297.18 mm) |
| Weight (Approximate) | 6.10 lb (2766.91 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | |
FAQ
What is the maximum scanning speed of the Brother ADS-3100?
The Brother ADS-3100 delivers 40 pages per minute for both color and monochrome scanning. This consistent performance applies to single-sided documents, while duplex scanning processes both sides simultaneously at equivalent throughput. The scanner maintains this speed across supported media types when operating within recommended specifications.
Does this scanner support double-sided document scanning?
Yes, the ADS-3100 features automatic duplex scanning capability. It can scan both sides of a document in a single pass through the automatic document feeder, effectively doubling throughput for two-sided documents. This functionality works with the scanner's full 40 ppm speed for efficient processing of contracts, booklets, and other double-sided materials.
What types of media can the ADS-3100 handle?
The scanner processes a wide variety of media including standard office paper (plain, recycled, thick, thin), glossy paper, inkjet paper, business cards, plastic cards, ID cards, embossed cards, receipts, and postcards. This versatility eliminates the need for multiple specialized scanning devices in office environments that handle diverse document types.
How many sheets can the automatic document feeder hold?
The ADS-3100 features a 60-sheet automatic document feeder capacity. This substantial loading capability reduces the frequency of reloading during extended scanning sessions and supports efficient batch processing of multi-page documents. The ADF is designed to handle the scanner's full range of supported media types while maintaining reliable feeding performance.
What operating systems are compatible with this scanner?
The Brother ADS-3100 is compatible with Windows, Mac OS, and Linux operating systems. This broad platform support ensures the scanner integrates seamlessly into mixed-IT environments commonly found in modern offices. Drivers and scanning software are available for all supported platforms to enable full functionality across different computing environments.
What are the physical dimensions of the ADS-3100 scanner?
The scanner measures 11.70 inches in width and 7.50 inches in height (297.18 × 190.50 mm), with a compact profile that conserves valuable desk space. Weighing 6.10 pounds (2.77 kg), it provides stable operation while remaining portable enough for repositioning as needed. The sheetfed design is significantly more space-efficient than traditional flatbed scanners with similar capabilities.
What sheet capacity, media size, or paper handling detail is listed?
A4 - 8.27" (210.06 mm) x 11.69" (296.93 mm),A5 - 5.83" (148.08 mm) x 8.27" (210.06 mm),A6 - 4.13" (104.90 mm) x 5.83" (148.08 mm),B5 - 6.93" (176.02 mm) x 9.84" (249.94 mm),B6 - 4.92" (124.97 mm) x 6.93" (176.02 mm),Executive - 7" (177.80 mm) x 10" (254 mm),Legal - 8.50" (215.90 mm) x 14" (355.60 mm),Letter - 8.50" (215.90 mm) x 11" (279.40 mm).
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
