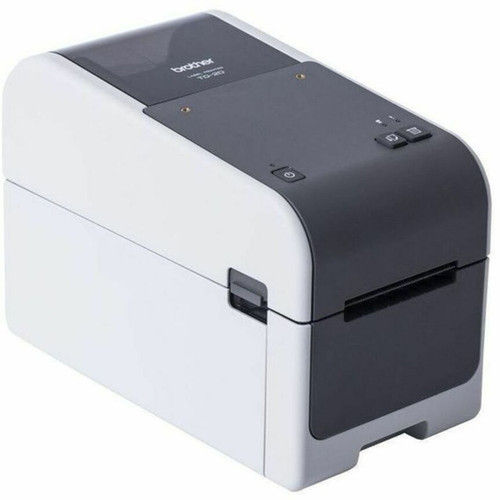

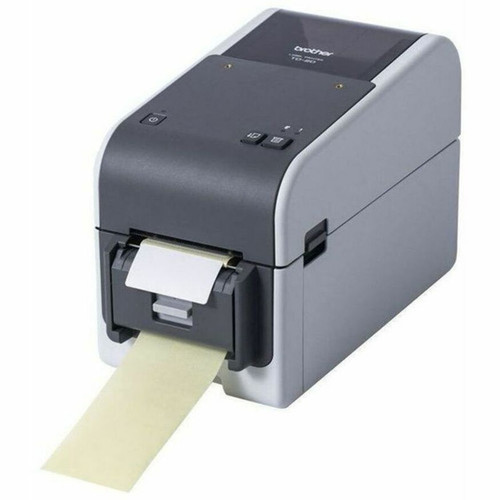

Brother TD2320D203 Direct Thermal Printer - Monochrome Label Print - 5. 98 in/s Speed - 203 dpi - Ethernet/USB/Serial - Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This printer achieves maximum mono print speeds of 5.98 inches per second (152 mm/s), enabling rapid label production for time-sensitive operations. The 203 dpi resolution ensures barcodes, text, and graphics print with the clarity needed for scanning and readability.
Media handling accommodates labels and tickets up to 2.48 inches (63 mm) wide, with an impressive maximum print length of 118.11 inches (3000 mm) for extended label formats. The printer supports a comprehensive range of barcode symbologies including Code 128, QR Code, Data Matrix, UPC, EAN, and GS1 DataBar variants.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, USB Host, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TD-2320D203 provides a balanced combination of speed, connectivity, and media flexibility for diverse labeling needs. Its multi-interface design ensures compatibility with various host systems and network configurations.
Versatile Connectivity
Ethernet networking enables shared access across workgroups, while USB 2.0 with host support and serial ports offer direct connections to POS systems, legacy equipment, and standalone computers.
- Ethernet for network sharing
- USB 2.0 with host capability
- Serial port for legacy systems
Comprehensive Language Support
Multiple printer language emulations including ZPL2, CPCL, ESC/P, and Raster ensure compatibility with various labeling software and enterprise applications.
- ZPL2 and CPCL for label design
- ESC/P for text printing
- Raster for graphics
Deployment / Use Cases
The Brother TD-2320D203 excels in environments requiring consistent, reliable label output. Its combination of speed, connectivity, and media handling makes it suitable for both centralized and distributed printing scenarios.
Retail and hospitality operations benefit from its ability to print price labels, shelf tags, and receipts. Warehouse and logistics teams can generate shipping labels, packing slips, and inventory tags with the required barcode clarity for scanning systems.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, USB Host, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Shipping & Logistics
Print shipping labels, packing slips, and tracking labels with compliant barcodes for carrier systems and inventory management.
Retail & Inventory
Generate price labels, shelf tags, and product identification labels for retail displays and stockroom organization.
Physical Profile
With compact dimensions of 6.22" H × 4.69" W × 8.82" D (158 × 119 × 224 mm), this desktop printer fits comfortably on countertops, workstations, and shelf spaces. The sturdy construction supports continuous operation in business environments while maintaining a modest footprint.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.22" (158 mm), 2.48" (63 mm), 8.82" (224 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.48" (63 mm)
- Depth
- 8.82" (224 mm)
- Height
- 6.22" (158 mm)
- Length
- 118.11" (3000 mm)
What's in the Box
The printer includes built-in fonts for immediate label production: Letter Gothic Bold, Gothic, Brussels, Helsinki, and Letter Gothic Regular.
Package contents include Letter Gothic Bold,Gothic,Brussels,Helsinki,Letter Gothic Regular. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Direct thermal monochrome printing for labels and tickets
- 5.98 inches per second (152 mm/s) maximum print speed
- 203 dpi resolution for crisp barcodes and text
- Supports labels up to 2.48" wide with 118.11" maximum length
- Ethernet, USB 2.0 with host, and serial connectivity options
- Compatible with Windows 10, 11, and Server editions
- Multiple printer language emulations: ZPL2, CPCL, ESC/P, Raster
- Comprehensive barcode symbology support including QR Code and Data Matrix
- Compact desktop form factor for space-constrained environments
- Operating temperature range: 41°F to 104°F (5°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Brother Industries, Ltd |
| Manufacturer Part Number | TD2320D203 |
| Brand Name | Brother |
| Product Series | TD |
| Product Model | TD-2320D203 |
| Product Name | TD-2320D203 Direct Thermal Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5.98 in/s (152 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 118.11" (3000 mm) |
| Barcode Symbology Supported | Code 39,ITF I-2/5,EAN-13 (JAN13),EAN-8 (JAN8),UPC-A,UPC-E,Codabar (NW-7),Code 128,GS1-128 (UCC/EAN-128),GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Limited,GS1 DataBar Expanded,QR Code,Maxi Code,Micro PDF-417,Data Matrix,AZTEC |
| Fonts Included | Letter Gothic Bold,Gothic,Brussels,Helsinki,Letter Gothic Regular |
| Interfaces/Ports | |
| USB Host | Yes |
| Serial Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Media Types & Handling | |
| Media Type | Label,Ticket |
| Maximum Label Width | 2.48" (63 mm) |
| Fonts & Emulation | |
| Language Emulation | Raster,P-touch Template,ESC/P,ZPL2,CPCL |
| Software | |
| Operating System Supported | Windows (10, 11, Server 2016, Server 2019, Server 2022) |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 80% |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 6.22" (158 mm) |
| Width | 4.69" (119 mm) |
| Depth | 8.82" (224 mm) |
User Manual
FAQ
What type of printing technology does this Brother printer use?
The Brother TD-2320D203 uses direct thermal printing technology, which creates images by applying heat to specially coated thermal paper or labels. This method produces monochrome output without requiring ink, toner, or ribbons, making it ideal for label printing applications where simplicity and low maintenance are priorities.
How fast can this printer produce labels?
This printer achieves maximum mono print speeds of 5.98 inches per second (152 mm/s). This speed enables rapid label production for shipping, inventory, and retail applications, helping businesses maintain workflow efficiency during peak periods without compromising print quality.
What connectivity options are available?
The TD-2320D203 offers three connectivity methods: Ethernet for network integration and shared access, USB 2.0 with host support for direct computer connections, and a serial port for compatibility with legacy systems and point-of-sale equipment. This multi-interface design ensures flexibility across different IT environments.
What is the maximum label size this printer can handle?
The printer accommodates labels and tickets up to 2.48 inches (63 mm) wide, with an impressive maximum print length of 118.11 inches (3000 mm). This extended length capability supports specialized applications like continuous-form labels, long receipts, and oversized shipping labels that require substantial print areas.
Which operating systems are compatible with this printer?
The Brother TD-2320D203 is compatible with Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, and Windows Server 2022. This comprehensive Windows support ensures integration with current business computing environments while maintaining compatibility with server-based printing infrastructures.
What barcode types does this printer support?
This printer supports a wide range of barcode symbologies including Code 39, ITF I-2/5, EAN-13, EAN-8, UPC-A, UPC-E, Codabar (NW-7), Code 128, GS1-128, GS1 DataBar variants, QR Code, Maxi Code, Micro PDF-417, Data Matrix, and AZTEC. This comprehensive support meets requirements for retail, logistics, healthcare, and industrial applications.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
