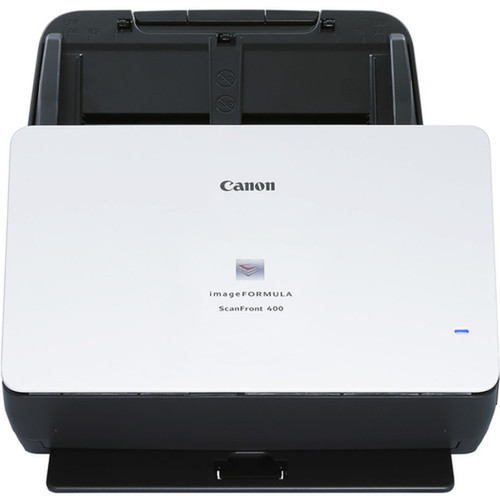

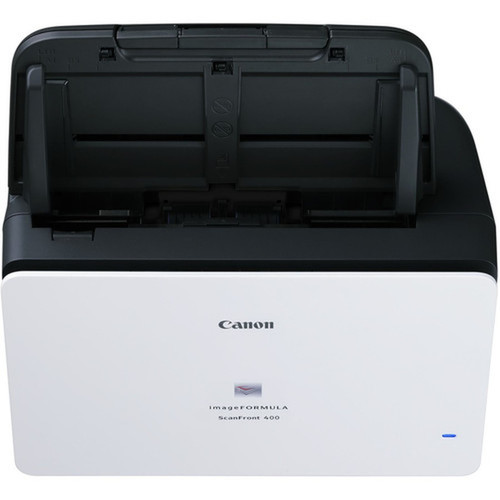

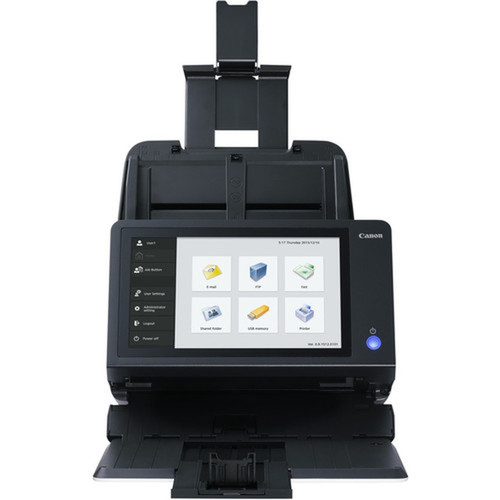

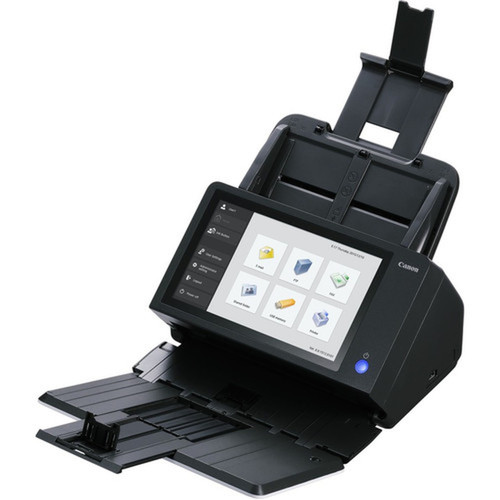

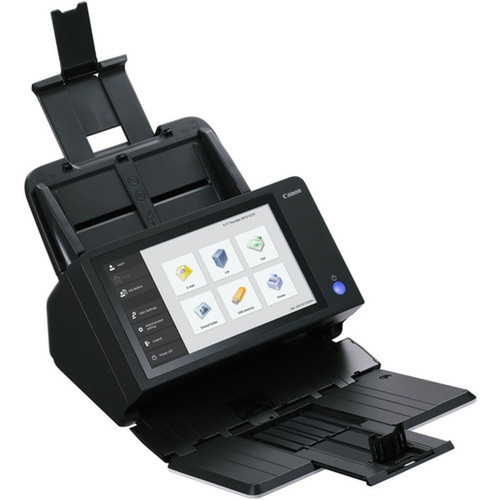

Canon 1255C002 ScanFront 400 Sheetfed Scanner - 45 ppm Color & Mono - 600 dpi - 60-Sheet ADF - Duplex
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ScanFront 400 operates at 45 pages per minute for both color and monochrome scanning, with a corresponding 90 images per minute rate when scanning duplex pages. This performance is supported by 600 dpi optical resolution that captures fine text and graphic details accurately.
Color scanning utilizes 24-bit depth for vibrant, true-to-original color reproduction, while grayscale documents benefit from 8-bit depth for smooth tonal transitions. The scanner accepts media up to 11" x 17" size, including standard letter and legal formats, through its 60-sheet automatic document feeder. Duplex scanning is standard, allowing simultaneous capture of both document sides in a single pass.
Relevant factors for this section include Cordless, Large Format, Optical Resolution (dpi), USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The sheetfed design provides a compact footprint that conserves desk space compared to flatbed scanners, while still delivering professional scanning capabilities. Network connectivity enables shared access across workgroups, and USB connectivity offers direct connection options for individual workstations.
High-Speed Document Processing
With 45 ppm scanning speed for both color and mono documents, the ScanFront 400 significantly reduces digitization time for high-volume office environments. The 60-sheet ADF minimizes operator intervention during batch scanning operations.
- 45 ppm color and mono throughput
- 90 ipm duplex scanning rate
- 60-sheet automatic document feeder
Professional Image Quality
600 dpi optical resolution combined with 24-bit color depth ensures documents are captured with exceptional clarity and color accuracy. This makes scanned output suitable for archival purposes, document management systems, and business applications requiring high-fidelity reproductions.
- 600 dpi optical resolution
- 24-bit color depth
- 8-bit grayscale support
Deployment / Use Cases
The scanner's professional capabilities make it suitable for environments requiring regular digitization of mixed document types, including legal firms scanning contracts and court documents, financial institutions processing statements and forms, healthcare facilities digitizing patient records, and corporate offices managing business correspondence and records.
Office Document Management
Ideal for digitizing invoices, contracts, correspondence, and other business documents in legal, financial, healthcare, and corporate environments. The 60-sheet ADF and duplex scanning efficiently handle mixed document batches.
- Legal document scanning
- Financial record digitization
- Healthcare records management
Departmental Shared Resource
Network connectivity allows the ScanFront 400 to serve as a shared scanning resource for workgroups, reducing the need for multiple individual scanners while maintaining high throughput for departmental scanning needs.
- Workgroup scanning station
- Departmental digitization hub
- Shared resource optimization
Physical Profile
Measuring 12" wide x 11.10" deep x 9.06" high and weighing 9.92 pounds, the ScanFront 400 maintains a compact footprint suitable for desktop deployment in space-constrained office environments. The sheetfed design eliminates the need for a flatbed platen, further reducing the scanner's overall dimensions while maintaining full document scanning capabilities.
The physical design prioritizes functional efficiency with front-loading document feed and output trays that facilitate smooth document flow during scanning operations. The robust construction supports reliable operation in daily office use environments.
- Width
- 12" (304.80 mm)
- Depth
- 24-bit
- Height
- 9.06" (230.12 mm)
- Weight
- 9.92 lb (4499.64 g)
What's in the Box
The scanner package includes all components needed for immediate deployment and operation.
Highlights
- 45 pages per minute scanning speed for both color and monochrome documents
- 600 dpi optical resolution for crisp, detailed document captures
- 60-sheet automatic document feeder minimizes manual loading during batch operations
- Duplex scanning capability captures both sides of documents in a single pass
- 24-bit color depth ensures accurate color reproduction of original documents
- Compact sheetfed design conserves desk space compared to flatbed scanners
- Network connectivity enables shared access across workgroups
- EPEAT Gold environmental certification and Energy Star compliance
- Supports media up to 11" x 17" including legal size documents
- 1-year limited warranty with manufacturer support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Canon, Inc |
| Manufacturer Part Number | 1255C002 |
| Brand Name | Canon |
| Product Line | ScanFront |
| Product Model | 400 |
| Product Name | imageFORMULA ScanFront 400 Networked Document Scanner |
| Product Type | Sheetfed Scanner |
| Technical Information | |
| Cordless | No |
| Large Format | No |
| Optical Resolution (dpi) | 600 |
| Scan Color | Color |
| Color Depth | 24-bit |
| Grayscale Depth | 8-bit |
| Maximum Mono Scan Speed (ppm) | 45 |
| Maximum Color Scan Speed (ppm) | 45 |
| Maximum Mono Scan Speed (ipm) | 90 |
| Maximum Color Scan Speed (ipm) | 90 |
| Media Size | 11" (279.40 mm) x 17" (431.80 mm),Legal - 8.50" (215.90 mm) x 14" (355.60 mm) |
| ADF Capacity | 60 Sheets |
| Duplex Scanning | Yes |
| Scanning Modes | Duplex |
| Interfaces/Ports | |
| USB | Yes |
| Physical Characteristics | |
| Height | 9.06" (230.12 mm) |
| Width | 12" (304.80 mm) |
| Depth | 11.10" (281.94 mm) |
| Weight (Approximate) | 9.92 lb (4499.64 g) |
| Miscellaneous | |
| Package Contents | imageFORMULA ScanFront 400 Networked Document Scanner AC Adapter eCarePAK Flyer Power Cord Setup DVD Rom Setup Guide Feed Roller User Registration Card Warranty Card |
| Energy Star | Yes |
| Country of Origin | Japan |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 6 (ErP Lot 6) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum scanning speed of the Canon ScanFront 400?
The ScanFront 400 scans at 45 pages per minute for both color and monochrome documents. When scanning duplex pages, this translates to 90 images per minute as both sides are captured simultaneously. This high throughput makes the scanner suitable for environments with substantial daily scanning volumes where processing speed directly impacts workflow efficiency.
How many sheets can the automatic document feeder hold?
The automatic document feeder has a 60-sheet capacity, allowing for extended batch scanning without frequent reloading. This capacity is sufficient for processing typical document stacks encountered in office environments, reducing operator intervention and improving overall scanning productivity during document digitization workflows.
What document sizes does this scanner support?
The ScanFront 400 supports media up to 11 inches by 17 inches, which includes tabloid size documents. It also handles standard office sizes including legal documents (8.5" x 14") and letter size pages. This range covers most business document formats encountered in professional environments, from standard correspondence to larger reports and presentations.
Does the scanner support double-sided scanning?
Yes, the ScanFront 400 features automatic duplex scanning capability. This allows both sides of a document to be captured in a single pass through the scanner, effectively doubling throughput for two-sided documents. Duplex scanning is essential for digitizing modern business documents that frequently utilize both sides of the page, such as contracts, reports, and multi-page correspondence.
What connectivity options are available?
The scanner includes USB connectivity for direct connection to individual workstations. Additionally, as a networked document scanner, it can be connected to office networks to serve as a shared scanning resource accessible by multiple users. This dual connectivity approach provides deployment flexibility for both individual and workgroup scanning requirements.
What environmental certifications does this scanner have?
The ScanFront 400 carries EPEAT Gold certification, indicating high environmental standards in its design and manufacturing. It is also Energy Star compliant and meets Energy-related Products Directive Lot 6 (ErP Lot 6) requirements for energy efficiency. The scanner complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) regulations for reduced environmental impact.
