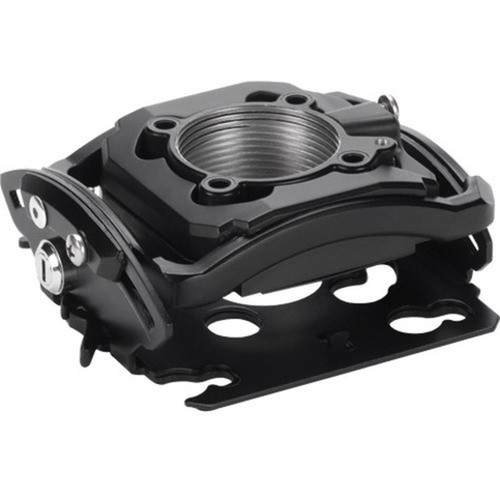

Chief RSMD284 Mini Elite Mounting Adapter for Projectors - Quick Release - Locking - Adjustable Roll/Pitch/Yaw - Cable Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This mounting adapter provides comprehensive adjustment options including roll, pitch, and yaw controls, allowing fine-tuning of projector alignment for optimal image projection. The integrated cable management system helps organize power and signal cables, reducing clutter and enhancing safety in installed environments.
With dimensions of 1.80" height, 4.40" width, and 5.10" depth, the RSMD284 maintains a compact footprint that fits discreetly in various installation scenarios. The adapter's construction supports reliable performance in fixed installations where consistent positioning is critical.
This section brings together practical product details such as Device Supported, Features, Height, Width, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The RSMD284 combines multiple professional mounting features in a single compact adapter, providing installers with versatile adjustment capabilities while maintaining secure attachment. The locking mechanism prevents accidental movement once the projector is properly positioned.
Precision Adjustment
Independent roll, pitch, and yaw adjustments enable precise alignment of projector optics for perfect image geometry and focus.
- Fine-tune projection angle
- Correct for installation variances
- Maintain alignment over time
Secure Installation
The locking mechanism ensures the projector remains securely mounted even in environments with vibration or incidental contact.
- Prevents accidental displacement
- Maintains calibration settings
- Enhances safety in public spaces
Deployment / Use Cases
The Chief RSMD284 is designed for professional AV installations where reliable projector mounting is essential. Its compact size and adjustment capabilities make it suitable for conference rooms, classrooms, training facilities, and digital signage applications.
This adapter excels in environments where projectors need to be securely mounted to ceilings, walls, or specialized structures while maintaining the flexibility for periodic realignment. The quick-release mechanism supports efficient maintenance workflows, allowing technicians to service projectors without completely disassembling the mounting system.
Educational Facilities
Ideal for classroom and lecture hall installations where projectors require secure mounting with occasional adjustment for different presenters or content types.
Corporate AV Systems
Suits conference rooms and boardrooms where professional presentation equipment needs reliable, discreet mounting with precise alignment capabilities.
Physical Profile
With a compact form factor measuring 1.80" × 4.40" × 5.10", the RSMD284 adapter fits discreetly in various installation scenarios without adding significant bulk. The design prioritizes functional efficiency while maintaining a low-profile appearance that blends with professional AV environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.80" (45.72 mm), 4.40" (111.76 mm), 5.10" (129.54 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.40" (111.76 mm)
- Depth
- 5.10" (129.54 mm)
- Height
- 1.80" (45.72 mm)
Highlights
- Chief Mini Elite series mounting adapter for projectors
- Quick-release mechanism for easy maintenance access
- Locking mechanism ensures secure installation
- Adjustable roll, pitch, and yaw for precise alignment
- Integrated cable management system
- Compact dimensions: 1.80"H × 4.40"W × 5.10"D
- Manufactured in the United States
- 10-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | RSMD284 |
| Brand Name | Chief |
| Product Line | Mini Elite |
| Product Model | RSMD284 |
| Product Name | Mini Elite Custom Projector Mount (Lock D) |
| Product Type | Mounting Adapter |
| Product Information | |
| Device Supported | Projector |
| Features | Quick Release Mechanism,Locking Mechanism,Cable Management,Adjustable,Roll Adjustment,Pitch Adjustment,Yaw Adjustment |
| Physical Characteristics | |
| Height | 1.80" (45.72 mm) |
| Width | 4.40" (111.76 mm) |
| Depth | 5.10" (129.54 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 10 Year |
FAQ
What type of equipment does the Chief RSMD284 mount support?
The Chief RSMD284 Mini Elite Mounting Adapter is specifically designed to support projectors. It provides secure mounting for compact projector fixtures with professional adjustment capabilities including roll, pitch, and yaw controls for precise alignment.
What adjustment capabilities does this mounting adapter offer?
This adapter provides comprehensive three-axis adjustment with independent roll, pitch, and yaw controls. These adjustments allow installers to fine-tune projector positioning for optimal image geometry, ensuring proper alignment with projection surfaces in various installation scenarios.
How does the quick-release mechanism benefit installation and maintenance?
The quick-release mechanism enables technicians to detach the projector from the mount without tools, simplifying maintenance, cleaning, and equipment replacement tasks. This feature reduces downtime during service operations while maintaining the integrity of the mounting system's alignment settings.
What are the physical dimensions of the RSMD284 mounting adapter?
The adapter measures 1.80 inches in height (45.72 mm), 4.40 inches in width (111.76 mm), and 5.10 inches in depth (129.54 mm). This compact footprint allows discreet installation while providing full adjustment capabilities for professional projector mounting applications.
What warranty coverage does Chief provide for this mounting adapter?
Chief offers a 10-year limited warranty for the RSMD284 Mini Elite Mounting Adapter. This extended warranty period reflects the product's durable construction and reliable performance in professional AV installations, providing long-term confidence for commercial deployments.
Where is the Chief RSMD284 mounting adapter manufactured?
The Chief RSMD284 Mini Elite Mounting Adapter is manufactured in the United States. This domestic production supports quality control and reliable supply chain management for professional AV integrators and installation teams requiring consistent product availability.
