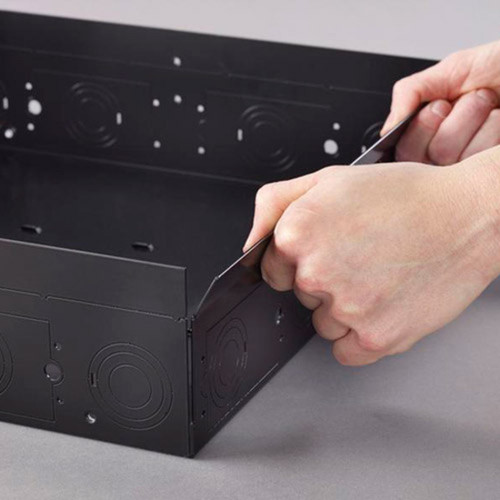

Chief PAC525F In-Wall Storage Box with Flange - Black - 15. 40" x 10. 26" x 3. 88" Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PAC525F features a compact design with external dimensions of 15.40 inches in width, 10.26 inches in height, and 3.88 inches in depth. These measurements allow it to fit into standard wall stud spacing while providing adequate internal space for AV gear.
Constructed from durable materials, this box includes a flange that facilitates secure mounting and flush installation with wall surfaces. The black finish blends with most interior décors, and the unit is engineered for straightforward integration during construction or renovation projects.
This section brings together practical product details such as Product Color, Height, Width, Application/Usage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This mounting box offers several benefits for AV installers and integrators seeking reliable in-wall solutions.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Concealed Installation, Secure Support, Cable Management.
Concealed Installation
Hides equipment within walls to reduce clutter and maintain a professional appearance.
- Clean aesthetic
- Reduces visible cables
Secure Support
Provides stable mounting for AV components, preventing movement and ensuring longevity.
- Robust construction
- Flange for stability
Cable Management
Organizes cables internally to minimize tangles and improve airflow around installed gear.
- Neat routing
- Accessible ports
Deployment / Use Cases
The Chief PAC525F is suitable for various applications where in-wall equipment storage is needed. Its design supports both new construction and retrofit installations.
Common use cases include mounting AV receivers, media players, network switches, or control systems in conference rooms, classrooms, home theaters, and digital signage setups. The box can also house power supplies or small UPS units to keep them out of sight.
Commercial AV
Ideal for conference rooms and classrooms where equipment must be discreetly installed.
- Wall-mounted gear
- Professional integration
Residential Installations
Perfect for home theaters or multi-room audio systems requiring hidden components.
- Clean living spaces
- Easy access
Physical Profile
The mounting box has a sleek black finish that complements modern interiors. Its dimensions are optimized for standard wall cavities, and the flange ensures a flush fit with drywall or paneling. The design supports vertical or horizontal orientation based on installation requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.26" (260.60 mm), 15.40" (391.16 mm), 3.88" (98.55 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 15.40" (391.16 mm)
- Depth
- 3.88" (98.55 mm)
- Height
- 10.26" (260.60 mm)
Highlights
- Black in-wall storage box with flange for AV equipment
- Dimensions: 15.40" x 10.26" x 3.88" (391.16 mm x 260.60 mm x 98.55 mm)
- Designed for concealed installation and secure support
- Ideal for wall mounting in commercial and residential settings
- Facilitates organized cable management
- Robust construction for long-term reliability
- Flange design ensures stable mounting
- Suitable for new construction and retrofit projects
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PAC525F |
| Brand Name | Chief |
| Product Model | PAC525F |
| Product Name | In-Wall Storage Box with Flange |
| Product Type | Mounting Box |
| Physical Characteristics | |
| Product Color | Black |
| Height | 10.26" (260.60 mm) |
| Width | 15.40" (391.16 mm) |
| Depth | 3.88" (98.55 mm) |
| Miscellaneous | |
| Application/Usage | Wall |
| Country of Origin | China |
FAQ
What are the dimensions of the Chief PAC525F mounting box?
The Chief PAC525F measures 15.40 inches in width, 10.26 inches in height, and 3.88 inches in depth. These dimensions correspond to 391.16 mm wide, 260.60 mm high, and 98.55 mm deep, making it suitable for standard wall cavities.
What color is the PAC525F mounting box?
This mounting box is finished in black, which blends with most interior décors and provides a discreet appearance for in-wall installations.
How is the PAC525F mounted?
The PAC525F is designed for wall mounting. It includes a flange that facilitates secure installation, allowing it to be flush-mounted with wall surfaces for a clean, integrated look.
What type of equipment can be installed in this mounting box?
This box is suitable for AV equipment and accessories such as receivers, media players, network switches, control systems, or small power supplies. It provides concealed storage and cable management for various components.
Is the PAC525F suitable for both commercial and residential use?
Yes, the Chief PAC525F is engineered for use in commercial environments like conference rooms and classrooms, as well as residential settings such as home theaters. Its robust design supports reliable performance in diverse applications.
Does the mounting box include any accessories?
The PAC525F is a standalone mounting box with a flange. It does not include additional accessories like mounting hardware or cables, so installers should prepare those separately based on specific project needs.
