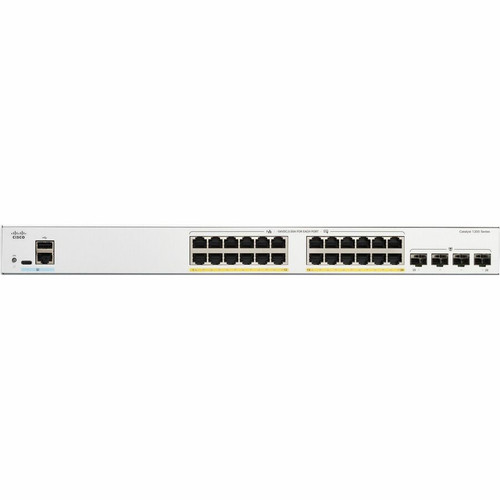

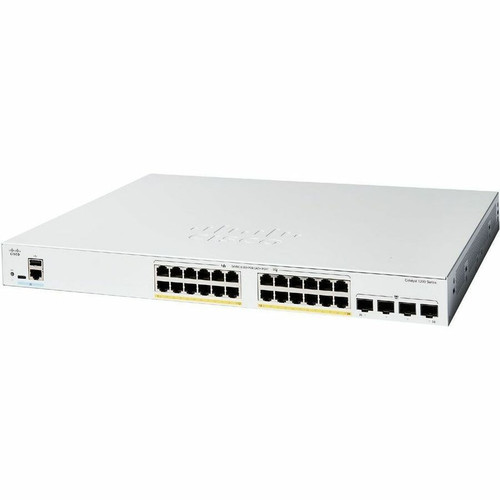

Cisco C1200-24FP-4G Catalyst Managed Ethernet Switch - 24 Port PoE+ Gigabit - 4 SFP Slots - Layer 3375W PoE Budget - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Catalyst C1200-24FP-4G operates as a full-featured managed switch with a comprehensive set of networking standards, including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLAN support, IEEE 802.3ad for link aggregation, and IEEE 802.1x for network access control. Its Gigabit Ethernet technology ensures high-speed data transfer across all ports, with backward compatibility to 10/100 Mbps devices.
Power over Ethernet capabilities are central to this switch's design, with a 375-watt PoE budget to support multiple powered devices without external injectors. The integrated power supply accepts 120-230V AC input, providing global voltage compatibility. Advanced management features include SNMP, CLI, and web-based interfaces for granular control over network traffic, security policies, and quality of service settings.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Stack Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch combines high port density with advanced power and management features, making it an ideal foundation for growing networks. Its PoE+ support eliminates the need for separate power adapters at endpoint locations, simplifying deployments and reducing cable clutter.
High-Density PoE+
Delivers up to 30W per port across 24 Gigabit Ethernet ports, supporting the latest PoE+ devices like high-performance access points and pan-tilt-zoom cameras.
- 375W total PoE budget
- IEEE 802.3at compliant
- Auto-sensing per port
Flexible Uplink Options
Four SFP slots enable fiber or copper uplinks for connecting to network cores, other switches, or internet gateways with media flexibility.
- 1000Base-X support
- Hot-swappable modules
- Dual-media capability
Enterprise-Grade Management
Full Layer 3 feature set includes static routing, ACLs, and QoS policies for traffic prioritization and network segmentation.
- VLAN support
- Link aggregation
- SNMP v3 monitoring
Deployment / Use Cases
The Catalyst C1200-24FP-4G is designed for environments requiring reliable, high-performance switching with power delivery capabilities. Its 24-port configuration makes it suitable for office workgroups, retail locations, educational classrooms, and small business networks where multiple devices need both connectivity and power.
In VoIP deployments, this switch can power IP phones while providing quality of service for voice traffic. For wireless networks, it delivers power to multiple access points while handling backhaul traffic through its SFP uplinks. Security installations benefit from PoE+ support for IP cameras and access control systems, with the switching capacity to handle high-resolution video streams.
Office Network Core
Serve as the main switch for departments with multiple computers, printers, and VoIP phones, using Layer 3 features for inter-VLAN routing.
Wireless Infrastructure Support
Power and connect enterprise wireless access points while using SFP uplinks for high-speed backhaul to network controllers.
Physical Profile
The switch features a standard 1U rack-mountable design measuring 1.73" (44 mm) in height, 17.52" (445 mm) in width, and 13.58" (345 mm) in depth. This compact form factor fits seamlessly into most server racks and network cabinets. With a weight of approximately 10.14 lb (4600 g), the switch is substantial enough for stable mounting while remaining manageable for installation. Front-to-back airflow supports proper cooling in enclosed rack environments, and the metal construction ensures durability in commercial settings.
- Width
- 17.52" (445 mm)
- Depth
- 13.58" (345 mm)
- Height
- 1.73" (44 mm)
- Weight
- 10.14 lb (4600 g)
Highlights
- 24 Gigabit Ethernet PoE+ ports for simultaneous data and power delivery
- 375W total PoE budget supports multiple high-power devices
- 4 SFP slots for flexible fiber or copper uplink connections
- Layer 3 switching capability for advanced routing and segmentation
- Full manageability with SNMP, CLI, and web interface options
- Rack-mountable 1U form factor for professional installations
- Stack port for easy network expansion without complex configuration
- Supports comprehensive IEEE networking standards for interoperability
- 120-230V AC input voltage for global deployment flexibility
- Built-in power supply with 449.70W maximum consumption rating
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1200-24FP-4G |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24FP-4G |
| Product Name | Catalyst C1200-24FP-4G Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.11ac,IEEE 802.1x,IEEE 802.3az,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 449.70 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.52" (445 mm) |
| Depth | 13.58" (345 mm) |
| Weight (Approximate) | 10.14 lb (4600 g) |
User Manual
FAQ
How many PoE+ devices can this switch power simultaneously?
The Cisco Catalyst C1200-24FP-4G has a total PoE budget of 375 watts distributed across its 24 Gigabit Ethernet ports. Each port can deliver up to 30W following the IEEE 802.3at standard. The actual number of devices powered simultaneously depends on their individual power requirements. For example, it could power approximately 12-15 typical IP phones (7-10W each) or 8-10 standard wireless access points (15-20W each) while staying within the total budget.
What types of SFP modules are compatible with this switch?
This switch supports standard SFP (Small Form-factor Pluggable) modules for both copper and fiber connections. Compatible modules include 1000BASE-T copper SFPs for twisted pair connections up to 100 meters, and 1000BASE-X fiber SFPs for single-mode or multi-mode fiber optic connections. The four SFP slots are hot-swappable, allowing module changes without powering down the switch. Always use Cisco-qualified or compatible SFP modules to ensure proper operation and support.
Does this switch support VLAN configuration and management?
Yes, the Catalyst C1200-24FP-4G fully supports IEEE 802.1Q VLAN tagging and management. As a Layer 3 managed switch, it can create multiple VLANs for network segmentation, assign ports to specific VLANs, and configure inter-VLAN routing. This capability allows you to separate traffic for different departments, security zones, or device types while maintaining controlled communication between them through the switch's routing functionality.
What management interfaces are available for configuring this switch?
This switch offers multiple management interfaces including a web-based graphical interface for browser access, a command-line interface (CLI) for advanced configuration, and SNMP (Simple Network Management Protocol) v1/v2c/v3 for integration with network monitoring systems. It also supports Telnet and SSH for remote command-line access. These interfaces provide control over all switch features including port configuration, VLAN setup, QoS policies, security settings, and monitoring statistics.
Can this switch be mounted in a standard server rack?
Yes, the Cisco Catalyst C1200-24FP-4G is designed for standard 19-inch server rack mounting with a 1U (1.73-inch/44mm) height profile. It includes mounting brackets and uses front-to-back airflow compatible with typical rack cooling configurations. The switch dimensions of 17.52" wide, 13.58" deep, and 10.14 lb weight make it suitable for most commercial rack installations. Proper rack mounting ensures organized cable management and secure installation in network closets or data centers.
What is the difference between Layer 2 and Layer 3 switching on this device?
This switch operates at Layer 3, which means it can perform both switching (Layer 2) and routing (Layer 3) functions. Layer 2 switching forwards traffic based on MAC addresses within the same subnet or VLAN. Layer 3 capabilities add IP routing between different subnets or VLANs without needing a separate router. The C1200-24FP-4G supports static routing, access control lists based on IP addresses, and quality of service policies at the IP layer, providing more advanced network segmentation and traffic management than basic Layer 2 switches.
