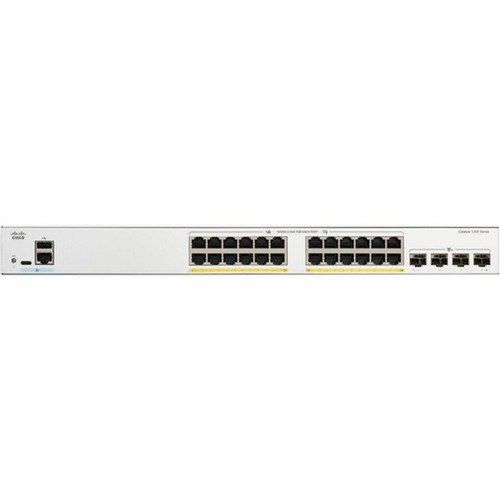

Cisco C1200-24FP-4X Catalyst Ethernet Switch - 24 Port PoE+ with 4x SFP+ Uplinks - Layer 3 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The C1200-24FP-4X provides 24 Gigabit Ethernet ports with PoE+ support, each capable of delivering up to 30 watts per port to powered devices. Four SFP+ expansion slots offer flexible 10 Gigabit uplink options using optical fiber or copper transceivers, enabling high-speed backbone connections and network aggregation.
Layer 3 switching functionality supports inter-VLAN routing, dynamic routing protocols, and access control lists for segmented and secure network designs. The switch operates with a comprehensive set of networking standards, including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLANs, and IEEE 802.3ad for link aggregation.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch stands out with its balanced combination of port density, PoE capacity, and uplink flexibility, making it suitable for converged voice, video, and data networks.
High-Density PoE+
All 24 ports support PoE+, providing ample power for connected devices without external injectors, streamlining installations and reducing points of failure.
- 30W per port
- 375W total budget
- IEEE 802.3at compliant
10Gb Uplink Readiness
Four SFP+ slots enable 10 Gigabit uplinks for high-bandwidth aggregation, backbone connections, or linking to servers and storage, future-proofing network infrastructure.
- Supports fiber and copper
- Flexible media options
- High-speed connectivity
Enterprise Management
Layer 3 managed capabilities offer advanced routing, security policies, and network segmentation, providing control and visibility for IT administrators.
- Inter-VLAN routing
- Quality of Service
- Comprehensive standards support
Deployment / Use Cases
The Cisco Catalyst C1200-24FP-4X is ideal for mid-sized business networks, campus wiring closets, and converged environments where reliable PoE and uplink performance are critical.
Its fanless operation makes it suitable for office spaces, classrooms, or retail locations where noise reduction is important, while the 1U rack-mountable design ensures easy integration into standard server racks or network cabinets.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Converged Office Networks
Deploy as a core switch for offices requiring simultaneous connectivity for computers, IP phones, wireless access points, and security cameras, with PoE+ eliminating separate power supplies.
Campus Distribution
Use in wiring closets to aggregate traffic from multiple access switches, leveraging Layer 3 routing and 10Gb uplinks for efficient backhaul to the network core.
Physical Profile
The switch features a compact 1U rack-mountable form factor with dimensions of 1.73" height, 17.50" width, and 13.59" depth, fitting standard 19-inch racks. Its fanless design ensures silent operation, while the robust metal construction provides durability in rack environments. The switch weighs approximately 10.14 pounds, making it manageable for installation and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 17.50" (444.50 mm), 13.59" (345.19 mm), 10.14 lb (4600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 13.59" (345.19 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.14 lb (4600 g)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for powered devices
- 4 SFP+ slots for 10 Gigabit uplinks using fiber or copper transceivers
- Layer 3 managed switching with advanced routing and security features
- 375-watt PoE budget to power multiple devices simultaneously
- Fanless design for silent operation in office environments
- 1U rack-mountable form factor for easy integration into standard racks
- Supports comprehensive networking standards including IEEE 802.3af/at, 802.1Q, and 802.3ad
- Input voltage compatibility with 120V AC and 230V AC for global deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1200-24FP-4X |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24FP-4X |
| Product Name | Catalyst C1200-24FP-4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.11ac,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 437.40 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.59" (345.19 mm) |
| Weight (Approximate) | 10.14 lb (4600 g) |
User Manual
FAQ
How many PoE+ ports does this switch have?
The Cisco Catalyst C1200-24FP-4X has 24 Gigabit Ethernet ports, all of which support PoE+ (Power over Ethernet Plus). This means each port can deliver up to 30 watts of power to connected devices such as wireless access points, IP phones, or security cameras, with a total PoE budget of 375 watts for the entire switch.
What type of uplink options are available?
This switch includes four SFP+ expansion slots for uplink connections. These slots support 10 Gigabit Ethernet transceivers, allowing you to use either optical fiber or copper cabling for high-speed uplinks to other switches, routers, or servers. The SFP+ slots provide flexibility for backbone connections and network aggregation.
Is this switch Layer 2 or Layer 3 managed?
The Cisco Catalyst C1200-24FP-4X is a Layer 3 managed switch. It supports advanced routing protocols, inter-VLAN routing, access control lists, and quality-of-service features. This enables more sophisticated network designs, improved traffic management, and enhanced security compared to basic Layer 2 switches.
What is the PoE budget of this switch?
The switch has a total PoE budget of 375 watts. This budget is shared across all 24 PoE+ ports, allowing you to power multiple devices simultaneously. The budget ensures sufficient power for connected PoE devices while maintaining switch operation, with each port capable of delivering up to 30 watts as per IEEE 802.3at standards.
Can this switch be rack-mounted?
Yes, the Cisco Catalyst C1200-24FP-4X is designed for rack mounting with a 1U form factor. It fits standard 19-inch server racks and includes the necessary mounting hardware. The compact dimensions (1.73"H x 17.50"W x 13.59"D) make it easy to integrate into existing rack infrastructure for organized cable management.
Does this switch support fiber connections?
Yes, the switch supports fiber connections through its four SFP+ slots. You can install SFP+ fiber transceivers to connect to fiber optic cabling for longer distance runs or environments where electrical interference is a concern. The switch also supports twisted pair copper connections through its RJ-45 ports for standard Ethernet cabling.
