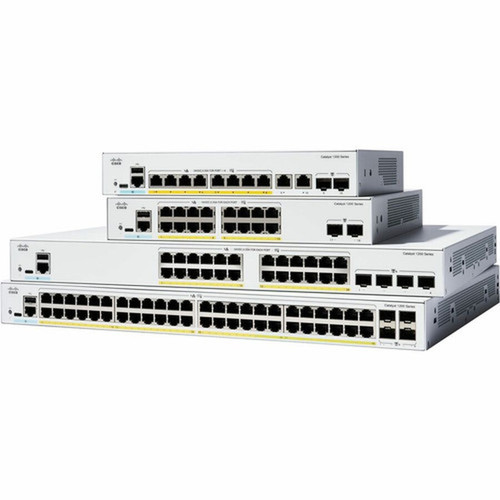

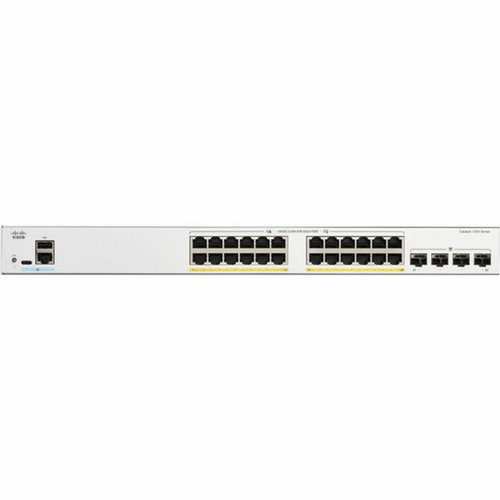

Cisco C1200-24P-4G Catalyst 24-Port Gigabit PoE+ Managed Layer 3 Switch with 4 SFP Slots - 195W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, supporting advanced routing protocols and VLAN management for segmented network architectures. The 24 Gigabit Ethernet ports all deliver PoE+ power with a total budget of 195 watts, enabling simultaneous power delivery to multiple devices without requiring separate power injectors.
Four dedicated SFP slots provide flexible uplink options for fiber or copper connections, supporting both 1000Base-X and 10/100/1000Base-T standards. The switch implements comprehensive networking standards including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLAN tagging, IEEE 802.1x for port-based authentication, and IEEE 802.3ad for link aggregation.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The C1200-24P-4G delivers enterprise-level switching capabilities in an accessible package, combining power, performance, and manageability for growing networks.
High-Density PoE+ Deployment
All 24 ports provide PoE+ power with intelligent power management, eliminating the need for separate power supplies for connected devices while optimizing power allocation across the switch.
- 195W total PoE budget
- IEEE 802.3at compliant
- Per-port power management
Advanced Layer 3 Features
Beyond basic switching, this device supports routing between VLANs, quality of service policies, and advanced security features typically found in more expensive enterprise switches.
- Inter-VLAN routing
- QoS prioritization
- Access control lists
Flexible Connectivity Options
The combination of 24 copper ports and 4 SFP slots allows for mixed media deployments, supporting both traditional twisted pair cabling and fiber optic connections for longer distance runs.
- Dual-media support
- Fiber uplink capability
- Modular expansion
Deployment / Use Cases
This switch excels in environments requiring both high-density connectivity and power delivery, making it ideal for modern office networks, retail locations, educational facilities, and small to medium business deployments.
The Layer 3 capabilities enable network segmentation for security and performance, while the substantial PoE budget supports contemporary office infrastructure including VoIP phone systems, wireless access points, and security cameras.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Unified Office Network
Deploy as the core switch for office environments, powering IP phones, wireless access points, and desktop computers while providing VLAN segmentation for different departments or security zones.
Retail & Hospitality
Support point-of-sale systems, digital signage, guest Wi-Fi access points, and security systems with reliable PoE power and managed switching capabilities for critical business operations.
Physical Profile
Designed for standard 19-inch rack installation, the switch occupies just 1U of vertical space with dimensions of 17.50" wide × 11.77" deep × 1.73" high. The compact footprint maximizes rack density while the 7.78 lb weight ensures easy handling during installation. The fanless thermal design eliminates moving parts for increased reliability and silent operation in office environments.
- Width
- 17.50" (444.50 mm)
- Depth
- 11.77" (298.96 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 7.78 lb (3530 g)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support on all ports
- 195W total PoE budget for powering multiple devices simultaneously
- Layer 3 switching capabilities for advanced routing and VLAN management
- 4 SFP slots for fiber or copper uplink expansion
- Fanless design for silent operation in office environments
- 1U rack-mountable form factor for standard rack installation
- Full manageability with comprehensive feature set
- Supports both optical fiber and twisted pair media types
- IEEE 802.3af/at compliant for standards-based PoE delivery
- Dual voltage input (120V/230V AC) for global deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1200-24P-4G |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24P-4G |
| Product Name | Catalyst C1200-24P-4G Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.11ac,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 195 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 236.40 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 11.77" (298.96 mm) |
| Weight (Approximate) | 7.78 lb (3530 g) |
User Manual
FAQ
What is the total PoE budget of this switch?
The Cisco Catalyst C1200-24P-4G provides a total PoE budget of 195 watts. This power is intelligently managed across all 24 ports, allowing you to power multiple PoE+ devices simultaneously, such as IP phones, wireless access points, and security cameras, without requiring separate power supplies for each device.
How many SFP slots does this switch have?
This switch includes four dedicated SFP (Small Form-factor Pluggable) slots for expansion. These slots support both fiber optic and copper SFP modules, providing flexible uplink options for connecting to other switches or network infrastructure over longer distances or different media types.
What does Layer 3 switching capability provide?
Layer 3 switching enables the device to perform routing functions between different network segments or VLANs. This allows for more efficient traffic flow, improved network segmentation for security, and support for advanced features like quality of service (QoS) policies and access control lists beyond basic Layer 2 switching.
Is this switch fanless?
Yes, the Cisco Catalyst C1200-24P-4G features a completely fanless design. This eliminates moving parts for increased reliability and ensures silent operation, making it suitable for office environments, classrooms, retail spaces, or any location where noise reduction is important.
What rack space does this switch require?
The switch occupies 1U (one rack unit) of vertical space in a standard 19-inch rack. With dimensions of 17.50 inches wide, 11.77 inches deep, and 1.73 inches high, it fits efficiently in most rack configurations while providing full 24-port connectivity with PoE+ capabilities.
What types of network media does this switch support?
This switch supports both optical fiber and twisted pair copper cabling. The 24 RJ-45 ports handle traditional Ethernet over copper, while the four SFP slots can accommodate fiber optic modules for longer distance connections or copper SFP modules for additional copper connectivity options.
