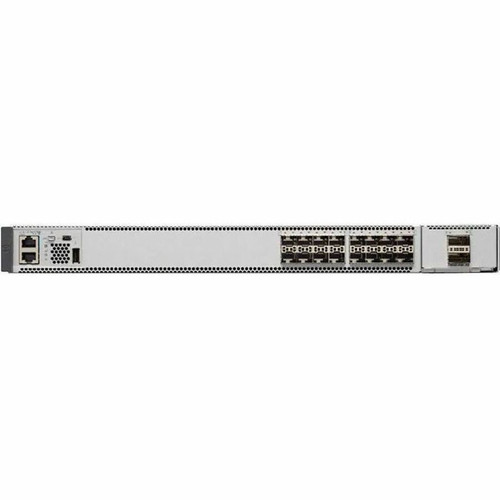

Cisco C9500-16X-1A Catalyst 9500 Series 16-Port SFP+ Switch - 10GbE Layer 3 Managed - 1U Rack-Mountable - 950W Power Supply
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 16 SFP+ ports supporting 10GbE connectivity through optical fiber media, making it ideal for backbone and aggregation layer deployments where high bandwidth and longer distance connections are required. The 10GBase-X network technology ensures compatibility with industry-standard fiber optic cabling and transceivers.
Layer 3 support provides advanced routing functionality, including dynamic routing protocols, VLAN routing, and access control lists for sophisticated network segmentation and traffic optimization. The switch supports comprehensive networking standards including IEEE 802.1Q for VLAN tagging, IEEE 802.1x for port-based authentication, and IEEE 802.3ae for 10GbE operations.
Relevant factors for this section include Uplink Port, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Catalyst C9500-16X-1A combines high-density 10GbE connectivity with enterprise-grade management features to create a foundation for modern network infrastructure. Its architecture supports both current performance requirements and future scalability needs.
High-Density 10GbE Connectivity
Sixteen SFP+ ports deliver 10 Gigabit Ethernet performance for bandwidth-intensive applications, server connectivity, and network backbone requirements.
- Supports optical fiber media for longer distance connections
- 10GBase-X technology for standardized fiber optic compatibility
Enterprise Management Capabilities
Full Layer 3 routing functionality enables sophisticated network design with dynamic routing protocols, VLAN routing, and granular traffic control.
- Comprehensive IEEE standards support for interoperability
- Managed interface for configuration and monitoring
Reliable Power Architecture
950W power supply with support for redundant power configurations ensures continuous operation in mission-critical environments.
- Dual power supply capability for redundancy
- 120V/230V AC input voltage compatibility
Deployment / Use Cases
This switch is engineered for deployment in enterprise data centers, campus network cores, and medium to large business environments where high-performance switching and routing are essential. Its 10GbE capabilities make it particularly suitable for aggregation layer applications where multiple access switches converge.
The Layer 3 functionality enables deployment as a routing switch in segmented network architectures, supporting inter-VLAN routing, dynamic routing protocols, and policy-based routing for optimized traffic flow. The optical fiber support extends deployment possibilities across buildings or campuses where copper distance limitations would be restrictive.
Data Center Aggregation
Serve as an aggregation switch connecting multiple access switches to core network infrastructure with 10GbE uplinks.
Campus Network Backbone
Provide high-speed connectivity between buildings using fiber optic cabling for extended reach and bandwidth.
Physical Profile
The switch features a standard 1U rack-mountable design with dimensions of 1.73" height, 17.50" width, and 21.52" depth, making it compatible with standard 19" server racks. The gray finish provides a professional appearance that blends with data center environments. At approximately 23.60 pounds, the switch offers substantial construction while remaining manageable for installation and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 17.50" (444.50 mm), 21.52" (546.61 mm), 23.60 lb (10704.78 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 21.52" (546.61 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 23.60 lb (10704.78 g)
What's in the Box
The package includes all essential components for immediate deployment in rack-mounted environments.
Highlights
- 16 SFP+ ports for 10GbE connectivity
- Layer 3 routing capabilities for scalable network design
- 1U rack-mountable form factor for standard server racks
- 950W power supply with redundant power support
- Managed switch with comprehensive configuration options
- Optical fiber media support for extended distance connections
- Compatible with 120V and 230V AC input voltages
- Gray finish for professional data center appearance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9500-16X-1A |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9500 |
| Product Model | C9500-16X |
| Product Name | Catalyst C9500-16X Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x 10 Gigabit Ethernet Expansion Slot,1 x Uplink |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 16 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 16 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ae,IEEE 802.1BA,IEEE 802.1x,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.1ad,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 950 W |
| Plug/Connector Type | C14,C15 |
| Input Receptacles | IEC 60320 C16 |
| Physical Characteristics | |
| Product Color | Gray |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 21.52" (546.61 mm) |
| Weight (Approximate) | 23.60 lb (10704.78 g) |
| Miscellaneous | |
| Package Contents | Catalyst C9500-16X Ethernet Switch 1 x Power Supply 19" Brackets |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many 10GbE ports does this switch have?
The Cisco Catalyst C9500-16X-1A features 16 SFP+ ports that support 10 Gigabit Ethernet connectivity. These ports are designed for use with optical fiber media and SFP+ transceivers, providing high-bandwidth connections suitable for server links, network aggregation, and backbone applications in enterprise environments.
Does this switch support Layer 3 routing?
Yes, this switch provides full Layer 3 routing capabilities. It supports dynamic routing protocols, inter-VLAN routing, and advanced traffic management features that enable it to function as a routing switch in segmented network architectures. This allows for scalable network design with efficient traffic flow between different network segments.
What type of power supply does this switch use?
The switch includes a 950W power supply and supports redundant power configurations with the capability for two power supplies. It accepts both 120V and 230V AC input voltages, providing flexibility for different electrical infrastructures. The power connectors are C14/C15 types with IEC 60320 C16 input receptacles.
Is this switch rack-mountable?
Yes, the Catalyst C9500-16X-1A is designed for rack mounting with a standard 1U form factor. It includes 19" brackets for installation in standard server racks. The dimensions are 1.73" height, 17.50" width, and 21.52" depth, making it compatible with typical data center rack configurations.
What type of media does this switch support?
This switch supports optical fiber media through its SFP+ ports. The 10GBase-X network technology ensures compatibility with industry-standard fiber optic cabling and transceivers. This allows for longer distance connections compared to copper cabling, making it suitable for campus and building-to-building deployments.
What management features does this switch offer?
As a fully manageable switch, it provides comprehensive configuration, monitoring, and troubleshooting capabilities. It supports numerous IEEE networking standards including 802.1Q for VLANs, 802.1x for authentication, and 802.3ae for 10GbE operations. The management interface allows for granular control over switch operations and network policies.
