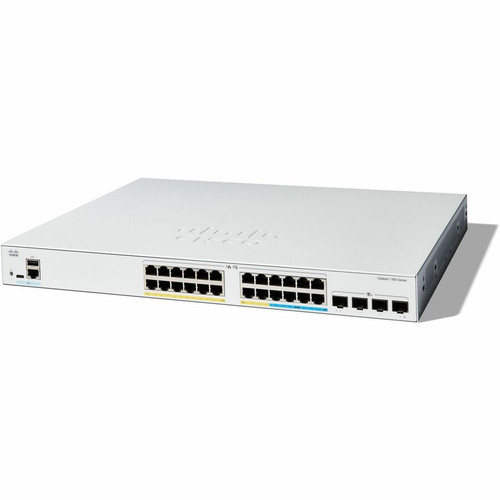

Cisco C1300-24MGP-4X-RF Catalyst 1300 24-Port Managed Switch - 16x Gigabit PoE+ - 8 x 2. 5GbE PoE+ - 4x SFP+ Uplinks - 375W PoE Budget - Layer 3 - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports a multispeed Ethernet architecture with Gigabit Ethernet, 2.5 Gigabit Ethernet, and 10 Gigabit Ethernet technologies, allowing flexible connectivity for devices ranging from legacy equipment to high-performance endpoints. The media types include twisted pair for copper connections and optical fiber via the SFP+ slots, supporting network standards like 1000Base-T, 2.5GBase-T, and 10GBase-X for reliable data transfer up to 100 meters over copper.
Networking protocols encompass IEEE 802.1x for security, IEEE 802.3ad for link aggregation, IEEE 802.1Q for VLAN tagging, and PoE standards IEEE 802.3af/at for power delivery. The input voltage accepts 120 V AC or 230 V AC, providing compatibility with North American and international power systems. With a power consumption of 46.10 W under typical load, it balances performance with energy efficiency.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Catalyst 1300 switch offers a compelling blend of port density, PoE capacity, and uplink flexibility that addresses common network upgrade challenges. Its 375W PoE budget can simultaneously power multiple high-demand devices, reducing cable clutter and installation costs by eliminating separate power supplies. The inclusion of 2.5GbE ports future-proofs networks for emerging devices that require higher bandwidth than standard Gigabit Ethernet.
Enhanced Performance with Layer 3
Layer 3 switching enables inter-VLAN routing, improved traffic prioritization, and better network segmentation, which enhances overall network performance and security compared to basic Layer 2 switches.
Scalable Uplink Options
Four SFP+ slots support 10 Gigabit Ethernet fiber or DAC connections, providing high-speed uplinks to core switches or servers without bottlenecking aggregated traffic from the 24 downstream ports.
Energy-Efficient Design
With a power consumption of 46.10 W and support for IEEE 802.3az energy-efficient Ethernet, this switch minimizes operational costs while maintaining full functionality during active use.
Deployment / Use Cases
This switch is ideal for small to medium-sized business networks, educational campuses, and retail environments where reliable, managed switching with PoE is essential. It serves as an access layer switch connecting end-user devices, IP telephony systems, and wireless infrastructure while providing uplinks to distribution or core layers.
Common deployments include office networks with mixed device types, where the 16 Gigabit PoE+ ports power VoIP phones and basic access points, and the 8 2.5GbE PoE+ ports support newer Wi-Fi 6 access points or high-resolution security cameras. In edge computing scenarios, the SFP+ uplinks facilitate high-bandwidth connections to servers or storage arrays, ensuring low-latency data transfer. The 1U rack design also makes it suitable for network closets or compact data centers where space optimization is critical.
Unified Office Network
Deploy as the central switch in an office to connect computers, printers, IP phones, and Wi-Fi access points, leveraging PoE to simplify installation and Layer 3 features for secure departmental segmentation.
High-Density PoE Environment
Use in surveillance or IoT deployments where multiple PoE devices like cameras and sensors require consistent power and data over single cables, supported by the 375W budget and 24 PoE+ ports.
Physical Profile

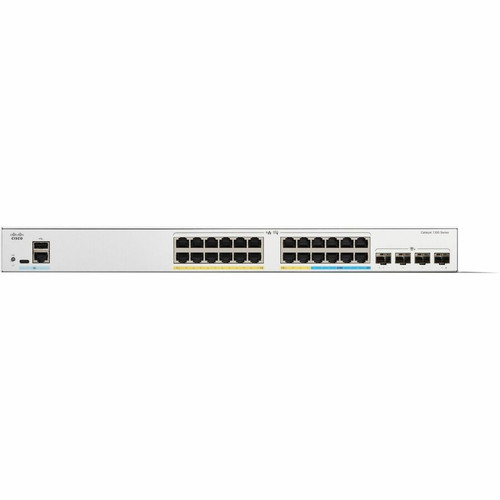

The switch features a compact 1U rack-mountable form factor with dimensions of 1.73" (43.94 mm) height, 17.50" (444.50 mm) width, and 13.78" (350.01 mm) depth, designed to fit standard 19-inch server racks. Its weight of approximately 12.19 lb (5530 g) ensures stable mounting without excessive load. The rugged metal construction supports reliable operation in typical office or data center environments, with front-accessible ports and LEDs for easy monitoring and cable management.
- Width
- 17.50" (444.50 mm)
- Depth
- 13.78" (350.01 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 12.19 lb (5530 g)
Highlights
- 24 total network ports with 16 Gigabit PoE+ and 8 2.5GbE PoE+ for versatile device connectivity.
- 375W PoE budget powers multiple high-demand devices like IP phones, access points, and cameras.
- 4 SFP+ uplink slots support 10 Gigabit Ethernet for high-speed backbone or server connections.
- Layer 3 switching enables advanced routing, VLANs, and QoS for optimized network performance.
- 1U rack-mountable design fits standard server racks, saving space in network closets.
- Supports multispeed Ethernet including Gigabit, 2.5GbE, and 10GbE for future-proof scalability.
- Manageable via industry-standard protocols for reliable network foundation and control.
- Energy-efficient with 46.10 W power consumption and compliance with IEEE 802.3az.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1300-24MGP-4X-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-24MGP-4X |
| Product Name | Catalyst 1300 C1300-24MGP-4X Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+,8 x 2.5 Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,2.5GBase-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.1s,IEEE802.3af,IEEE 802.3at,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | PoE+,Power Supply |
| Power Consumption | 46.10 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.78" (350.01 mm) |
| Weight (Approximate) | 12.19 lb (5530 g) |
User Manual
FAQ
How many PoE ports does this switch have and what is the total PoE budget?
This switch has 24 PoE+ ports, consisting of 16 Gigabit Ethernet PoE+ ports and 8 2.5 Gigabit Ethernet PoE+ ports. The total PoE budget is 375 watts, which can deliver up to 25.5W per port to power devices like IP phones, wireless access points, and security cameras over standard Ethernet cables.
What are the uplink options available on this Cisco Catalyst switch?
The switch includes 4 SFP+ expansion slots that support 10 Gigabit Ethernet connections. These uplinks can be used with optical fiber or DAC cables to connect to core switches, servers, or other high-speed network segments, providing scalable bandwidth for aggregated traffic from the 24 downstream ports.
Does this switch support Layer 3 switching and what are the benefits?
Yes, this switch supports Layer 3 switching, which enables advanced features like inter-VLAN routing, quality of service (QoS) for traffic prioritization, and improved network segmentation. Layer 3 capabilities enhance performance and security compared to basic Layer 2 switches, making it suitable for more complex network environments.
What is the form factor and rack compatibility of this switch?
This switch has a 1U rack-mountable form factor, meaning it occupies one unit of vertical space in a standard 19-inch server rack. Its dimensions are 1.73" height, 17.50" width, and 13.78" depth, with a weight of approximately 12.19 lb, designed for easy integration into network closets or data centers.
What Ethernet speeds and media types does this switch support?
The switch supports Gigabit Ethernet, 2.5 Gigabit Ethernet, and 10 Gigabit Ethernet speeds. It is compatible with twisted pair copper cables for connections up to 100 meters and optical fiber via the SFP+ slots, adhering to standards like 1000Base-T, 2.5GBase-T, and 10GBase-X for reliable data transfer.
Is this switch manageable and what management features does it offer?
Yes, this is a fully manageable switch. It supports industry-standard protocols such as IEEE 802.1x for security, IEEE 802.3ad for link aggregation, and IEEE 802.1Q for VLANs. Manageability allows for configuration, monitoring, and troubleshooting, providing a reliable foundation for business networks with control over performance and security settings.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair,Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
