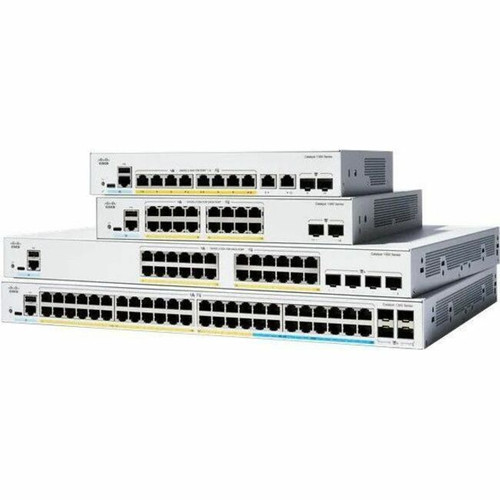

Cisco C1300-8MGP-2X-RF Catalyst 1300 8-Port Layer 3 Managed Switch - 4 x 2. 5G PoE+ - 4x Gigabit PoE+ - 2 x 10G SFP+ - 120W PoE Budget - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, supporting IP routing and inter-VLAN routing for efficient traffic segmentation and network scalability. It features four 10/100/1000BASE-T PoE+ ports and four 2.5 Gigabit Ethernet PoE+ ports, offering flexible connectivity for a range of devices from standard IP phones and access points to higher-bandwidth workstations and surveillance cameras.
Two 10 Gigabit Ethernet SFP+ expansion slots provide high-speed uplinks for aggregation or backbone connections, supporting both optical fiber and copper transceivers. The switch adheres to comprehensive IEEE networking standards including 802.3af/at for PoE, 802.1Q for VLANs, 802.1x for authentication, and 802.3ad for link aggregation.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Catalyst 1300 switch combines advanced management features with a robust physical design to deliver a reliable networking foundation. Its silent, fanless operation makes it ideal for office environments, classrooms, or retail spaces where noise reduction is important.
High-Density PoE+ Deployment
With 120 watts of PoE budget distributed across eight PoE+ ports, this switch can power a mix of devices such as VoIP phones, wireless access points, and IP cameras without requiring additional power injectors or midspan equipment.
- Supports IEEE 802.3af (PoE) and 802.3at (PoE+)
- Auto-sensing per port for connected device requirements
Scalable Uplink Options
The dual 10G SFP+ slots enable high-bandwidth connections to core switches, servers, or network storage, preventing bottlenecks as network demands grow. These slots support both short-reach copper and long-reach fiber optics.
- Future-proofs network backbone capacity
- Allows flexible media selection based on distance and environment
Deployment / Use Cases
This switch is well-suited for environments that require a balance of port density, PoE capability, and management features in a compact form factor. Its 1U rack-mount design integrates seamlessly into standard server racks, network closets, or wall-mounted enclosures.
Typical deployments include small business offices where the switch can serve as the core networking device, connecting workstations, printers, and PoE-powered devices while providing uplinks to internet routers or larger switches. In educational settings, it supports classroom technology including interactive displays, access points, and teacher workstations.
Retail and Hospitality Networks
The silent operation and PoE capabilities make this switch ideal for retail point-of-sale systems, digital signage, surveillance cameras, and guest Wi-Fi access points in hotels or restaurants.
Branch Office Connectivity
For remote offices or satellite locations, the switch provides reliable local switching with secure management options and high-speed uplinks back to corporate headquarters via fiber or copper connections.
Physical Profile
The switch features a clean white finish and measures 1.73 inches in height, occupying a single rack unit (1U) in standard 19-inch racks. Its depth of 12.72 inches accommodates proper cable management behind the unit, while the 10.56-inch width ensures compatibility with most rack enclosures. The built-in mounting brackets and front-to-back airflow design support efficient thermal management in enclosed spaces.
- Width
- 10.56" (268.22 mm)
- Depth
- 12.72" (323.09 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 5.82 lb (2640 g)
Highlights
- 8 total network ports with 4x 2.5G PoE+ and 4x Gigabit PoE+ connectivity
- 120W total PoE budget to power multiple devices simultaneously
- Dual 10 Gigabit SFP+ slots for high-speed uplink or expansion
- Layer 3 switching capabilities for advanced routing and VLAN management
- Fanless, silent operation ideal for office and retail environments
- 1U rack-mountable form factor with standard 19-inch rack compatibility
- Comprehensive IEEE standards support including 802.3af/at, 802.1Q, and 802.1x
- RJ-45 console port and USB Type-C management port for flexible administration
- Hot-swappable design for maintenance without network downtime
- Lifetime limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1300-8MGP-2X-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-8MGP-2X |
| Product Name | Catalyst 1300 C1300-8MGP-2X Layer 3 Switch |
| Product Condition | Refurbished |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Fanless,Plug and Play,Hot-swappable |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 4 x 10/100/1000BASE-T PoE+ RJ-45 Network Port,4 x 2.5 Gigabit Ethernet PoE+ RJ-45 Network Port,2 x 10 Gigabit Ethernet SFP+ Expansion Slot,1 x RJ-45 Console Port,1 x USB Type-C Management Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,2.5GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 21.30 W |
| Physical Characteristics | |
| Product Color | White |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10.56" (268.22 mm) |
| Depth | 12.72" (323.09 mm) |
| Weight (Approximate) | 5.82 lb (2640 g) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of devices can this switch power with its PoE+ capability?
The switch's 120W PoE budget supports IEEE 802.3af (PoE) and 802.3at (PoE+) standards, allowing it to power devices such as VoIP phones, wireless access points, IP surveillance cameras, and some thin clients. Each of the eight RJ-45 ports can deliver up to 30W per port under the PoE+ specification.
Can I use this switch for VLAN segmentation and inter-VLAN routing?
Yes, as a Layer 3 managed switch, it supports VLAN creation, tagging (802.1Q), and inter-VLAN routing. This allows you to segment network traffic for security, performance, or organizational purposes while maintaining connectivity between segments through IP routing capabilities.
What are the advantages of the 2.5 Gigabit Ethernet ports compared to standard Gigabit ports?
The four 2.5 Gigabit Ethernet ports provide 2.5 times the bandwidth of standard Gigabit ports, making them ideal for connecting higher-performance workstations, network-attached storage devices, or access points that support multi-gigabit speeds. This allows for better utilization of devices that exceed 1Gbps capabilities without requiring a full 10Gbps connection.
How do the SFP+ expansion slots enhance this switch's connectivity?
The two 10 Gigabit SFP+ slots enable high-speed uplinks to core switches, servers, or storage arrays. They support both copper and fiber optic transceivers, providing flexibility for short-distance connections within a rack or longer runs between floors or buildings. This prevents bottlenecks when aggregating traffic from the eight downstream ports.
Is this switch suitable for environments where noise is a concern?
Yes, the switch features a completely fanless design, producing zero audible noise during operation. This makes it ideal for deployment in offices, classrooms, libraries, retail spaces, or any environment where quiet operation is preferred or required.
What management options are available for configuring and monitoring this switch?
The switch offers multiple management interfaces including a traditional RJ-45 console port for command-line access and a modern USB Type-C port for alternative management connections. As a managed switch, it supports configuration via web interface, SNMP for monitoring, and comprehensive feature control including QoS, security policies, and port management.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
