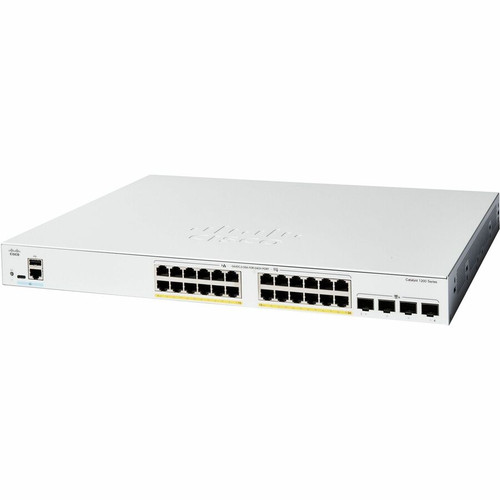

Cisco C1200-24FP-4X-RF Catalyst 24-Port Managed Switch - 24x PoE+ Gigabit - 4 x 10G SFP+ - Layer 3375W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 24 Gigabit Ethernet ports with PoE+ support, delivering up to 30W per port for powering devices like IP phones, wireless access points, and security cameras. The integrated 375W PoE budget allows simultaneous operation of multiple powered devices without external injectors. Four SFP+ expansion slots provide 10 Gigabit Ethernet uplinks, enabling high-bandwidth connections to core switches or servers for improved network throughput.
Layer 3 switching capabilities support advanced routing protocols, VLAN segmentation, and quality of service (QoS) for optimized traffic management. The switch complies with a broad range of IEEE networking standards, including 802.3af/at for PoE, 802.1Q for VLANs, and 802.3ad for link aggregation. Manageability is achieved through CLI, web interface, and SNMP, giving network administrators full control over configuration, monitoring, and troubleshooting.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Catalyst C1200-24FP-4X-RF offers several distinct advantages for network deployments. Its combination of PoE+ and high-speed uplinks reduces infrastructure complexity by eliminating separate power supplies for connected devices while ensuring ample bandwidth for aggregation. The Layer 3 functionality enables more sophisticated network designs with inter-VLAN routing and enhanced security policies.
High-Density PoE+
With 24 PoE+ ports and a 375W budget, this switch can power a full suite of networked devices, simplifying deployments in offices, schools, or retail environments.
- Eliminates need for external power adapters
- Supports PoE and PoE+ devices
- Centralized power management
10G Uplink Readiness
Four SFP+ slots provide flexible 10 Gigabit connectivity options, allowing fiber or copper uplinks to handle increased traffic from multiple access switches or servers.
- Future-proofs network backbone
- Supports both fiber and copper SFP+ modules
- Enables link aggregation for redundancy
Deployment / Use Cases
This switch is ideal for medium-sized business networks requiring both access layer connectivity and distribution layer capabilities. Its PoE+ support makes it particularly well-suited for unified communications deployments where IP phones, video conferencing systems, and wireless access points need both data and power from a single source.
In educational environments, the switch can support classroom technology including interactive displays, cameras, and student devices while providing the management features needed for IT control. For retail or hospitality deployments, it powers POS systems, digital signage, and security cameras while handling transaction data with reliable performance. The 1U rack-mountable form factor integrates seamlessly into standard server racks, making it suitable for data closet or server room installations where space optimization is critical.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.73 inches in height, 17.50 inches in width, and 13.59 inches in depth. This standard form factor fits seamlessly into 19-inch server racks alongside other networking equipment. The 10.14-pound weight makes it manageable for installation in various environments from data centers to wiring closets.

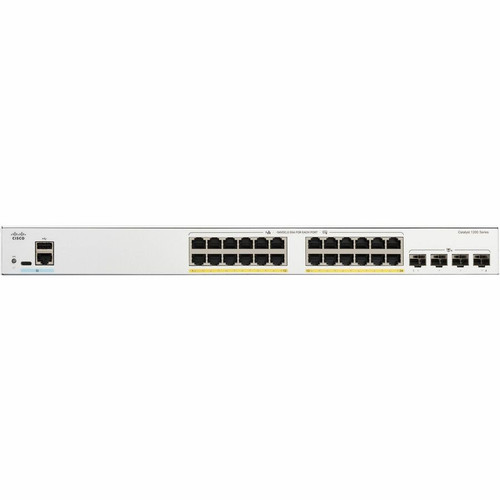

The fanless construction not only reduces noise but also minimizes points of failure for improved reliability in continuous operation scenarios. Front-panel port layout provides clear visibility of connection status, while the rugged metal chassis ensures durability in rack-mounted deployments.
- Width
- 17.50" (444.50 mm)
- Depth
- 13.59" (345.19 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.14 lb (4600 g)
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for powered devices
- 375W total PoE budget to run multiple IP phones, cameras, and access points
- Four 10 Gigabit SFP+ uplink slots for high-speed backbone connections
- Layer 3 switching capabilities for advanced routing and VLAN management
- Fanless design for quiet operation in office environments
- 1U rack-mountable form factor for standard server rack installation
- Comprehensive manageability through CLI, web interface, and SNMP
- Support for both fiber and copper connectivity options
- Refurbished condition with professional testing and restoration
- Compliance with IEEE 802.3af/at PoE standards and 802.1Q VLAN protocols
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1200-24FP-4X-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1200 |
| Product Model | C1200-24FP-4X |
| Product Name | Catalyst C1200-24FP-4X Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.11ac,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 437.40 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.59" (345.19 mm) |
| Weight (Approximate) | 10.14 lb (4600 g) |
User Manual
FAQ
How many devices can this switch power with PoE+?
The switch has 24 PoE+ ports with a total budget of 375W. This allows it to power multiple devices simultaneously, such as IP phones, wireless access points, and security cameras. The exact number depends on each device's power requirements, but with typical PoE+ devices drawing 15-30W, you can expect to power 12-24 devices at full capacity.
What types of uplink connections does this switch support?
This switch includes four SFP+ expansion slots that support 10 Gigabit Ethernet connections. These slots are compatible with both fiber optic and copper SFP+ transceivers, giving you flexibility in choosing uplink media based on distance requirements and existing infrastructure. The uplinks can connect to core switches, servers, or other network aggregation points.
What does Layer 3 switching capability provide?
Layer 3 switching enables the switch to perform basic routing functions between VLANs, implement access control lists (ACLs) for security, and support quality of service (QoS) policies. This allows for more efficient network designs by reducing the need for separate routers for inter-VLAN traffic while providing better traffic management and segmentation capabilities compared to Layer 2-only switches.
Is this switch suitable for rack mounting?
Yes, this switch has a standard 1U rack-mountable form factor that fits into 19-inch server racks. Its dimensions of 1.73" H × 17.50" W × 13.59" D are designed for compatibility with standard rack equipment. The front-mount design with included hardware makes installation straightforward in data closets or server rooms.
How is this refurbished switch different from a new one?
This refurbished switch has been professionally tested, cleaned, and restored to full working condition. It includes the same features and specifications as a new unit but at a lower cost. Refurbished Cisco equipment typically undergoes rigorous testing processes to ensure reliability, making it a cost-effective choice for organizations that need enterprise-grade performance without the premium of new hardware.
What management options are available for this switch?
The switch offers multiple management interfaces including command-line interface (CLI), web-based graphical interface, and SNMP for network monitoring. These tools provide control over configuration, VLAN setup, port management, security policies, and performance monitoring. The manageable nature of this switch makes it suitable for networks where IT staff need visibility and control over switching operations.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
