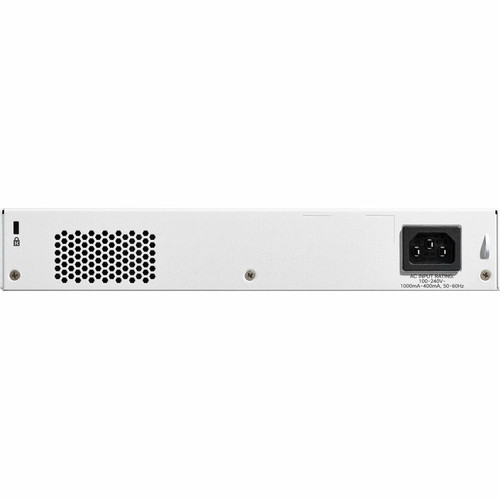

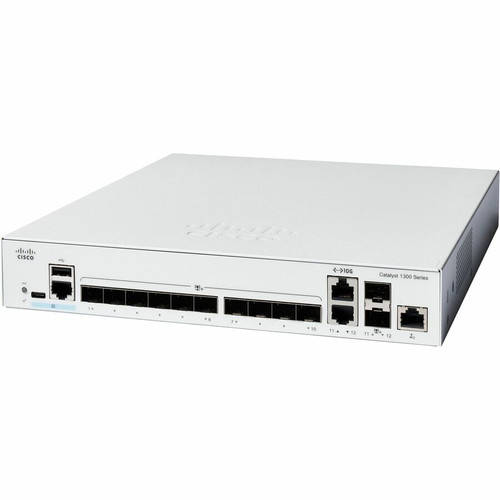

Cisco C1300-12XS-RF Catalyst C1300-12XS Layer 3 Switch - 2 Ports - 12 SFP+ Slots - 10GbE - Fanless - 1U Rack-Mountable - Refurbished
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, providing IP routing capabilities for scalable network design beyond basic switching. It supports 10 Gigabit Ethernet via both 10GBase-T for twisted-pair copper and 10GBase-X for optical fiber, with a maximum data transfer rate of 1.25 GB/s. The twelve SFP+ slots allow for high-density fiber or DAC connections, while the two integrated RJ-45 ports offer convenient copper uplinks or server connections. The fanless architecture eliminates moving parts, reducing failure points and enabling silent deployment in office or light industrial settings.
Managed through a full suite of protocols including IEEE 802.1Q for VLANs, 802.1x for security, and 802.3ad for link aggregation, it offers granular control over network traffic and policies. Power is supplied via an external adapter supporting 120-230V AC input, with typical consumption under 35 watts. The switch's physical dimensions—1.73" height, 10.69" width, and 10.56" depth—fit standard 19-inch racks, and its approximate weight of 5.49 pounds ensures easy handling during installation.
Key Product Advantages
The C1300-12XS delivers several distinct advantages for network architects and IT managers. Its hybrid port configuration balances fixed copper connectivity with extensive fiber expansion, allowing tailored uplink and server attachment strategies. The Layer 3 functionality enables inter-VLAN routing and basic QoS policies without requiring an external router, simplifying network topology and reducing latency for internal traffic.
Silent Operation
The fanless design ensures zero acoustic noise, making this switch suitable for deployment in open offices, classrooms, healthcare environments, or any location where quiet operation is essential. This also improves long-term reliability by eliminating fan failure as a point of maintenance.
- No moving parts reduces failure risk
- Ideal for noise-sensitive areas
- Lower total cost of ownership
Flexible Media Support
Support for both optical fiber and twisted pair cabling allows network designers to choose the optimal medium for each link—fiber for long-distance backbone connections, copper for short-run server or uplink attachments—all within the same switch chassis.
- Use SFP+ modules for fiber or DAC
- Built-in RJ-45 ports for copper
- Mix media types as needed
Deployment / Use Cases
This switch is ideally positioned for roles requiring high-speed aggregation, silent operation, and routing capabilities. In small to medium data centers, it can serve as a top-of-rack switch for server farms, providing 10GbE connectivity to servers via SFP+ while using the RJ-45 ports for out-of-band management or uplinks to core switches. Its Layer 3 features allow it to function as a distribution layer switch in collapsed core designs, handling inter-VLAN routing for multiple access switches.
For enterprise branch offices or campus networks, the C1300-12XS offers a compact, fanless solution for wiring closets where noise is a concern. It can aggregate traffic from multiple access switches over fiber uplinks, perform local routing to reduce WAN traffic, and provide PoE budgeting (via compatible SFP+ modules) for connected devices. In industrial or lab environments, its robust standards support and manageable nature make it suitable for segmented test networks or control system backbones.
Physical Profile
Encased in a standard 1U rack-mountable chassis, this switch measures 1.73 inches in height, 10.69 inches in width, and 10.56 inches in depth, fitting seamlessly into 19-inch equipment racks. The compact footprint optimizes rack space utilization, while the approximate weight of 5.49 pounds facilitates easy installation and handling. The fanless construction not only reduces noise but also minimizes dust intake, contributing to long-term reliability in diverse operating environments.
- Width
- 10.69" (271.53 mm)
- Depth
- 10.56" (268.22 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 5.49 lb (2490 g)
Highlights
- 12 SFP+ slots for high-density fiber or DAC connectivity
- 2 built-in RJ-45 ports for copper uplinks or server connections
- Layer 3 routing capabilities for scalable network design
- Fanless operation for silent deployment in office environments
- 10 Gigabit Ethernet support with 1.25 GB/s throughput
- 1U rack-mountable form factor for space-efficient installation
- Managed via comprehensive IEEE standards including 802.1Q and 802.1x
- Refurbished condition offering reliable performance at reduced cost
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1300-12XS-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-12XS |
| Product Name | Catalyst C1300-12XS Layer 3 Switch |
| Product Condition | Refurbished |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet SFP+ Expansion Slot,2 x 10BASE-T Gigabit Ethernet Network Port |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 12 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3x,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1ab,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 34.10 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10.69" (271.53 mm) |
| Depth | 10.56" (268.22 mm) |
| Weight (Approximate) | 5.49 lb (2490 g) |
User Manual
FAQ
What are the main port configurations on this Cisco switch?
This switch features two built-in RJ-45 ports for 10GBase-T copper connections and twelve SFP+ expansion slots for 10GBase-X fiber or Direct Attach Copper (DAC) modules. The SFP+ slots provide flexibility for high-speed uplinks or server attachments using optional transceivers, while the fixed copper ports offer convenient connectivity for shorter runs or management interfaces.
Does this switch support Layer 3 routing?
Yes, the Cisco Catalyst C1300-12XS operates at Layer 3, providing IP routing functionality. This allows it to perform inter-VLAN routing, implement basic access control lists (ACLs), and support routing protocols, enabling more scalable network designs without requiring a separate router for internal traffic.
Is this switch fanless, and what are the benefits?
Yes, this switch is fanless. The absence of cooling fans eliminates acoustic noise, making it suitable for deployment in quiet environments like offices, libraries, or healthcare settings. It also reduces mechanical failure points, lowers power consumption slightly, and minimizes dust accumulation inside the chassis, contributing to higher long-term reliability.
What rack size does this switch require for mounting?
This switch has a 1U form factor, meaning it occupies one rack unit of vertical space in a standard 19-inch equipment rack. Its dimensions are 1.73 inches in height, 10.69 inches in width, and 10.56 inches in depth, ensuring compatibility with common rack enclosures and easy integration into existing infrastructure.
What is the power consumption of this switch?
The typical power consumption is 34.10 watts. It uses an external power adapter that accepts input voltages of 120 V AC or 230 V AC, providing flexibility for different regional power standards. The low power draw contributes to energy efficiency and reduces operational costs in always-on deployments.
What does 'refurbished' mean for this Cisco switch?
Refurbished indicates this switch has been professionally inspected, tested, and restored to full working condition. It may show minor cosmetic signs of previous use but delivers the same performance and reliability as a new unit. This offers a cost-effective way to acquire enterprise-grade Cisco hardware with verified functionality and often includes a limited warranty.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
