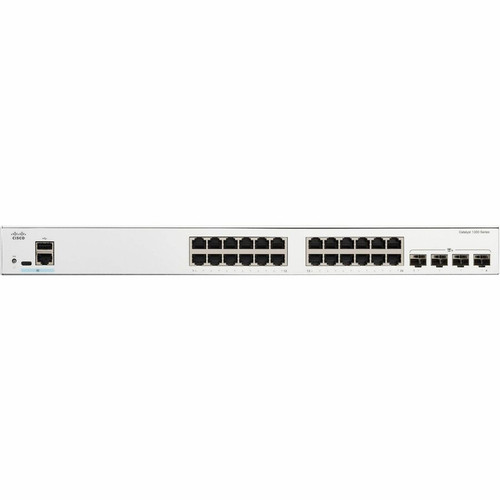

Cisco C1300-24T-4X-RF Catalyst 1300 Ethernet Switch - 24 Port Gigabit + 4 SFP+ Slots - Layer 3 Managed - 1U Rack-Mountable - Refurbished
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch provides 24 fixed Gigabit Ethernet ports for connecting end-user devices, servers, or access points, along with four SFP+ slots for 10 Gigabit uplinks. The SFP+ slots support both optical fiber and copper transceivers, offering flexibility for backbone connections or long-distance links. Layer 3 capabilities include static routing, RIP, and OSPF for scalable network segmentation and inter-VLAN routing.
The fanless design ensures silent operation, ideal for office environments or edge deployments where noise reduction is important. It supports a comprehensive set of networking standards, including IEEE 802.3af/at for PoE readiness (though no PoE budget is specified in this model), IEEE 802.1Q for VLANs, IEEE 802.1x for port-based authentication, and IEEE 802.3ad for link aggregation.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The C1300-24T-4X-RF combines enterprise-grade features with a compact, efficient footprint. Its Layer 3 functionality allows it to perform routing tasks, reducing the need for separate routers in smaller networks and simplifying network design. The four SFP+ slots provide ample high-speed connectivity for uplinks to core switches, servers, or storage, ensuring no bottlenecks in aggregated traffic.
High-Density Gigabit Access
With 24 Gigabit ports, this switch can connect a large number of devices in a single rack unit, maximizing port density and reducing physical footprint in crowded data cabinets.
- Ideal for office workstations
- Supports IP phones and cameras
- Connects access points and printers
Flexible Uplink Options
The four SFP+ slots allow customization with a mix of short-range or long-range fiber optics or copper transceivers, adapting to existing cabling infrastructure or future expansion needs.
- 10 GbE speeds for backbone
- Fiber for long-distance runs
- Copper for cost-effective links
Deployment / Use Cases
This switch is well-suited for environments requiring reliable, managed switching with growth potential. Its 1U rack-mount form factor and moderate power draw make it a fit for standard 19-inch server racks in wiring closets, small data centers, or branch offices.
Typical deployments include serving as a distribution layer switch in a three-tier network, aggregating traffic from multiple access switches and routing between VLANs. It can also act as a core switch for small businesses, connecting servers, storage, and internet gateways while providing inter-VLAN routing and basic security policies.
Branch Office Core
Deploy as the main switching and routing device in a remote office, connecting local users to centralized resources and providing secure segmentation between departments.
Campus Network Aggregation
Use to aggregate traffic from multiple access switches in a school or corporate campus, leveraging Layer 3 routing to manage traffic between buildings or floors efficiently.
Physical Profile
The switch measures 1.73 inches in height, 17.50 inches in width, and 9.45 inches in depth, fitting a standard 1U rack space. Its weight of approximately 6.13 pounds makes it easy to install and handle. The rack-mountable design includes front-accessible ports and rear power input, facilitating clean cable management in organized racks. The compact depth allows installation in shallow cabinets or wall-mounted racks where space is constrained.
- Width
- 17.50" (444.50 mm)
- Depth
- 9.45" (240.03 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 6.13 lb (2780 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connectivity
- 4 SFP+ slots supporting 10 Gigabit uplinks for high-speed backbone connections
- Layer 3 managed switch with advanced routing and security features
- Fanless design for silent operation in office environments
- 1U rack-mountable form factor for standard server rack installation
- Supports dual voltage input (120V/230V AC) for global deployment flexibility
- Comprehensive IEEE standards support including 802.1Q, 802.1x, and 802.3ad
- Refurbished condition offering enterprise performance at a reduced cost
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C1300-24T-4X-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-24T-4X |
| Product Name | Catalyst C1300-24T-4X Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network Port,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3az,IEEE 802.3ad,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.11ac,IEEE 802.1Q,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 27.25 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 9.45" (240.03 mm) |
| Weight (Approximate) | 6.13 lb (2780 g) |
User Manual
FAQ
What are the main port configurations on this Cisco switch?
This Cisco Catalyst C1300-24T-4X-RF switch has 24 fixed Gigabit Ethernet ports (10/100/1000Base-T) for connecting end devices, plus four SFP+ expansion slots that support 10 Gigabit Ethernet uplinks. The SFP+ slots can be populated with optical fiber or copper transceivers, providing flexibility for high-speed backbone connections.
Does this switch support Power over Ethernet (PoE)?
The specifications list support for IEEE 802.3af and 802.3at standards, indicating PoE readiness, but no specific PoE budget or wattage is provided. For PoE deployment, verify the exact power output per port and total budget with additional documentation or manufacturer specifications to ensure compatibility with PoE devices like IP phones or cameras.
What management features does this Layer 3 switch offer?
As a Layer 3 managed switch, it supports advanced features including static routing, RIP, OSPF, VLANs (IEEE 802.1Q), port-based authentication (IEEE 802.1x), link aggregation (IEEE 802.3ad), and quality of service (IEEE 802.1p). These features allow for scalable network design, security policies, traffic prioritization, and efficient bandwidth utilization.
How is this refurbished switch different from a new one?
This refurbished Cisco switch has been professionally tested, cleaned, and restored to full working condition, often including replacement of worn components. It offers the same performance and features as a new unit but at a lower cost, making it a cost-effective choice for budget-conscious deployments without sacrificing enterprise-grade reliability.
What are the physical dimensions and rack compatibility?
The switch measures 1.73" H x 17.50" W x 9.45" D and weighs approximately 6.13 lb. It is designed for 1U rack mounting in standard 19-inch server racks, with front-accessible ports and rear power input for organized cable management in data cabinets or wiring closets.
What type of uplink options are available with the SFP+ slots?
The four SFP+ slots support 10 Gigabit Ethernet connections using a variety of transceivers, including SFP+ SR (short-range fiber), LR (long-range fiber), or copper DAC (direct attach cable) modules. This allows customization for distance, media type, and cost, enabling connections to core switches, servers, or storage over fiber or copper.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
