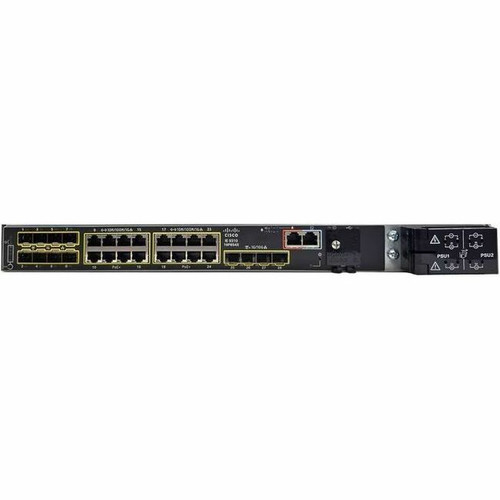

Cisco Catalyst IE-9310-16P8S4X Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, - (IE-9310-16P8S4X-E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Data Link Protocols: HTTP,HTTPs
Features: Fanless,Access Control List,Unicast Storm Control,VLAN Segmentation,Zero-Touch Provisioning (ZTP),DHCP Snooping,Dynamic ARP Inspection,Shock/Vibration Stability,Broadcast Storm Control
Total Number of Network Ports: 16
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet Expansion Slot,4 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Optical Fiber,Twisted Pair
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T,1000Base-X,10GBase-X
Maximum Data Transfer Rate: 1.25 GB/s
Total Number of Expansion Slots: 12
Expansion Slot Type: SFP,SFP+
Number of SFP Slots: 8
Number of SFP+ Slots: 4
Layer Supported: 3
Networking Standards: IEEE 802.1ae,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.3ad,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z,IEEE 802.1BA,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 300 W
Power Source: Power Supply,AC/DC
Redundant Power Supply Supported: Yes
Power Consumption: 105 W
Compatible Rack Unit: 1U
Form Factor: Rack-mountable,Compact
Height: 1.72" (43.69 mm)
Width: 17.50" (444.50 mm)
Depth: 14" (355.60 mm)
Weight (Approximate): 10.60 lb (4808.08 g)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 5 Year
- Cascade to other network devices through the uplink port to expand your local area network
- Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
[custom-specifications]
| Specifications | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IE-9310-16P8S4X-E |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | IE9300 |
| Product Model | IE-9310-16P8S4X |
| Product Name | Catalyst IE-9310-16P8S4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Data Link Protocols | HTTP,HTTPs |
| Features | Fanless,Access Control List,Unicast Storm Control,VLAN Segmentation,Zero-Touch Provisioning (ZTP),DHCP Snooping,Dynamic ARP Inspection,Shock/Vibration Stability,Broadcast Storm Control |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet Expansion Slot,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 12 |
| Expansion Slot Type | SFP,SFP+ |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ae,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.3ad,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z,IEEE 802.1BA,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 300 W |
| Power Source | Power Supply,AC/DC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 105 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Compact |
| Height | 1.72" (43.69 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14" (355.60 mm) |
| Weight (Approximate) | 10.60 lb (4808.08 g) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
