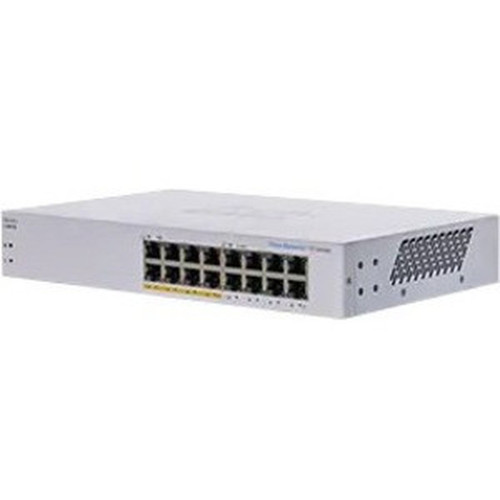

Cisco CBS110-16PP-NA 110 Series Ethernet Switch - 16 Port Gigabit PoE - 64W Budget - Layer 2 - Desktop/Wall/Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Cisco CBS110-16PP-NA supports Gigabit Ethernet over twisted pair cabling (10/100/1000Base-T), delivering data transfer speeds up to 1000 Mbps per port. Its Layer 2 switching capabilities include IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring, and spanning tree protocol for loop prevention in redundant setups.
The switch features a built-in power supply with a total PoE budget of 64 watts, distributed across eight PoE-enabled ports. This allows simultaneous power delivery to devices like VoIP phones, security cameras, or access points without external power adapters. Power consumption is rated at 11.41 watts under typical load, contributing to lower operational costs and reduced heat output.
Relevant factors for this section include Total Number of Network Ports, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Cisco CBS110-16PP-NA simplifies network expansion with its straightforward deployment and robust feature set. Its combination of PoE and non-PoE ports offers flexibility for mixed-device environments, while the low power consumption and multiple mounting options ensure adaptability to various installation scenarios.
PoE Readiness
Eight PoE ports with a 64W total budget eliminate the need for separate power sources for compatible devices, streamlining installations and reducing cable clutter.
- Supports IEEE 802.3af/at devices
- Enables single-cable power and data
Deployment Flexibility
The switch can be placed on a desktop, mounted on a wall, or installed in a rack using the included mounting kit, accommodating space-constrained or organized setups.
- Includes mounting hardware
- Compact footprint saves space
Energy Efficiency
With a power consumption of just 11.41 watts, the switch operates coolly and cost-effectively, making it suitable for always-on environments without significant energy overhead.
- Low heat output
- Reduces electricity costs
Deployment / Use Cases
The Cisco CBS110-16PP-NA is ideal for small business networks, retail point-of-sale systems, and home office setups where reliable wired connectivity is essential. Its unmanaged nature makes it perfect for users who need a quick, hassle-free solution without advanced networking knowledge.
In retail environments, the switch can connect cash registers, inventory scanners, and security cameras, with PoE ports powering cameras or VoIP phones directly. For home offices, it provides a stable backbone for computers, network-attached storage, and gaming consoles, ensuring high-speed data transfers and reduced latency.
Small Office Networking
Deploy this switch to connect up to 16 devices, including computers, printers, and IP phones, with PoE support simplifying installation for voice and video endpoints.
Surveillance and IoT
Use the PoE ports to power IP cameras and sensors, creating a centralized network for security systems or smart building applications without separate power runs.
Physical Profile
The Cisco CBS110-16PP-NA measures 1.73 inches in height, 10.98 inches in width, and 6.69 inches in depth, with a weight of approximately 2.87 pounds. Its slim profile and lightweight design allow for discreet placement on desktops or easy integration into rack cabinets. The switch includes pre-drilled mounting holes and compatible hardware for wall or rack installation, offering a clean, organized appearance in professional settings.
- Width
- 10.98" (279 mm)
- Depth
- 6.69" (170 mm)
- Height
- 1.73" (44 mm)
- Weight
- 2.87 lb (1300 g)
What's in the Box
The package includes all necessary components for immediate setup and deployment.
Highlights
- 16-port Gigabit Ethernet switch with 8 PoE and 8 non-PoE ports
- 64W total PoE budget for powering devices like IP phones and cameras
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree
- Unmanaged design for plug-and-play operation without configuration
- Supports 10/100/1000Base-T over twisted pair cabling
- Desktop, wall, or rack-mountable form factor with included mounting kit
- Low power consumption at 11.41 watts for energy efficiency
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS110-16PP-NA |
| Brand Name | Cisco |
| Product Series | 110 |
| Product Model | CBS110-16PP |
| Product Name | 110 CBS110-16PP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 64 W |
| Power Source | Power Supply |
| Power Consumption | 11.41 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 10.98" (279 mm) |
| Depth | 6.69" (170 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Miscellaneous | |
| Package Contents | 110 CBS110-16PP Ethernet Switch Power Cord or Adapter Quick Start Guide Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many PoE ports does this switch have, and what is the total PoE budget?
The Cisco CBS110-16PP-NA includes eight PoE-enabled Gigabit Ethernet ports with a total PoE budget of 64 watts. This budget is shared across all PoE ports, allowing you to power compatible devices such as IP phones, wireless access points, or security cameras directly through the network cable without separate power adapters.
Is this switch managed or unmanaged, and what features does it support?
This is an unmanaged Layer 2 switch, meaning it operates plug-and-play with no configuration required. It supports essential Layer 2 features including IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring, and spanning tree protocol to prevent loops in network topologies.
What are the mounting options for this Ethernet switch?
The Cisco CBS110-16PP-NA offers three mounting options: desktop placement, wall mounting, and rack-mountable installation. The package includes a mounting kit with necessary hardware, and the switch's compact dimensions (1.73" H x 10.98" W x 6.69" D) make it suitable for space-constrained environments like small offices or retail counters.
What type of cables and network speeds does this switch support?
This switch supports Gigabit Ethernet (10/100/1000Base-T) over standard twisted pair cabling, such as Cat5e, Cat6, or Cat6a. It delivers data transfer speeds up to 1000 Mbps per port and is compatible with cables up to 100 meters in length, ensuring reliable high-speed connectivity for wired devices.
What is the power consumption of this switch, and does it include a power supply?
The switch has a power consumption of 11.41 watts under typical operation, contributing to low energy costs and minimal heat output. It includes a built-in power supply and comes with a power cord or adapter in the box, providing everything needed for immediate deployment without additional purchases.
What warranty coverage is provided with this Cisco switch?
The Cisco CBS110-16PP-NA comes with a lifetime limited warranty, offering long-term protection against defects in materials and workmanship. This warranty underscores the product's reliability and Cisco's commitment to quality, making it a dependable choice for business and home networking applications.
