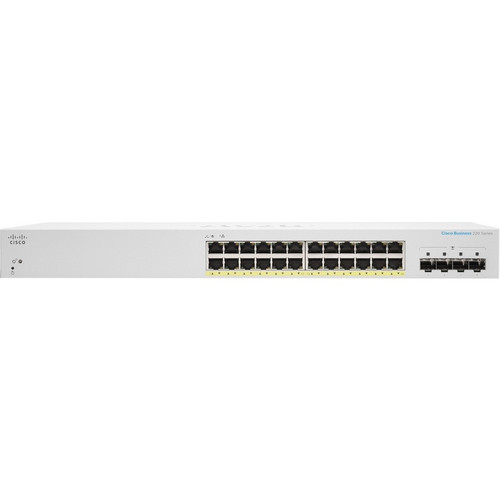

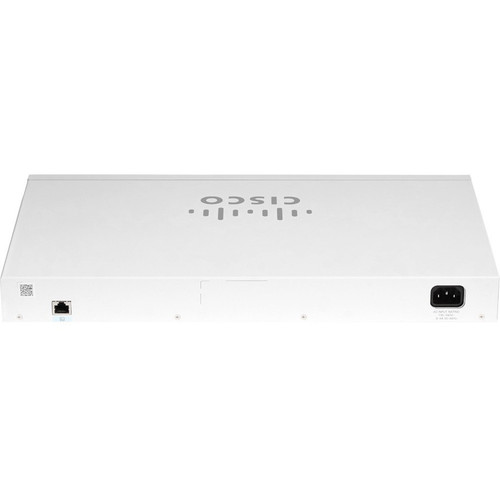

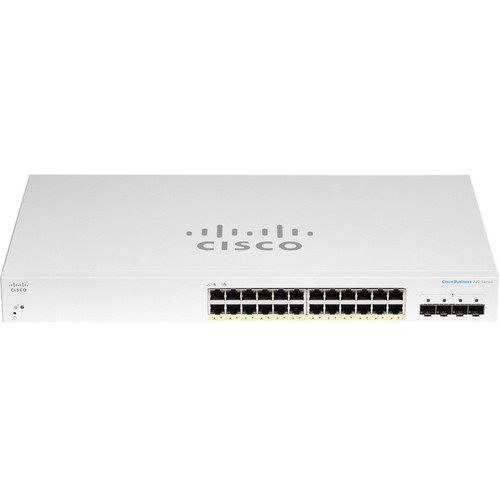

Cisco CBS220-24P-4X-NA 24-Port Gigabit PoE+ Managed Switch - 195W PoE Budget - 4 SFP+ Uplinks - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a fully manageable Layer 2 device, supporting essential switching protocols for efficient network segmentation and traffic prioritization. The 24 Gigabit Ethernet ports are all PoE+ capable, adhering to the IEEE 802.3at standard to deliver up to 30 watts per port, suitable for powering a wide range of PoE devices. The integrated power supply ensures stable voltage delivery across all connected components, with a total system power consumption of 37.60 watts under typical operating conditions.
For expansion, the switch features four dedicated SFP+ slots that support 10 Gigabit Ethernet connections via optical fiber or twisted pair media, providing flexibility for high-speed backbone or uplink requirements. The switch supports both 10/100/1000Base-T copper and 10GBase-X fiber technologies, allowing seamless integration into mixed-media network environments. The modular design facilitates easy upgrades and maintenance, while the rack-mountable form factor ensures tidy installation in standard 19-inch racks.
Key Product Advantages
The Cisco CBS220-24P-4X stands out with its balanced combination of PoE power, uplink scalability, and managed features, making it an ideal choice for growing business networks. The high 195-watt PoE budget ensures ample power for multiple PoE devices simultaneously, reducing the need for additional power injectors and simplifying cabling. The four SFP+ slots offer 10x faster connectivity than standard Gigabit Ethernet, enabling high-performance uplinks that prevent bottlenecks in data-intensive applications.
Comprehensive PoE Support
All 24 ports deliver PoE+ power, supporting devices like IP cameras, VoIP phones, and wireless APs with up to 30W per port, streamlining deployment and reducing infrastructure costs.
- IEEE 802.3at compliant
- 195W total budget
- Eliminates separate power supplies
High-Speed Uplink Flexibility
Four SFP+ slots provide 10GbE connectivity options for fiber or copper uplinks, ensuring scalable backbone connections and future-proof network expansion.
- 10GBase-X support
- Optical fiber or twisted pair media
- Reduces congestion in core links
Enterprise-Grade Management
Layer 2 managed capabilities allow for VLAN configuration, QoS policies, and security settings, giving administrators precise control over network traffic and performance.
- VLAN support for segmentation
- Traffic prioritization with QoS
- Enhanced network security features
Deployment / Use Cases
This switch is well-suited for office environments, retail locations, and small business networks where reliable PoE and managed switching are required. It efficiently supports VoIP telephony systems by powering IP phones and providing quality voice traffic handling through QoS features. In surveillance setups, it can power multiple IP cameras while offering high-bandwidth uplinks for video streaming to network video recorders.
For wireless networking deployments, the switch powers wireless access points across its PoE+ ports, ensuring consistent Wi-Fi coverage without separate power outlets. The rack-mountable design makes it ideal for installation in server rooms or network closets, where organized cabling and space efficiency are priorities. Its modular expansion slots allow integration into fiber-based network backbones, supporting connections between floors or buildings in campus environments.
Physical Profile
The switch features a compact, rack-mountable design with dimensions of 1.73 inches in height, 17.32 inches in width, and 10.12 inches in depth (44 x 440 x 257 mm), occupying minimal rack space while providing full port density. Its weight of approximately 8.88 pounds (4030 grams) ensures stable mounting in standard 19-inch racks. The built-in mounting kit facilitates secure installation, helping organize cables and maintain a professional, clutter-free network environment.
- Width
- 17.32" (440 mm)
- Depth
- 10.12" (257 mm)
- Height
- 1.73" (44 mm)
- Weight
- 8.88 lb (4030 g)
What's in the Box
The package includes all essential components for immediate deployment and setup.
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for powering devices directly
- 195-watt total PoE budget to handle multiple PoE devices simultaneously
- Four 10 Gigabit Ethernet SFP+ expansion slots for high-speed uplinks
- Layer 2 managed switching with VLAN, QoS, and security features
- Rack-mountable design for organized installation in server rooms
- Supports both optical fiber and twisted pair media for flexible connectivity
- Modular construction for easy maintenance and future upgrades
- Built-in power supply ensures stable voltage delivery to all components
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS220-24P-4X-NA |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 220 |
| Product Model | CBS220-24P-4X |
| Product Name | Business CBS220-24P-4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 195 W |
| Power Source | Power Supply |
| Power Consumption | 37.60 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 10.12" (257 mm) |
| Weight (Approximate) | 8.88 lb (4030 g) |
| Miscellaneous | |
| Package Contents | Business CBS220-24P-4X Ethernet Switch Power Cord Mounting Kit Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many PoE devices can this switch power simultaneously?
The Cisco CBS220-24P-4X provides a total PoE budget of 195 watts across its 24 PoE+ ports. Each port can deliver up to 30 watts under the IEEE 802.3at standard. The actual number of devices depends on their individual power requirements; for example, it could power around 6-8 typical IP phones (each using ~15W) or 4-5 wireless access points (each using ~30W) simultaneously without exceeding the budget.
What types of uplink connections are supported by the SFP+ slots?
The four SFP+ slots support 10 Gigabit Ethernet connections using either optical fiber or twisted pair media. They are compatible with 10GBase-X technology, allowing for high-speed uplinks to servers, core switches, or fiber network backbones. You can use SFP+ transceivers for fiber optic cables or 10GBASE-T modules for copper connections, providing flexibility based on your existing infrastructure.
Is this switch manageable, and what features does it offer?
Yes, this is a fully manageable Layer 2 switch. It supports essential management features such as VLAN configuration for network segmentation, Quality of Service (QoS) for prioritizing critical traffic like voice or video, and security settings like port security and access control lists. These capabilities allow network administrators to optimize performance, enhance security, and maintain control over business network operations.
What are the physical dimensions and rack mounting details?
The switch measures 1.73 inches in height, 17.32 inches in width, and 10.12 inches in depth (44 x 440 x 257 mm), making it a compact 1U rack-mountable device. It weighs approximately 8.88 pounds (4030 grams). The included mounting kit allows for secure installation in standard 19-inch racks, facilitating organized cable management and professional deployment in server rooms or network closets.
Does this switch support both copper and fiber connections?
Yes, the switch supports both copper and fiber connections. The 24 Gigabit Ethernet ports use twisted pair copper cables (10/100/1000Base-T) for connections up to 100 meters. The four SFP+ slots support optical fiber media (10GBase-X) for high-speed uplinks, allowing integration into fiber-based network segments. This dual-media support provides flexibility for mixed network environments.
What is the power consumption and warranty for this switch?
The switch has a power consumption of 37.60 watts under typical operating conditions, contributing to energy-efficient network operations. It comes with a 3-year limited warranty from Cisco, covering defects in materials and workmanship. Additionally, the product is environmentally compliant with the Waste Electrical and Electronic Equipment Directive (WEEE), ensuring responsible disposal practices.
